Symptom Related Diagnostic Procedures

Spark Plug Condition Inspection Purpose
Inspecting spark plugs condition, can determine whether problem is related to a specific cylinder possibly all cylinders.

Procedure
1. Remove the spark plug.
2. Inspect spark plug condition.
3. Go to appropriate troubleshooting chart for further information.

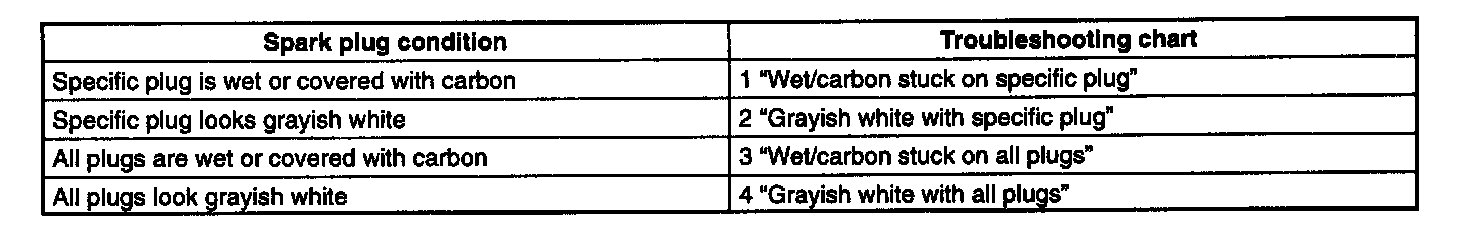

Spark Plug Condition:

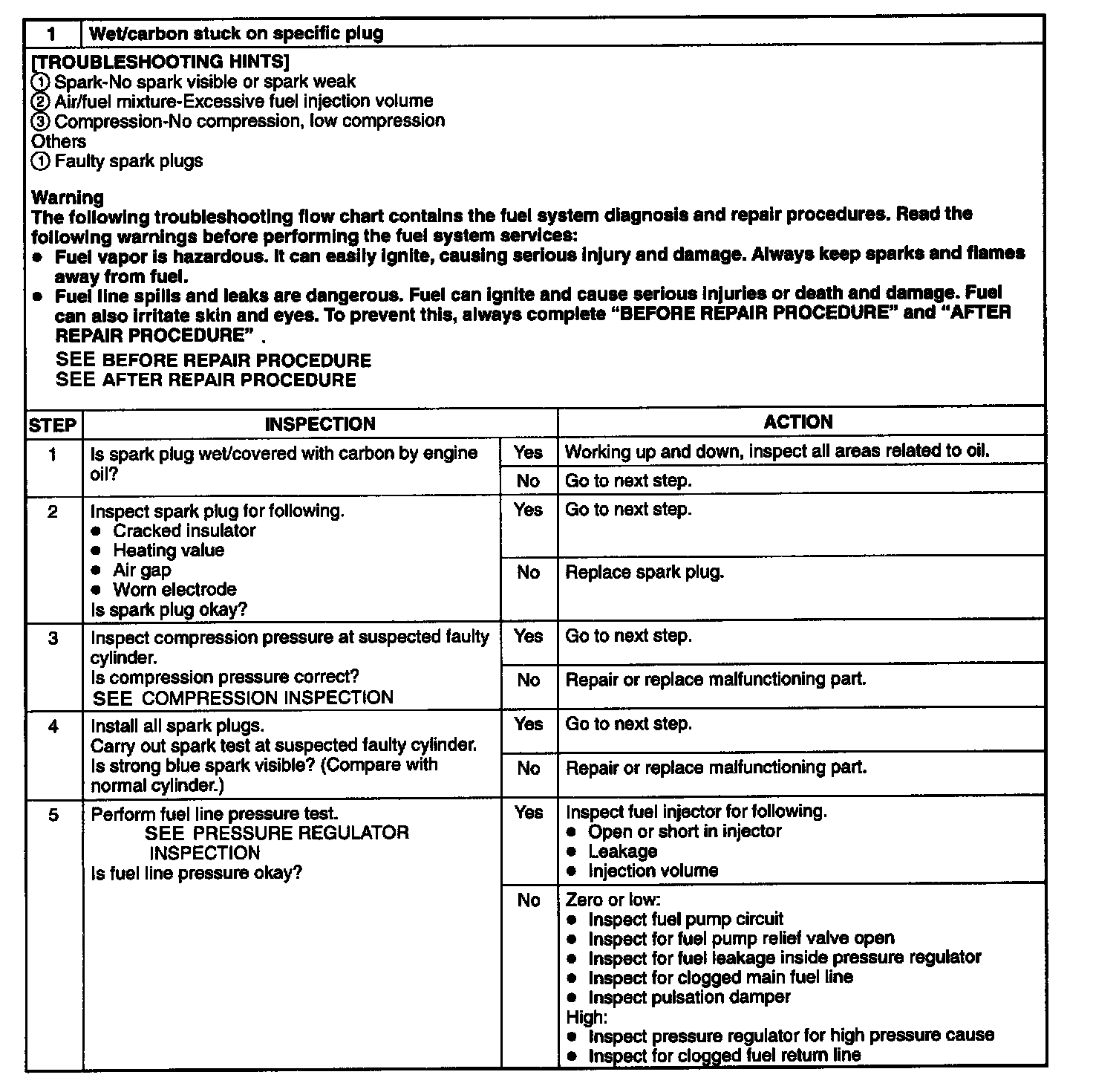

1. Wet/carbon Stuck On Specific Plug (Step 1 To 5):

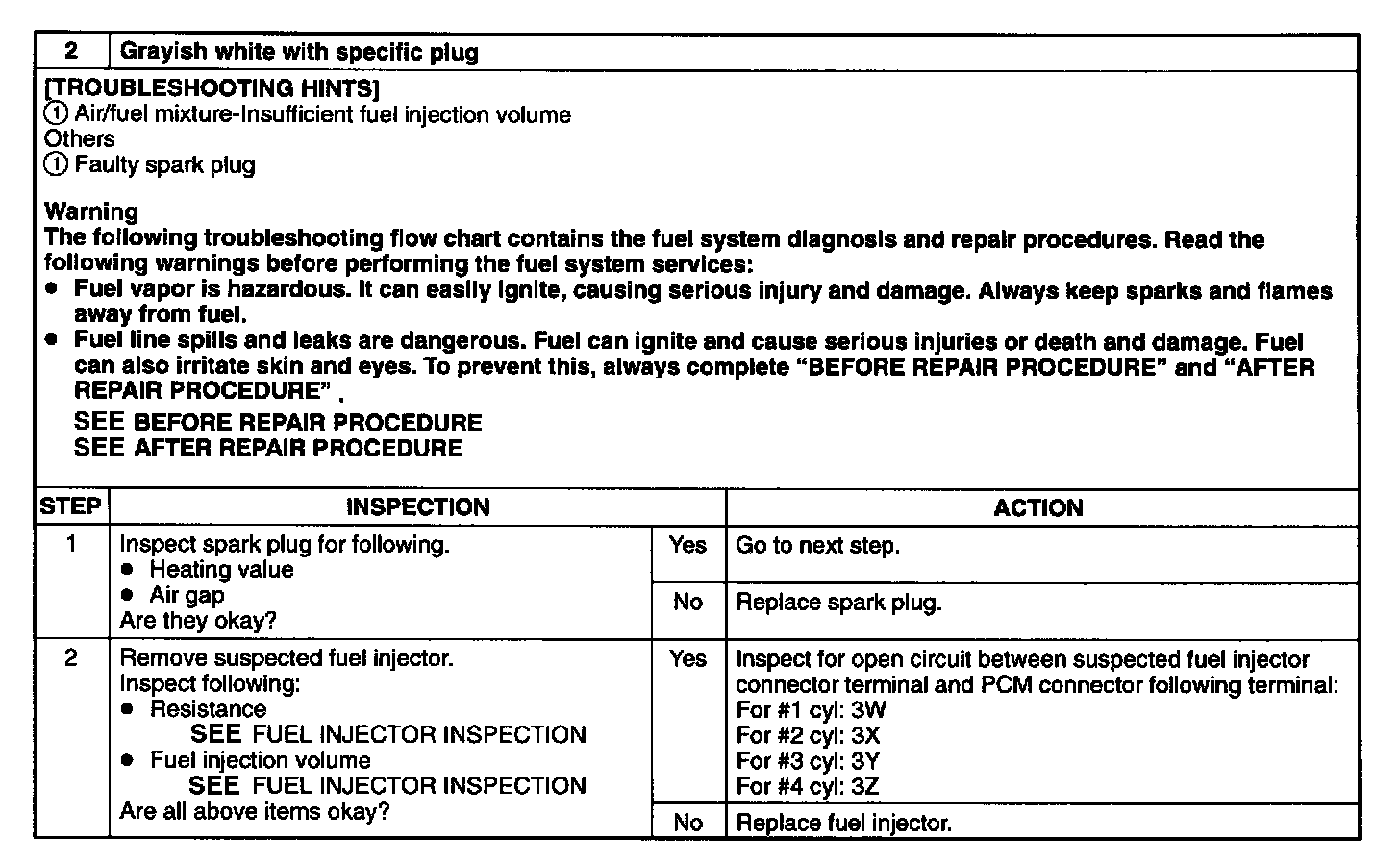

2. Grayish White With Specific Plug (Step 1 To 2):

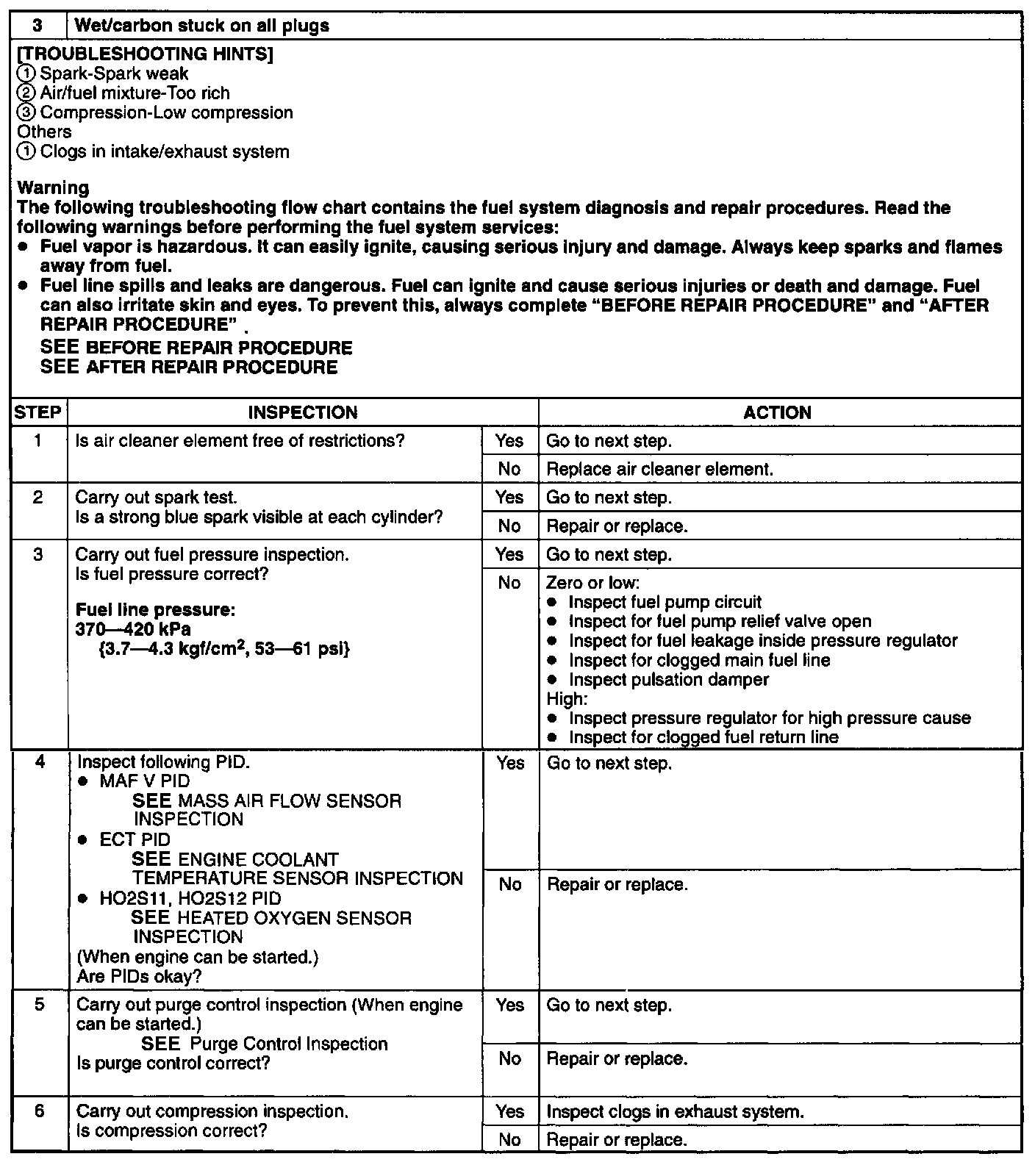

3. Wet/carbon Stuck On All Plugs (Step 1 To 6):

4. Grayish White With All Plugs (Step 1 To 2):
