With 2.3L Engine
CRUISE ACTUATOR INSPECTION 1.
Disconnect the cruise actuator connector.
KJ (2.3L):
2.

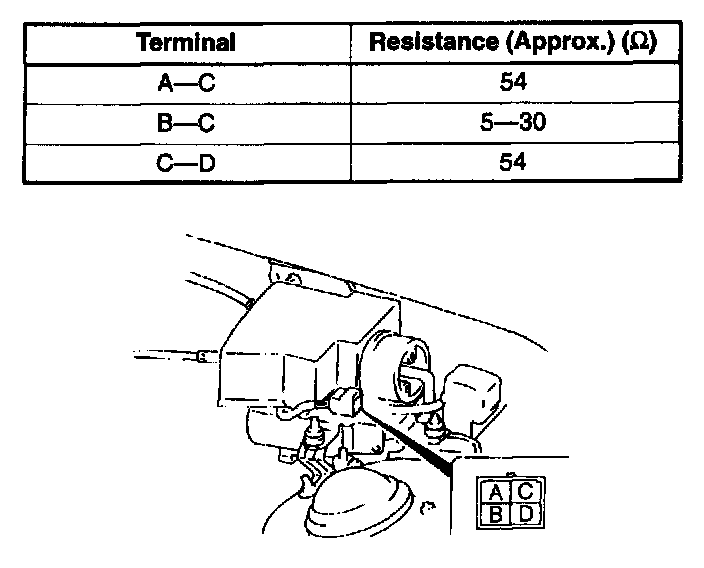

Measure the resistance between the cruise actuator terminals.
KJ (2.3L):
3.

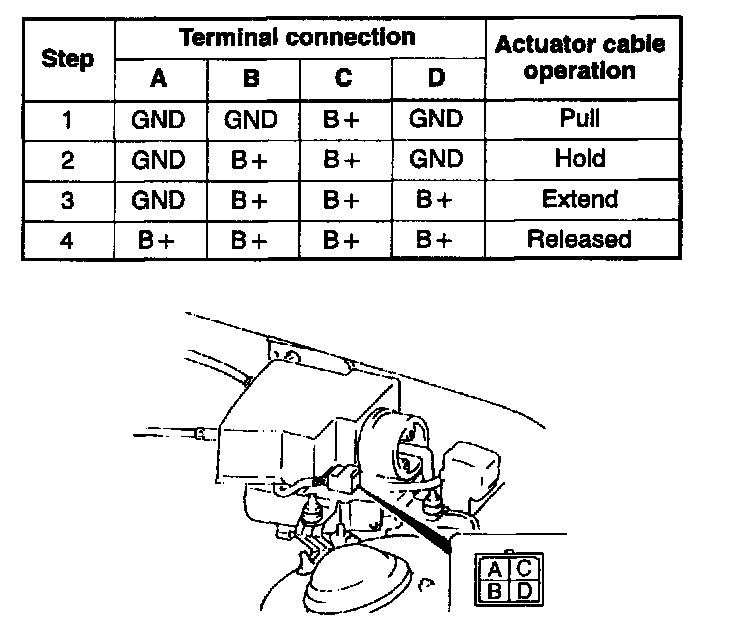

Connect the battery positive voltage and verify the operation of the actuator cable as indicated below.
4.
If not as specified, replace the cruise actuator.
