Cruise Control Switch: Service and Repair

CRUISE CONTROL SWITCH REMOVAL/INSTALLATION

WARNING: Handling the air bag module improperly can accidently deploy the air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS, before handling the air bag module. (Refer to AIR BAG SYSTEM SERVICE WARNINGS.)

1. Remove the driver-side air bag module.

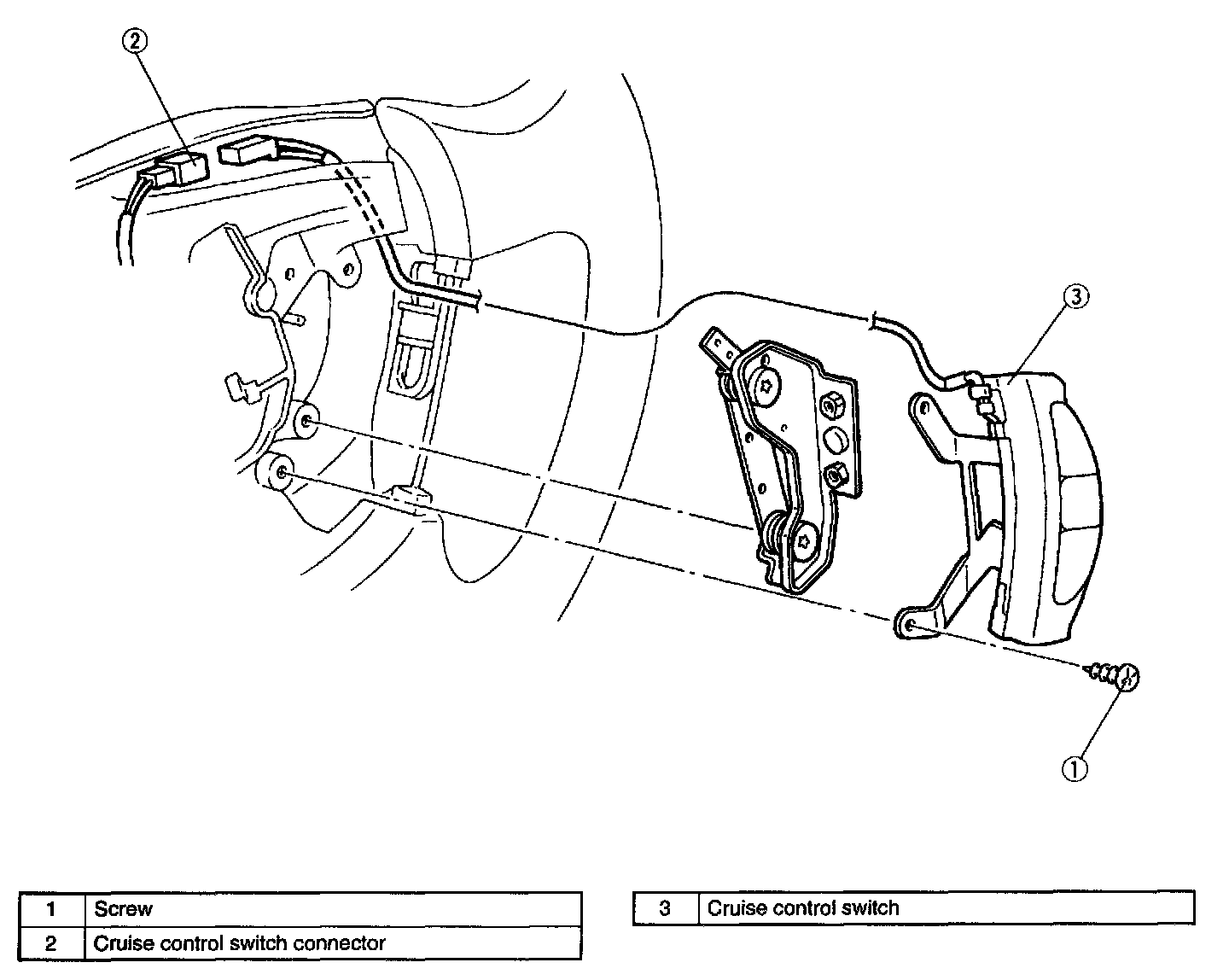

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
