Compressor Clutch Relay: Testing and Inspection

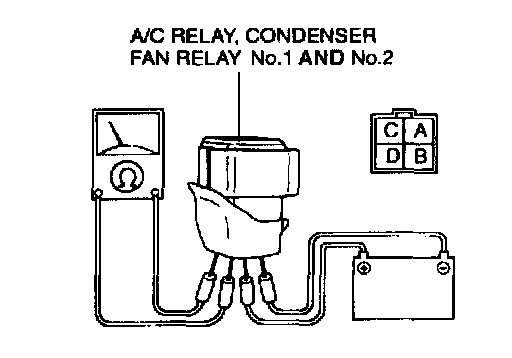

A/C RELAY, CONDENSER FAN RELAY No.1 AND No.2 INSPECTION 1.
Remove the
relay.
2.
Check for no continuity between terminals C and D of the
relay connector (male).
3.
Connect battery positive voltage to terminal A and ground to terminal B of the
relay connector (male).
4.
Check for continuity between terminals C and D.
5.
If not as specified, replace the
relay.
