Compressor Clutch: Testing and Inspection

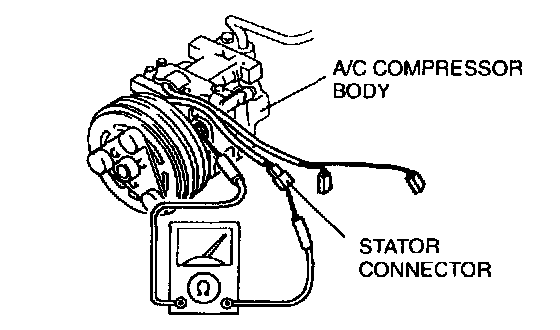

MAGNETIC CLUTCH INSPECTIONStator 1.
Disconnect the stator connector.
2.
Set the ohmmeter to the
x 1000 ohms range.
3.
Verify that there is continuity between the stator connector (male) and
A/C compressor body.
4.
It there is no continuity, replace the stator.
