Ignition Cable: Testing and Inspection
1.

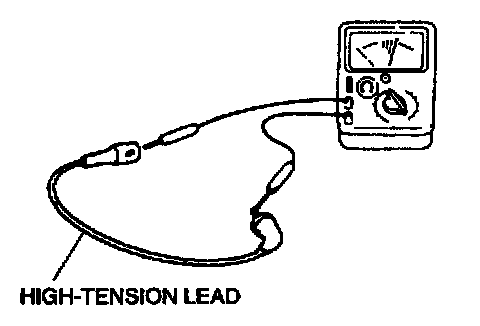

Measure the resistance of the
high-tension leads.
Specification No.1 lead:
12 - 29 kOhm No.2 lead:
7 - 18 Ohm No.3 lead:
12 - 30 Ohm No.4 lead:
5 - 13 Ohm No.5 lead:
13 - 32 Ohm No.6 lead:
4 - 11 kOhm 2.
If not as specified, replace the high-tension lead.
