Symptom Related Diagnostic Procedures
TROUBLE JUDGEMENT BY SPARK PLUG CONDITIONS PURPOSE By checking condition of the
spark plugs, judgement whether problem is related to a specific cylinder or all cylinders is possible.
PROCEDURE 1.
Remove the
spark plug.
2.
Check condition of the
spark plug.
3.

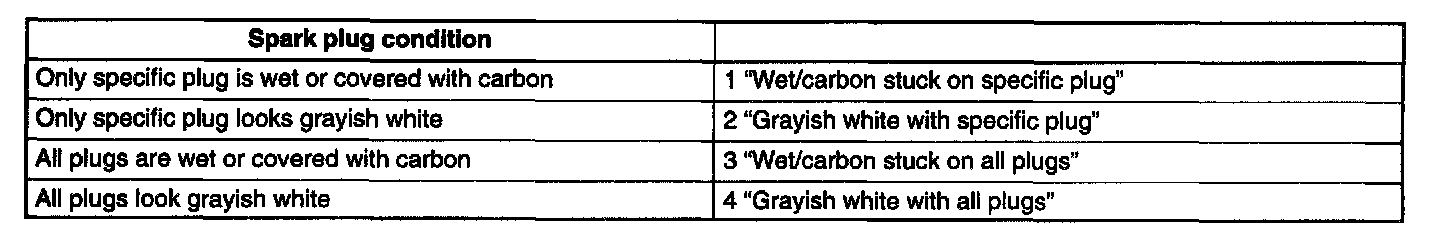

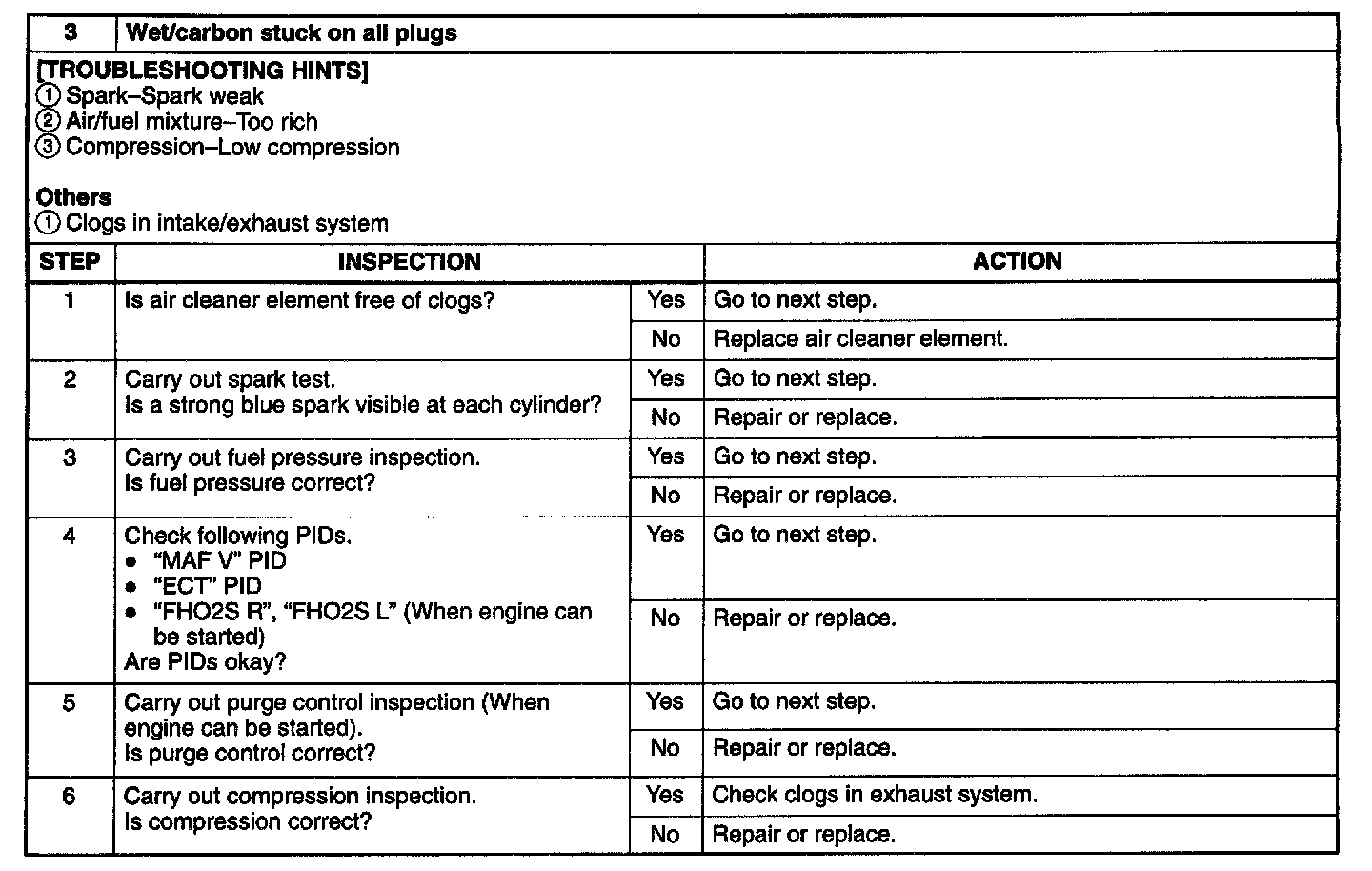

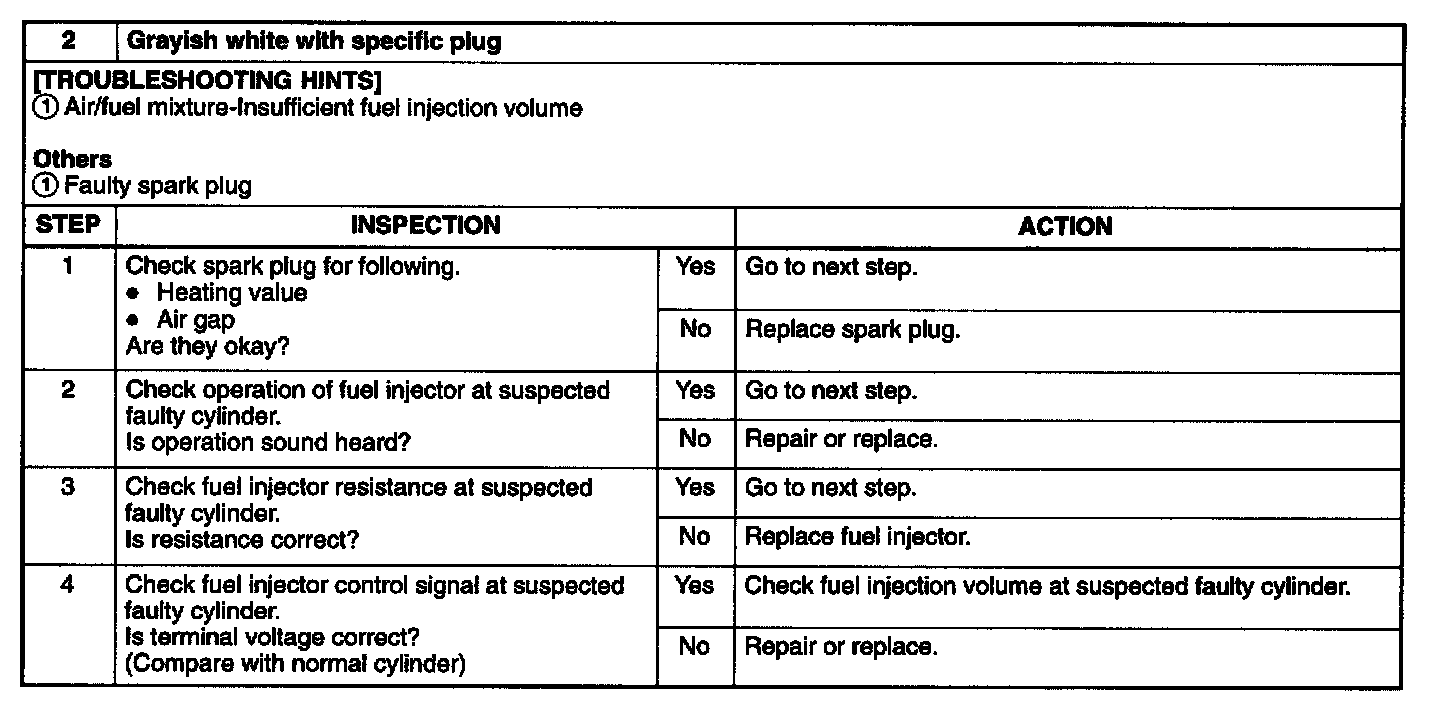

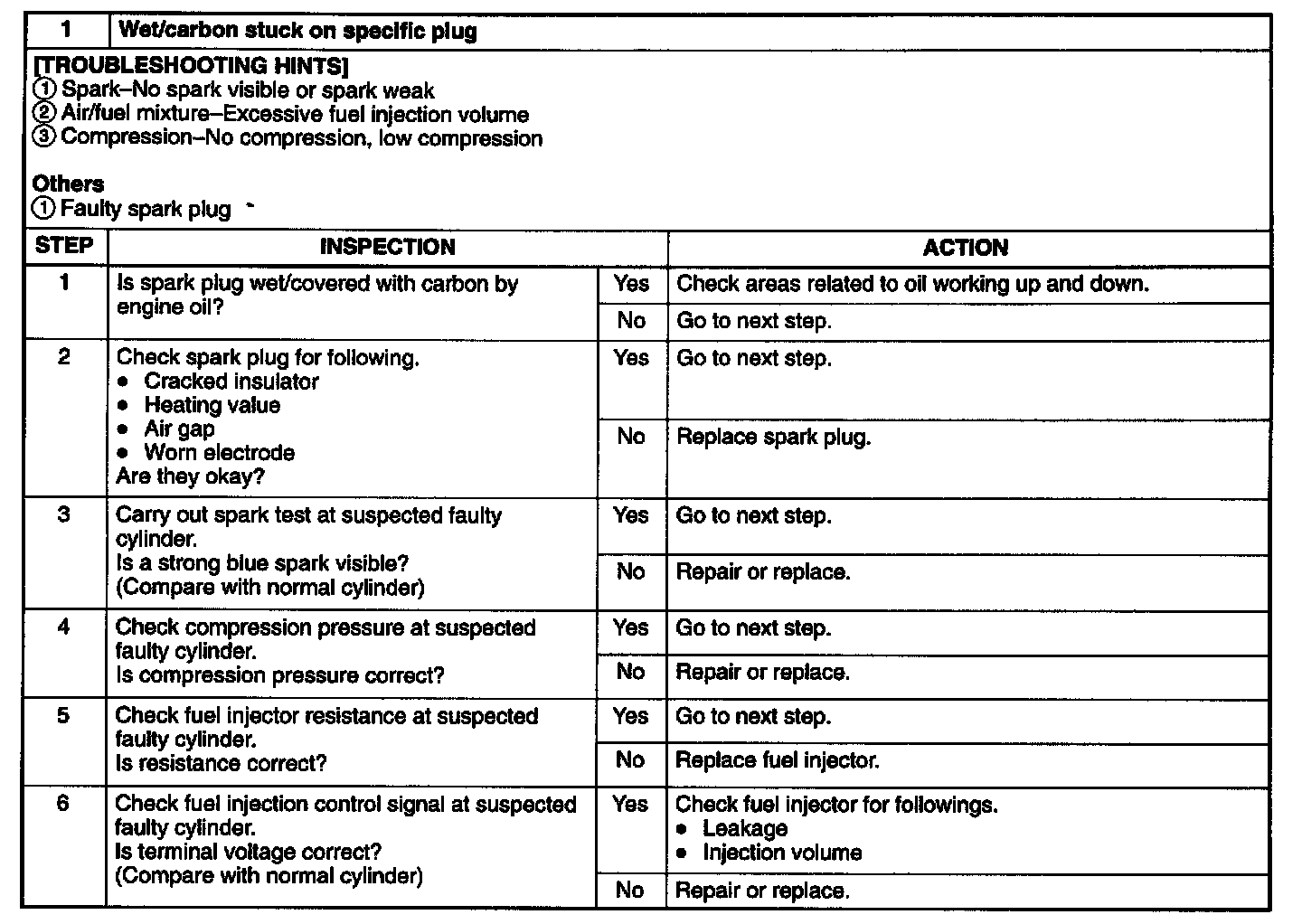

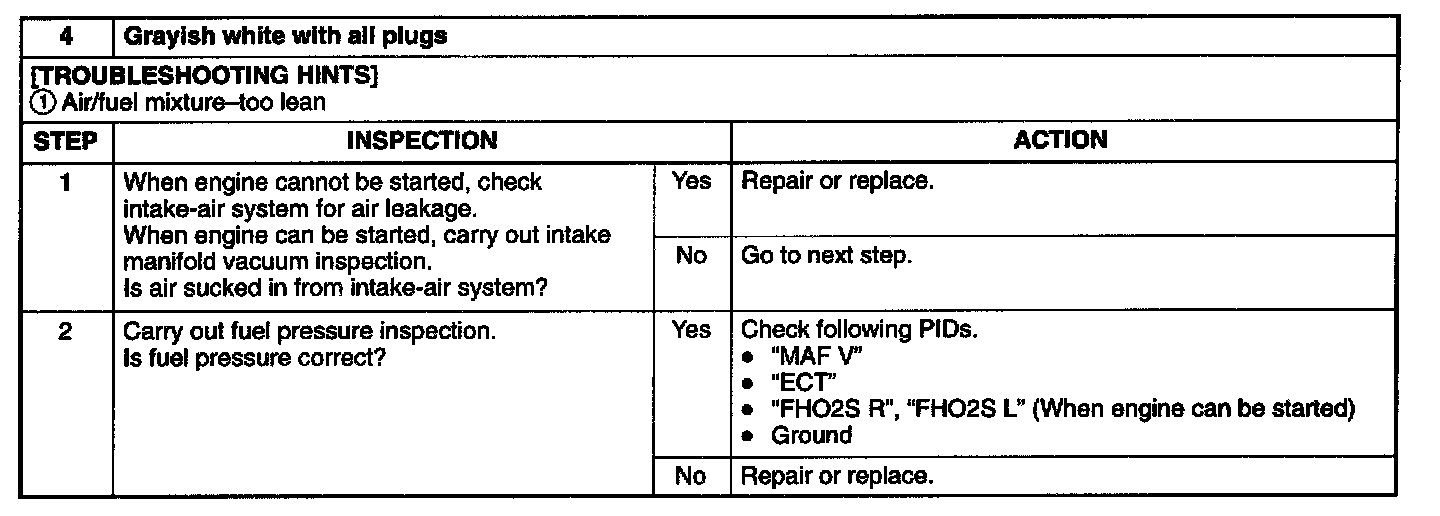

Go to appropriate troubleshooting chart referring to the list below.
