Ignition System Inspection
1.
Remove the
fuel pump relay from main fuse block.
2.
Check condition of connector, and
high-tension leads.
3.

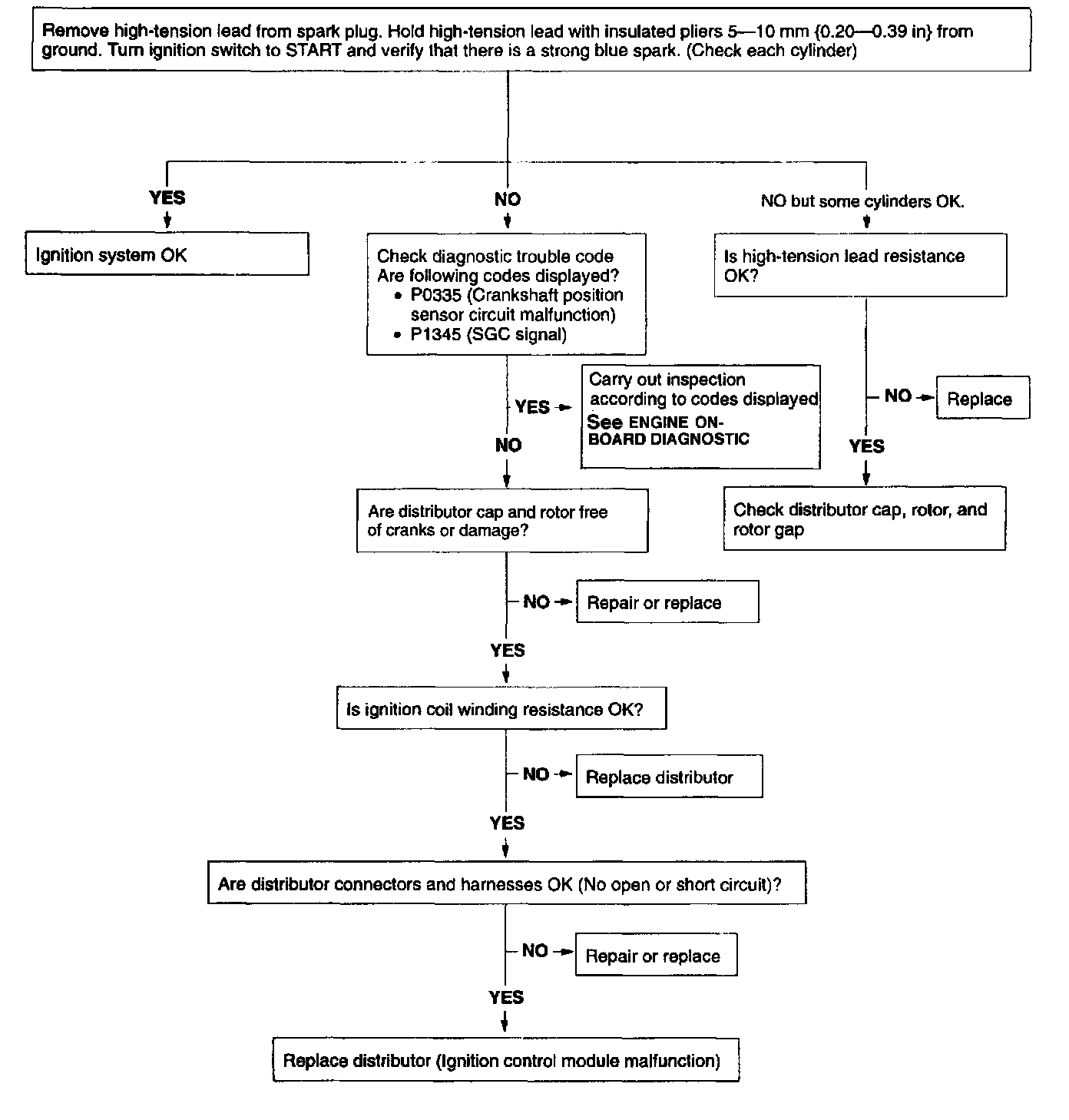

Inspect the
ignition system according to the procedure.
WARNING: High voltage in the Ignition system can cause strong electrical shock. Avoid direct contact with the vehicle body during the following spark test.
