Cruise Control Servo Cable: Service and Repair

ACTUATOR CABLE REMOVAL/INSTALLATION

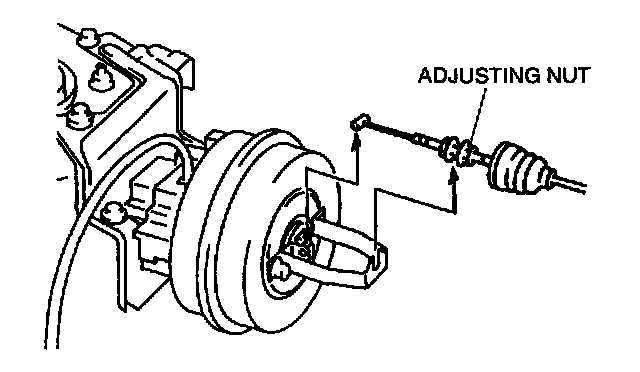

1. Loosen the adjusting nut, and remove the actuator cable.

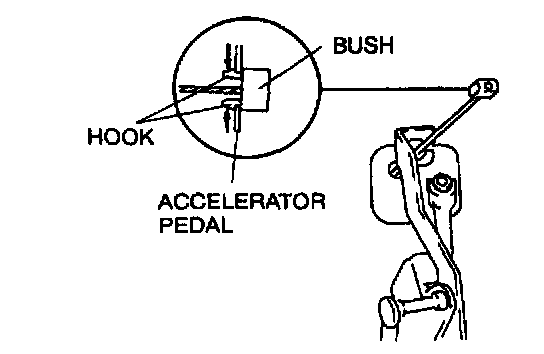

2. Compress the hooks on the bushing, and remove it from the accelerator pedal.

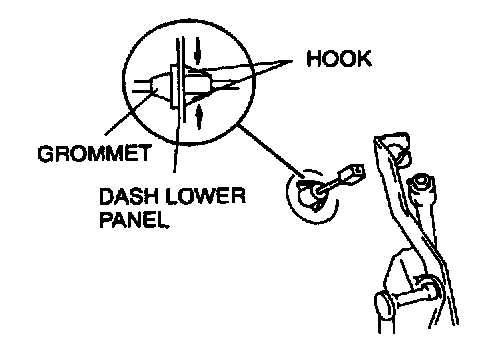

3. Compress the hooks on the grommet, and remove it from the dash lower panel.
4. Push the actuator cable through the dash lower panel to remove it.
5. Install in the reverse order of removal.
6. Adjust the actuator cable.
