Rear Wheel Alignment
TOTAL TOE-IN ADJUSTMENT 1.
Loosen the cam nut on the lateral link.
2.

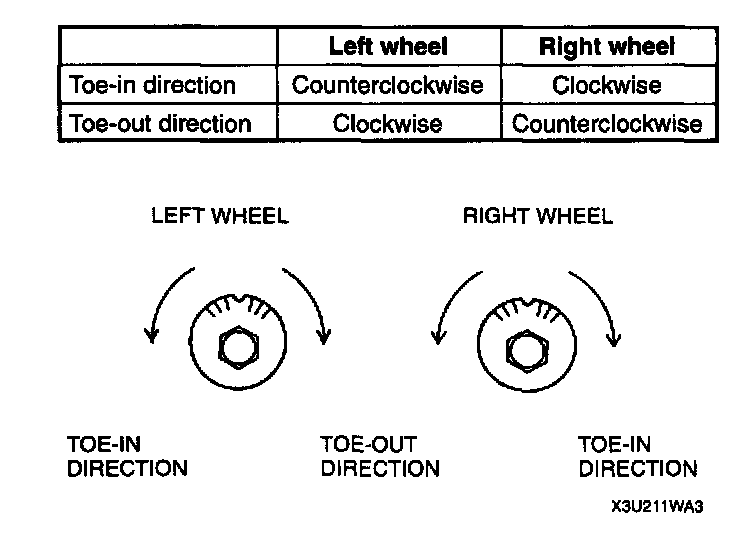

Turn the adjusting cam bolt as indicated to adjust the toe-in.
NOTE: Turning the adjusting cam bolt one graduation changes the toe-in about 3.0 mm (0.12 inch) (0°18').
3.
Tighten the cam nut.
Tightening torque: 35 - 53 Nm (3.5 - 5.5 kgf-m, 25 - 39 ft. lbs.)
