Transmission Temperature Sensor/Switch: Testing and Inspection

Transaxle Fluid Temperature (TFT) Sensor Inspection
1. Disconnect the negative battery cable.
2. Remove the fresh air duct and air cleaner component.

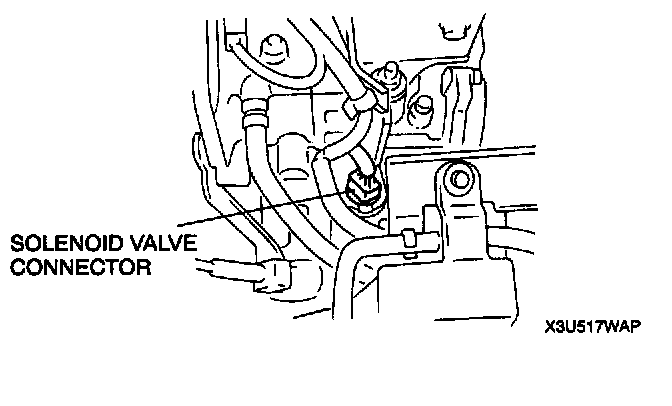

3. Disconnect the solenoid valve connector.

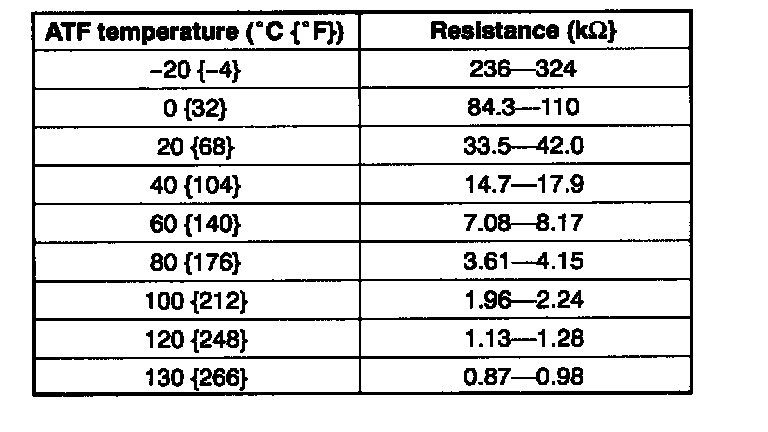

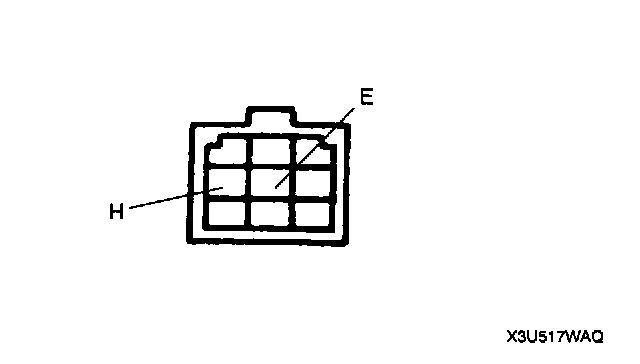

4. Measure the resistance between the terminals E and H.
^ If it is out of specifications, replace the TFT sensor.
5. Connect the solenoid valve connector.
6. Install the air cleaner component and fresh air duct.
7. Connect the negative battery cable.
