Blower Motor: Diagrams

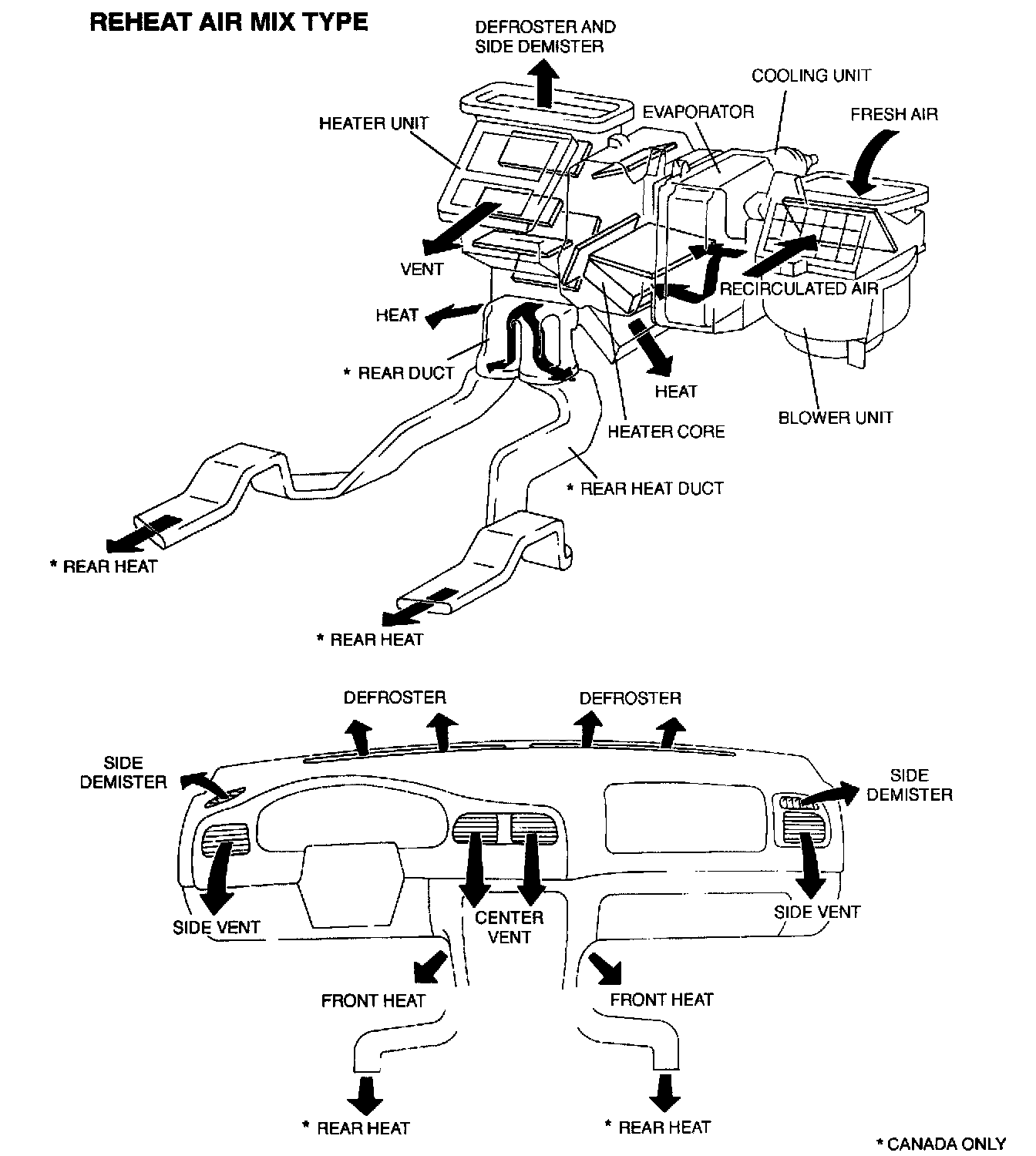

Reheat Air Mix Type:

- The air passes the blower unit, cooling unit, and heater unit then blows from each vent into the passenger compartment.
- When the heater is turned on, the air that passed from the blower unit is cooled, dehumidified and filtered by the evaporator, then heated by the heater core.
- The ventilation of the rear seats is improved by using rear heat ducts. (CANADA only)
- The side windows can be prevented from becoming cloudy by ventilation from the side demister.
