Electrical Diagrams

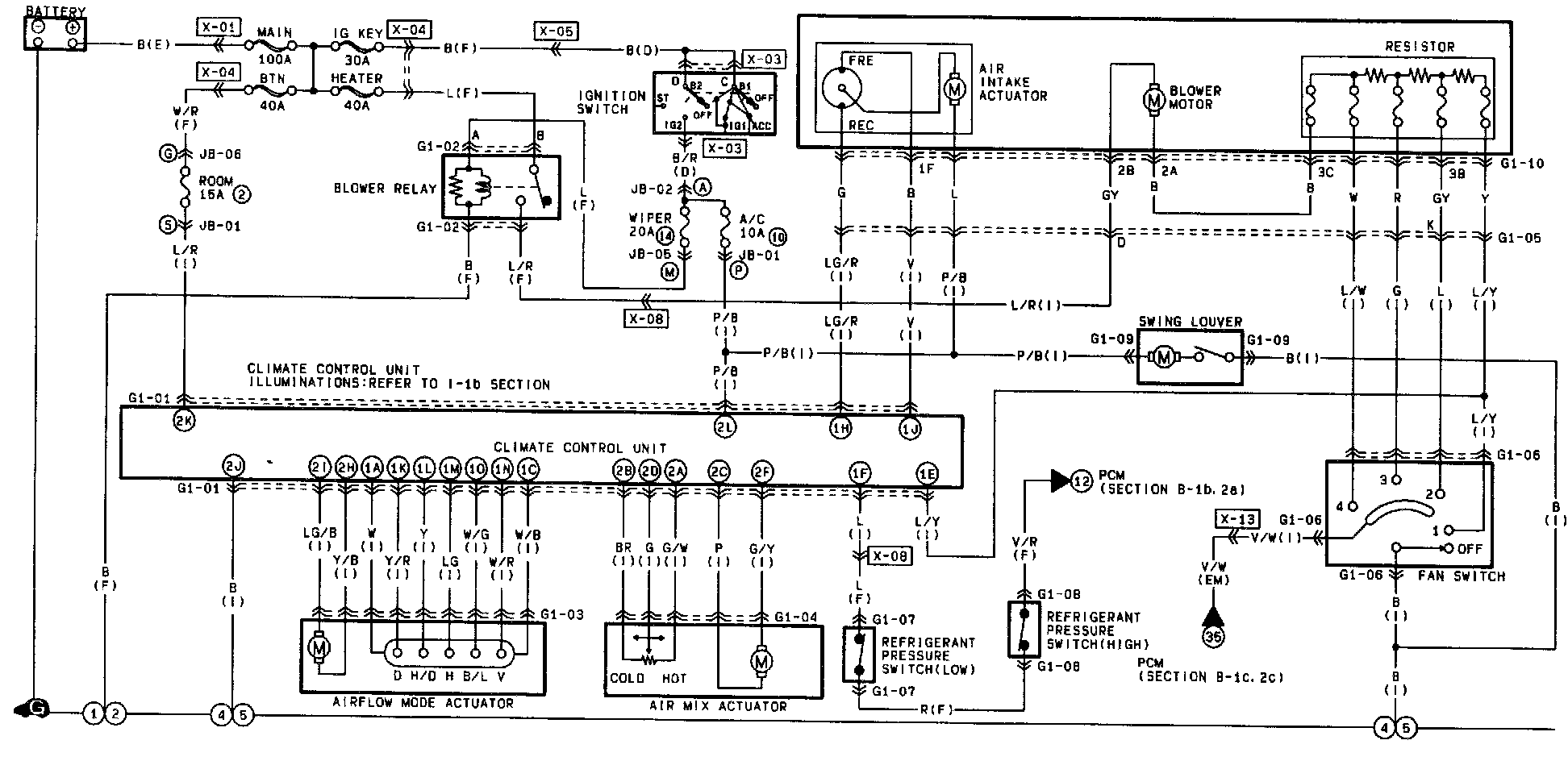

Heater And Air Conditioning Circuit:
Connector Views:
Connector Locations:

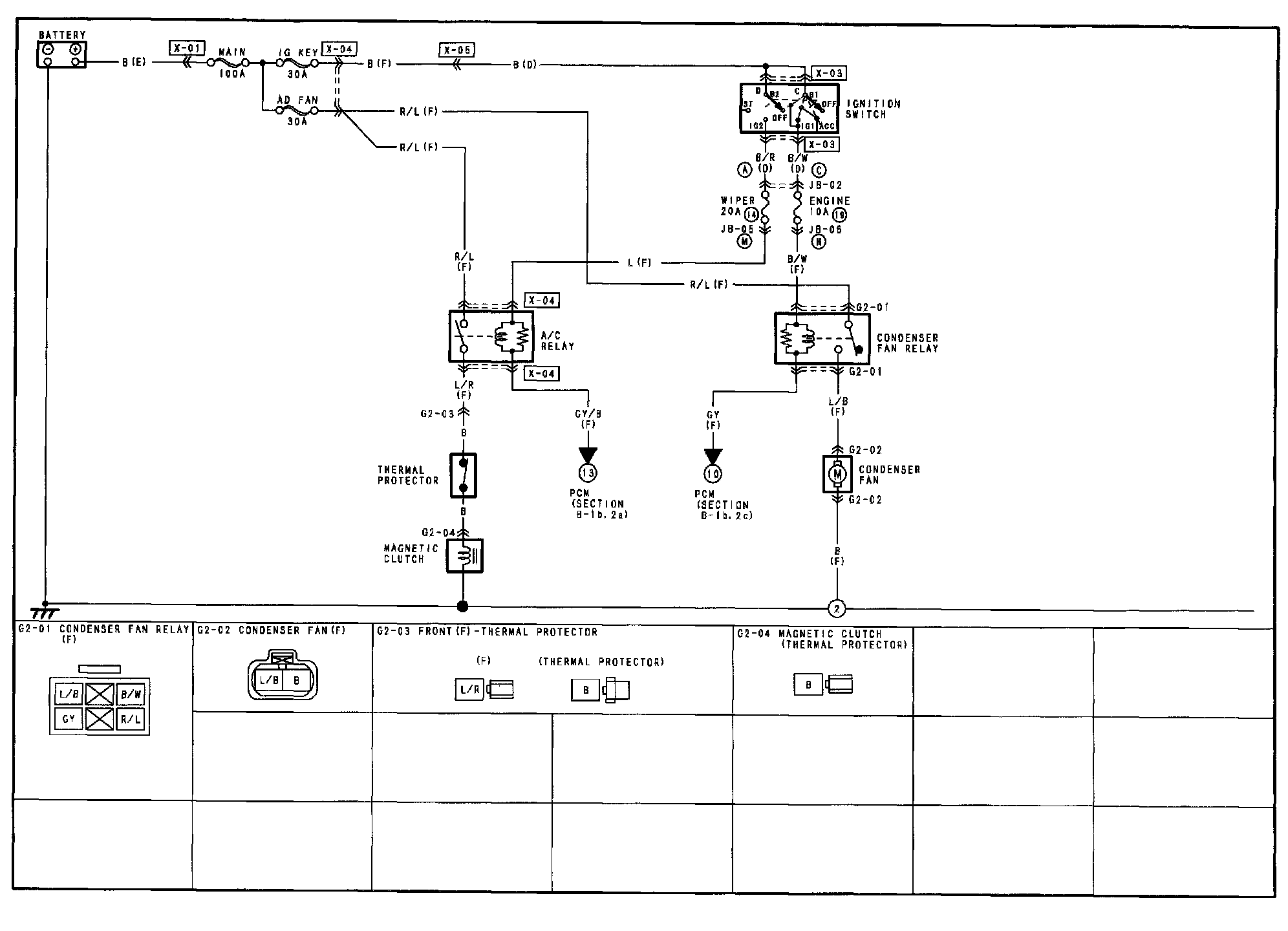

Condenser Fan System Circuit:
REFERENCED DIAGRAMSIn many instances electrical diagrams will refer you to another section to complete the circuit. These referenced sections can be found at vehicle level under "Diagrams."
Diagrams
