5 - Harness Between SAS Control Module and Side Air Bag Sensor

DTC 5:

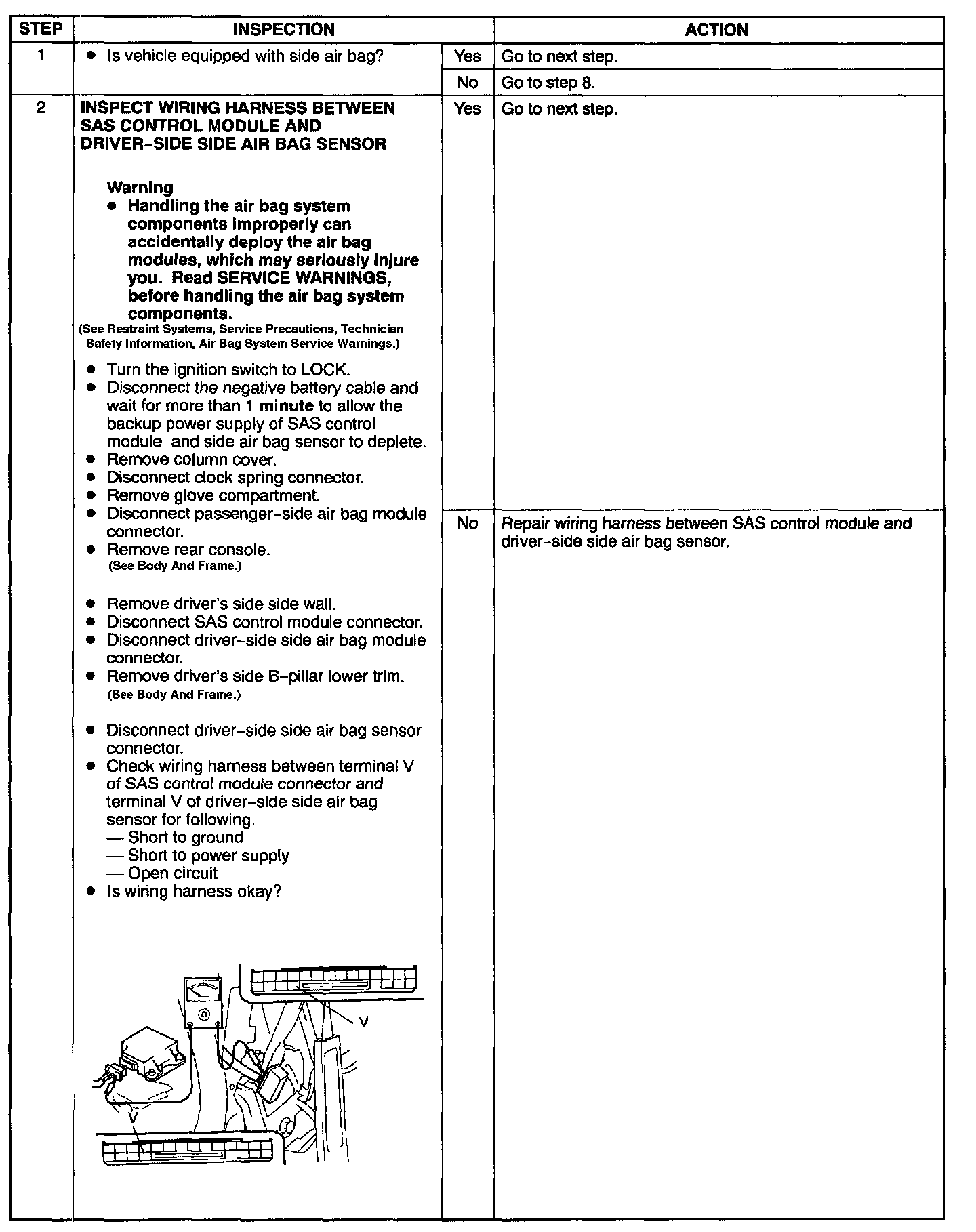

DTC 5 (Steps 1 And 2):

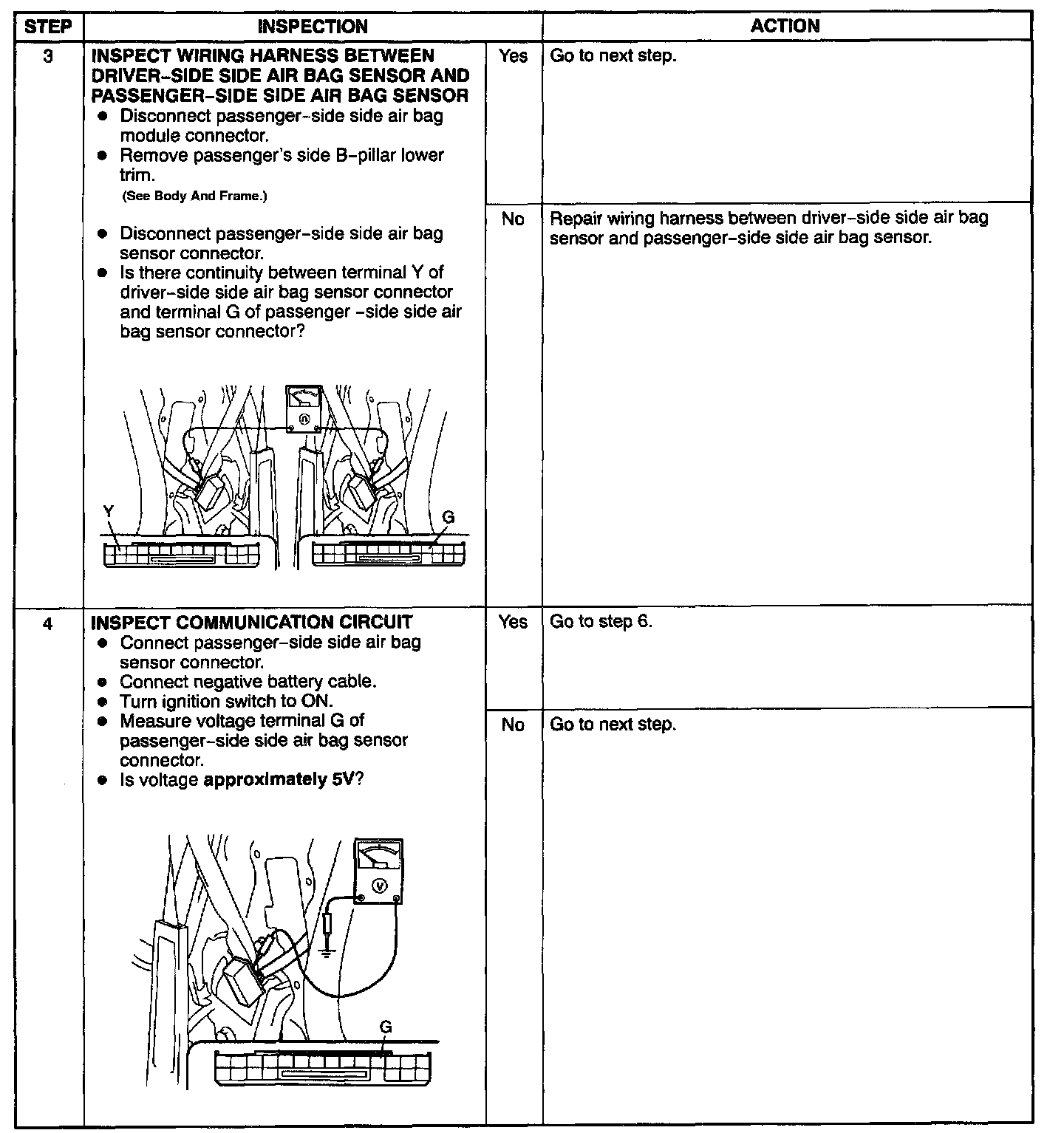

DTC 5 (Steps 3 And 4):

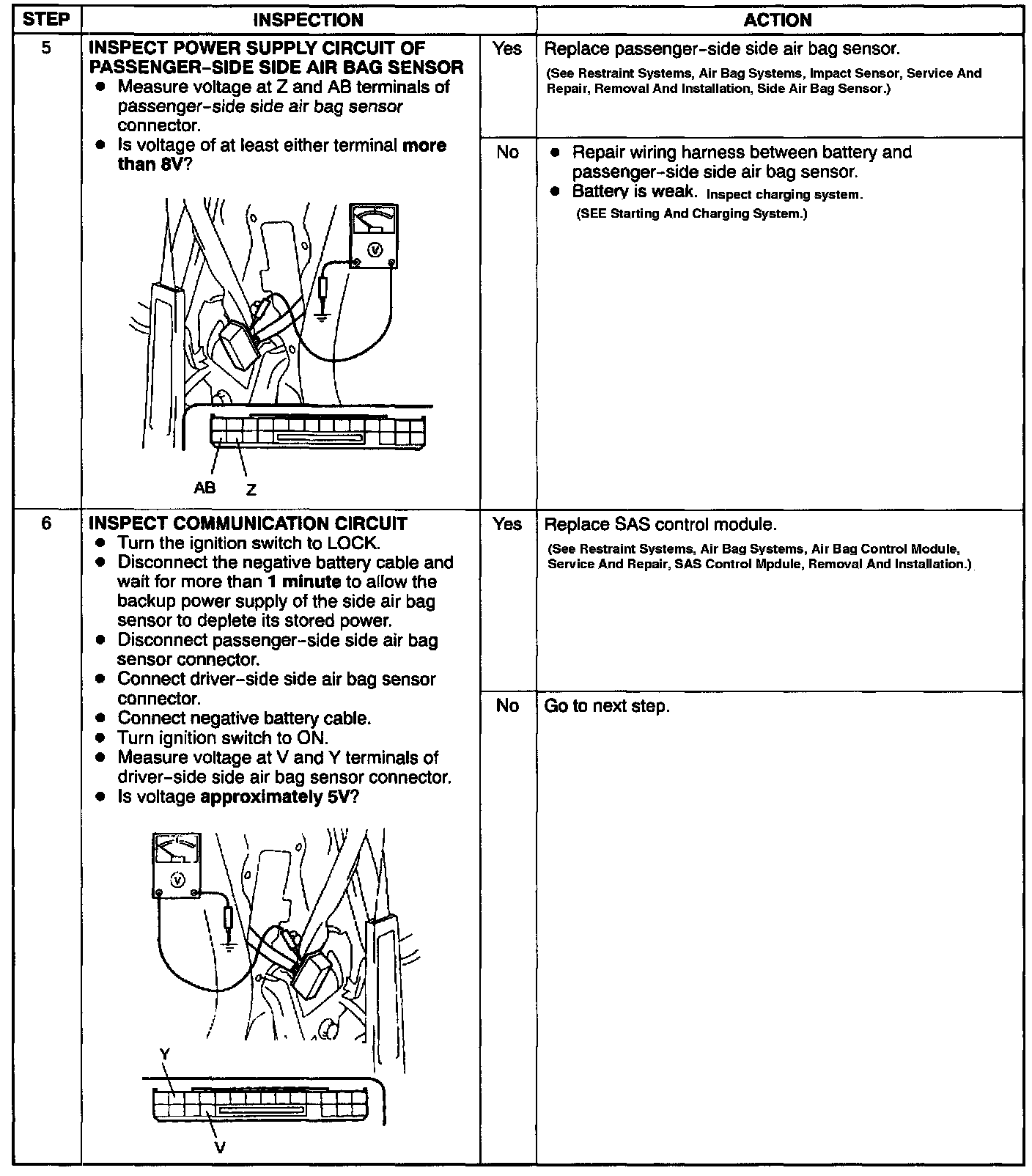

DTC 5 (Steps 5 And 6):

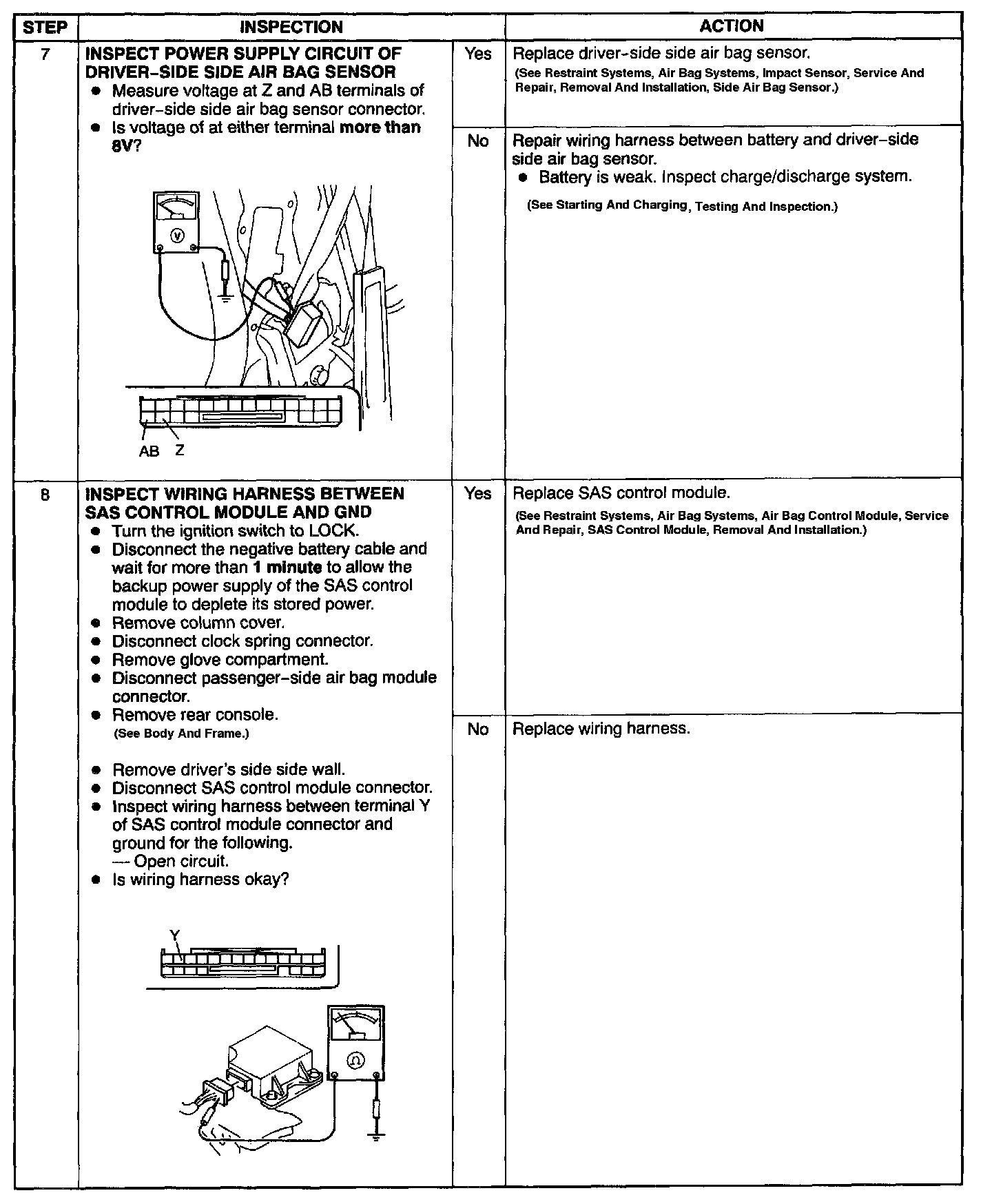

DTC 5 (Steps 7 And 8):
