General Electrical Specifications

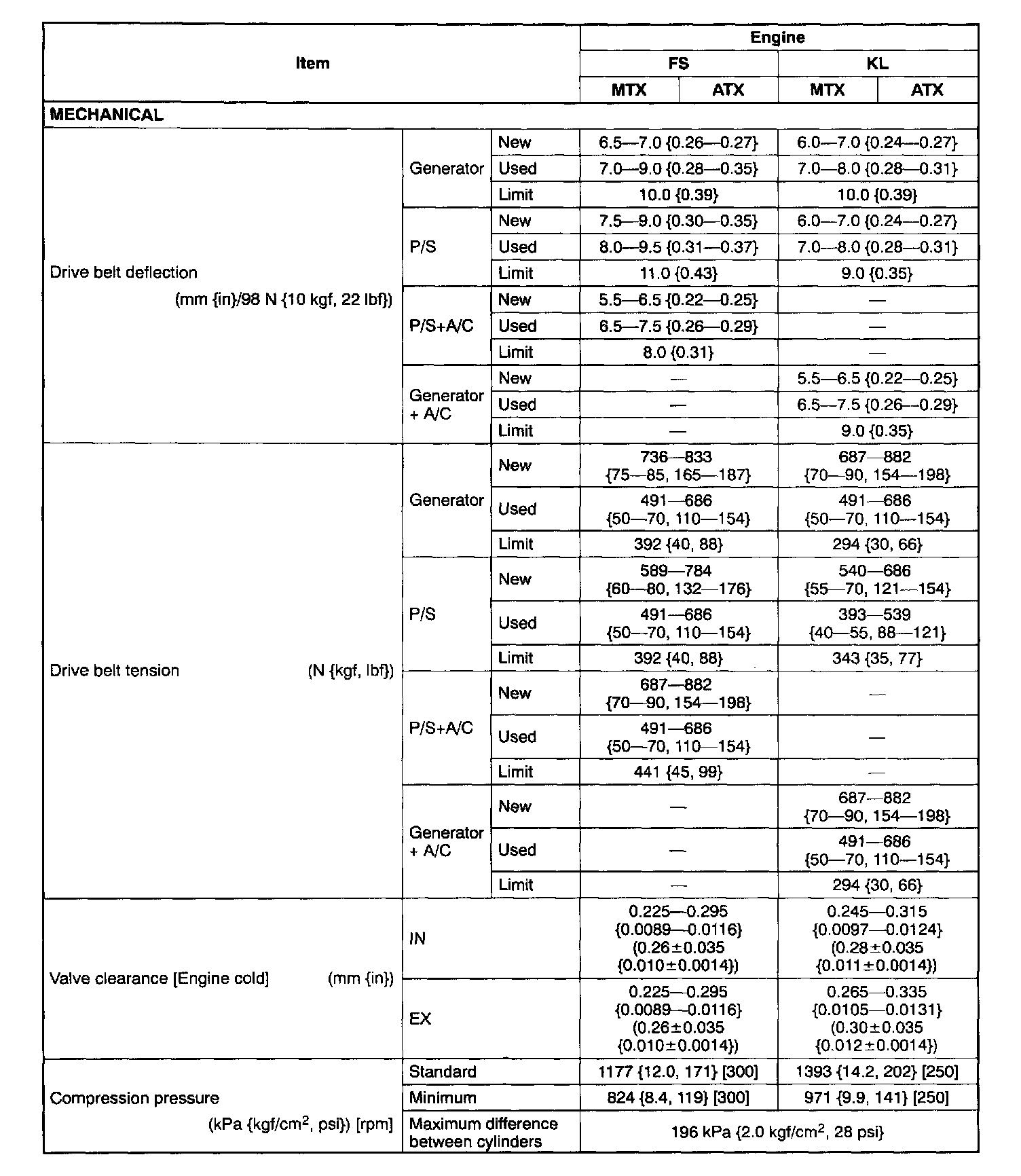

Engine Technical Data (Part 1 Of 4):

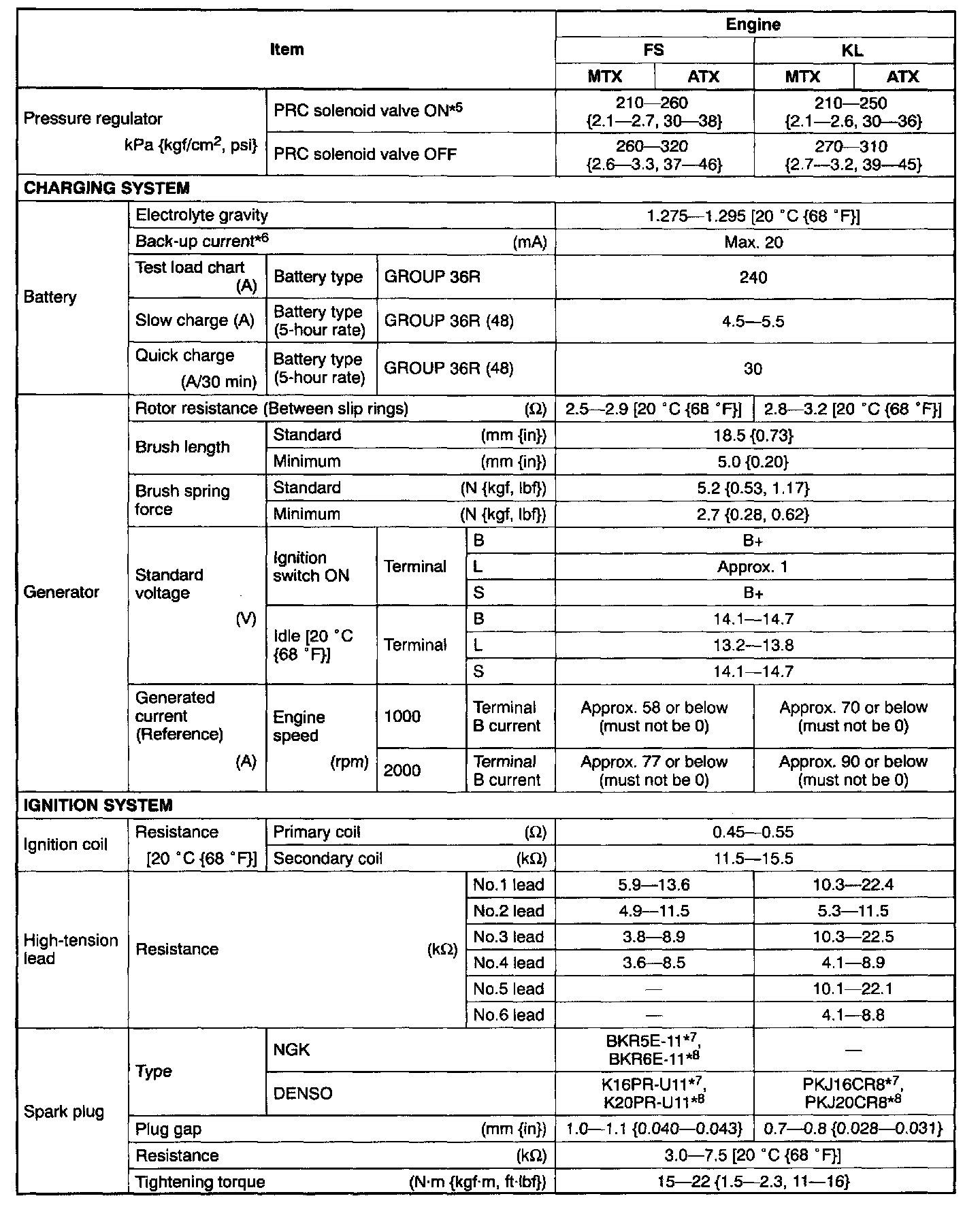

Engine Technical Data (Part 2 Of 4):

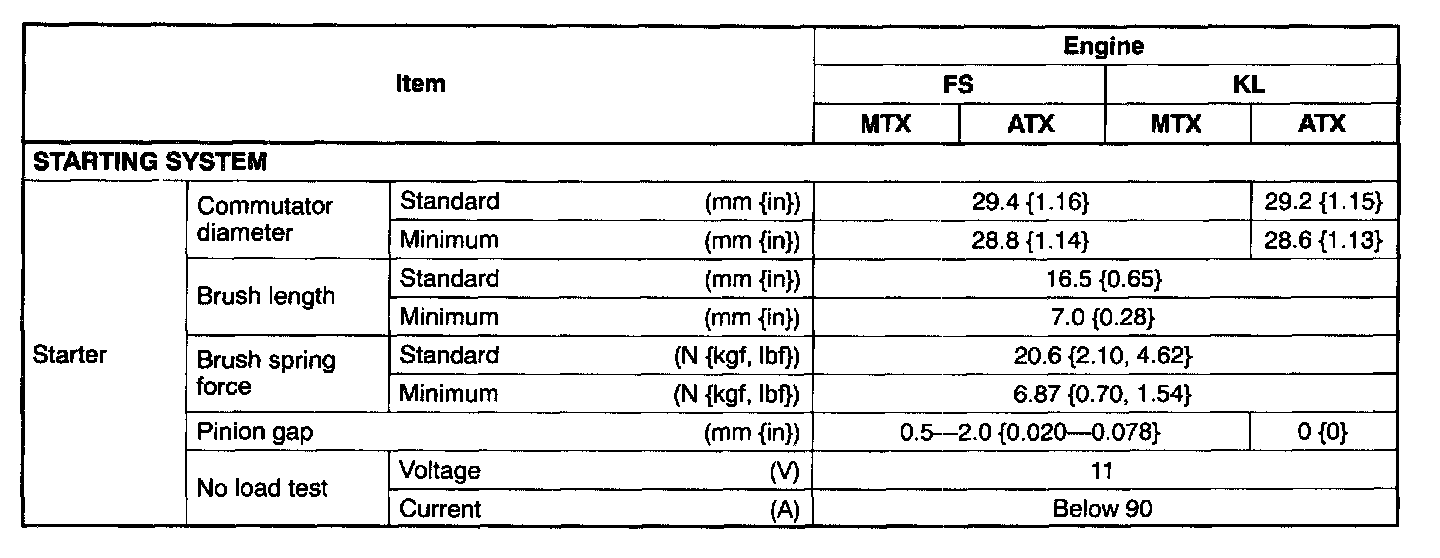

Engine Technical Data (Part 3 Of 4):

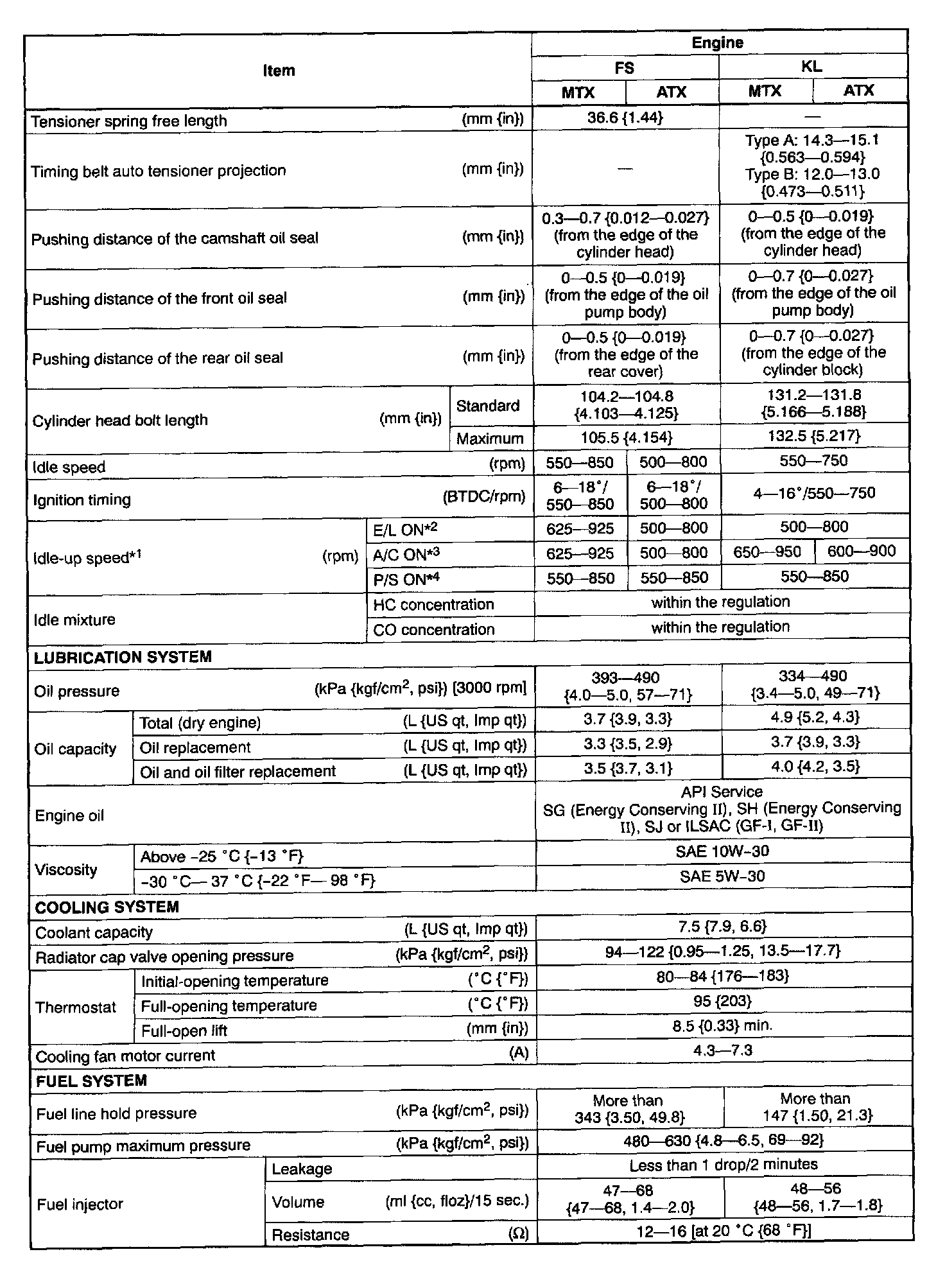

Engine Technical Data (Part 4 Of 4):

*1 : Excludes temporary idle speed drop just after the loads (E/L, A/C, P/S) are turned on.
*2 : Headlight, fan switch (3rd or higher) and cooling fan are turned on.
*3 : A/C switch and fan switch are tuned on.
*4 : Steering wheel fully turned.
*5 : Hot condition at the staring
*6 : Back-up current is the constant flow of current present (for the audio unit, clock, PCM, etc.) when the ignition switch is at OFF and with the ignition key removed.
*7 : Standard plug
*8 : Cold type plug
