No.9 No Temperature Control With Rear Climate Control Unit

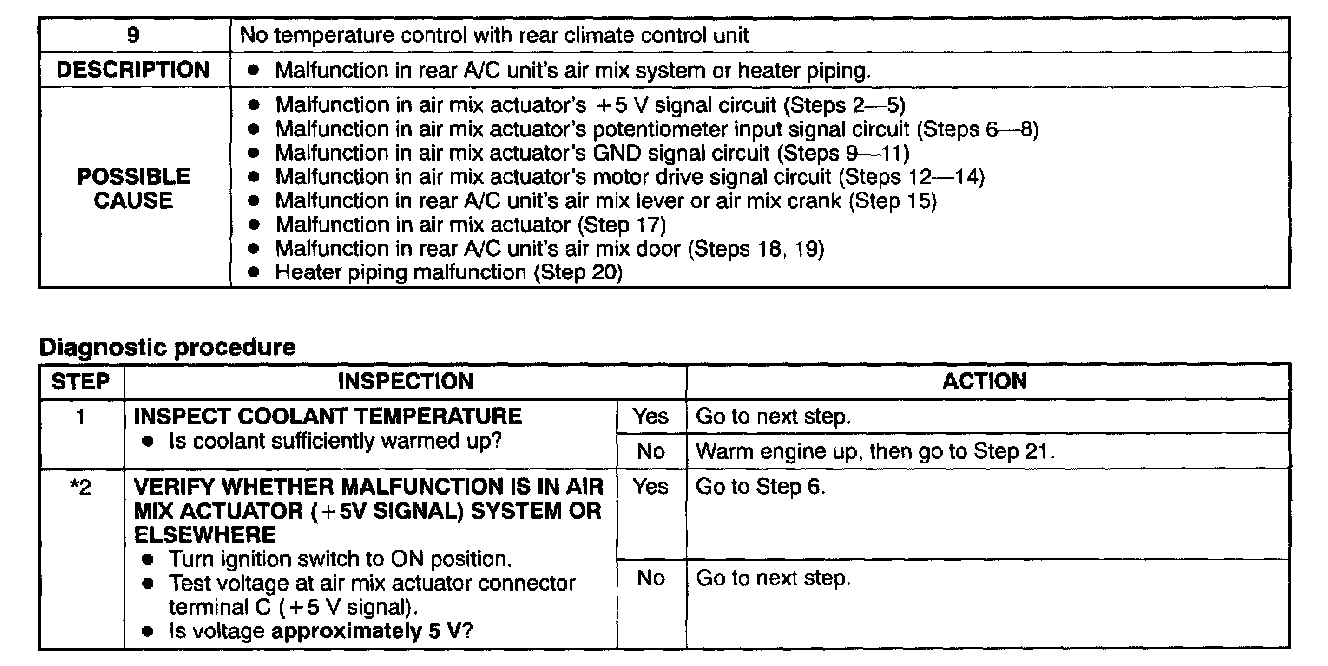

Steps 1 - 2:

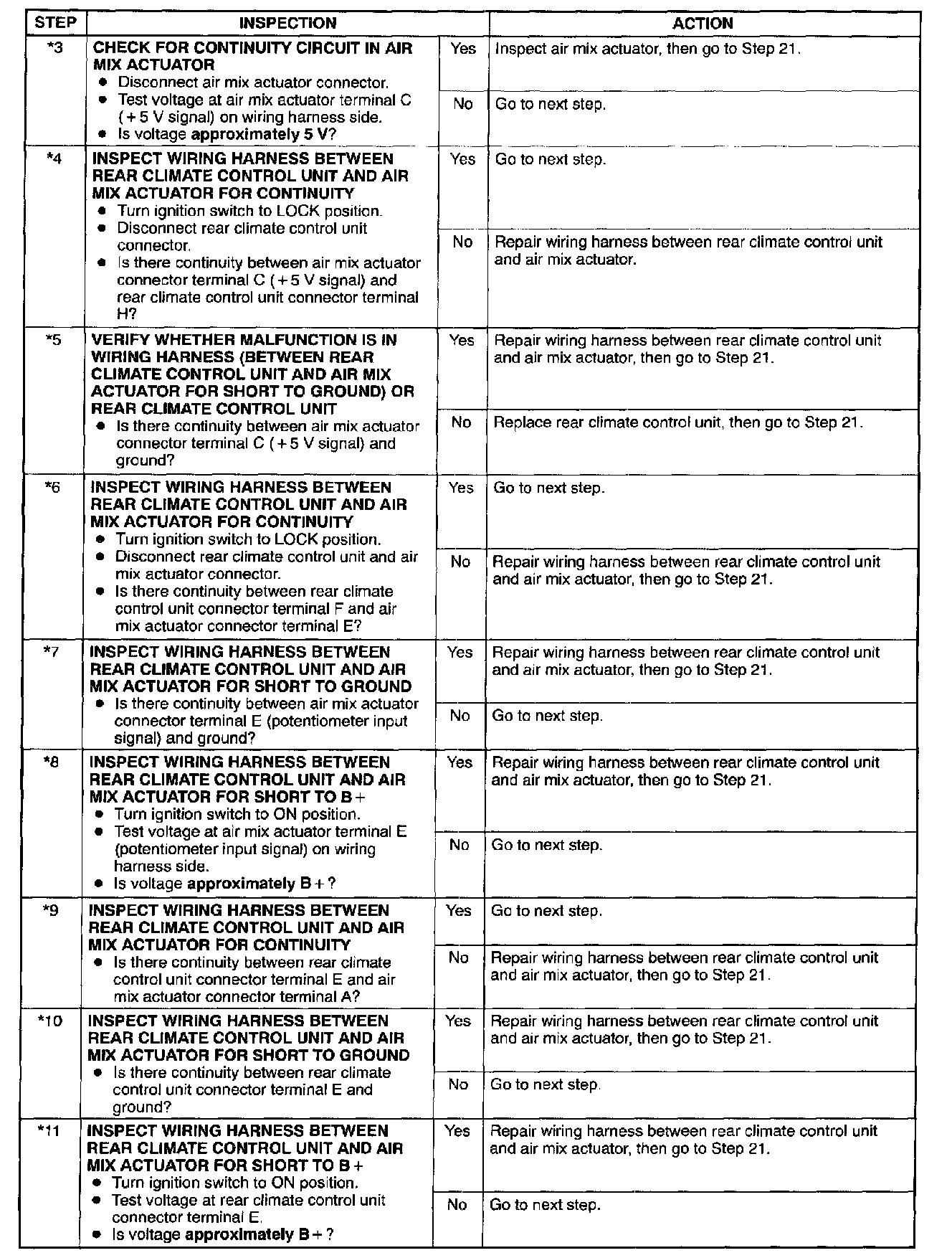

Steps 3 - 11:

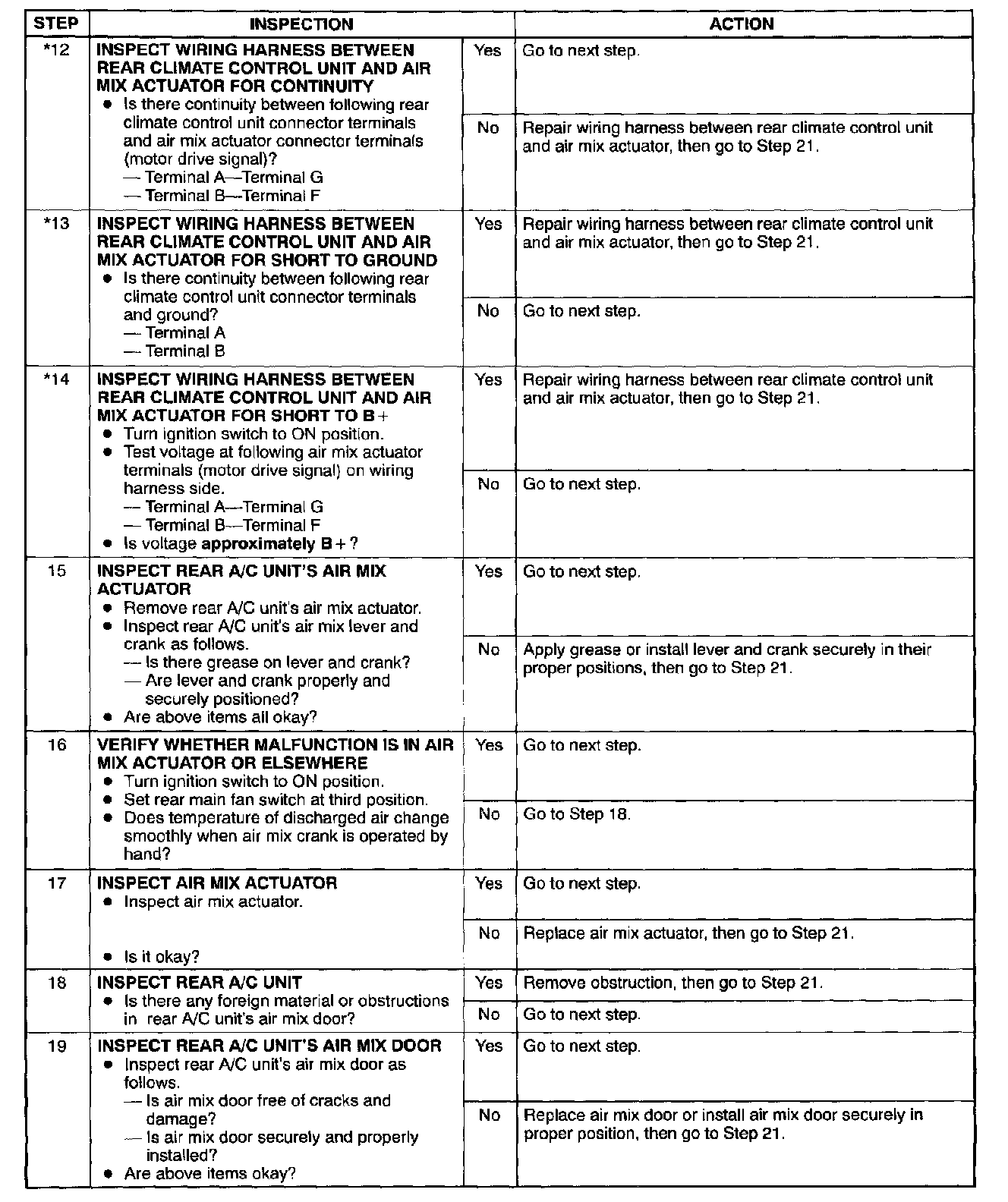

Steps 12 - 19:

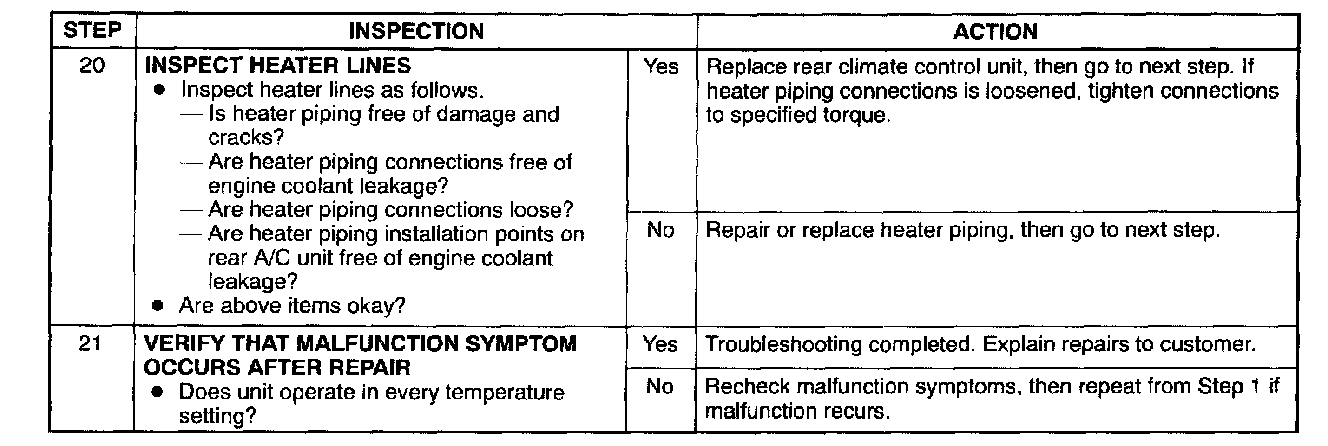

Steps 20 - 21:

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
