Water Pump: Service and Repair

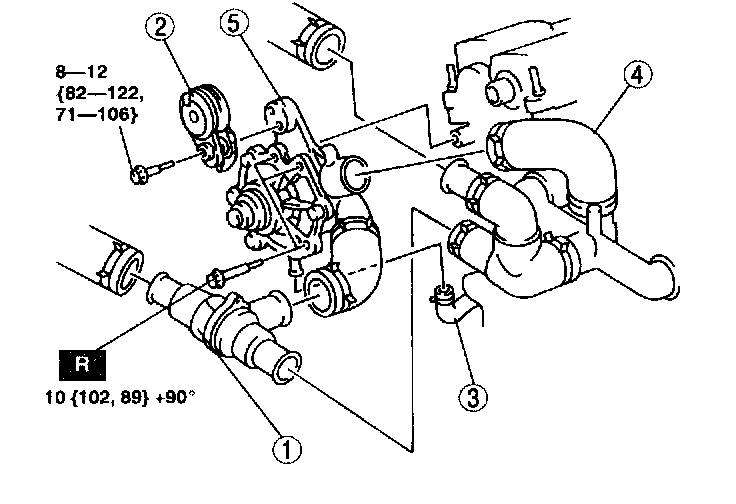

WATER PUMP REMOVAL/INSTALLATION Note: The water pump is located in the rear side of engine.
1.
Remove the battery and battery tray.
2.
Drain the engine coolant.
3.
Remove the water pump drive pulley.
4.

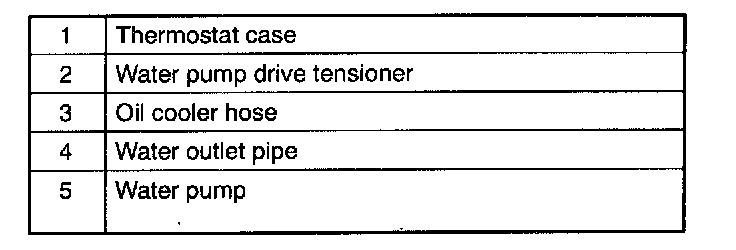

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
Water Pump Installation Note 1.
Tighten the bolts to the specified torque, then tighten them further
90°.
