Daytime Running Lamp Control Unit: Service and Repair

NOTE: Because the lock section of the control module is damaged easily, do not remove the control module from the bracket unless replacement is necessary. Always perform an inspection of the DRL control module before removal.

1. Remove the negative battery cable.

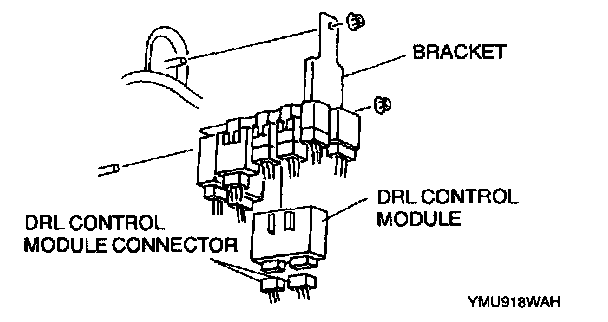

2. Remove the bracket.
3. Disconnect the DRL control module connector.




4. Remove the DRL control module by prying the lock section of the side part with a flathead screwdriver.
5. Install in the reverse order of removal.
