13. Bearing Cover Assembly
BEARING COVER ASSEMBLYPreparation
SST
Disassembly/Assembly

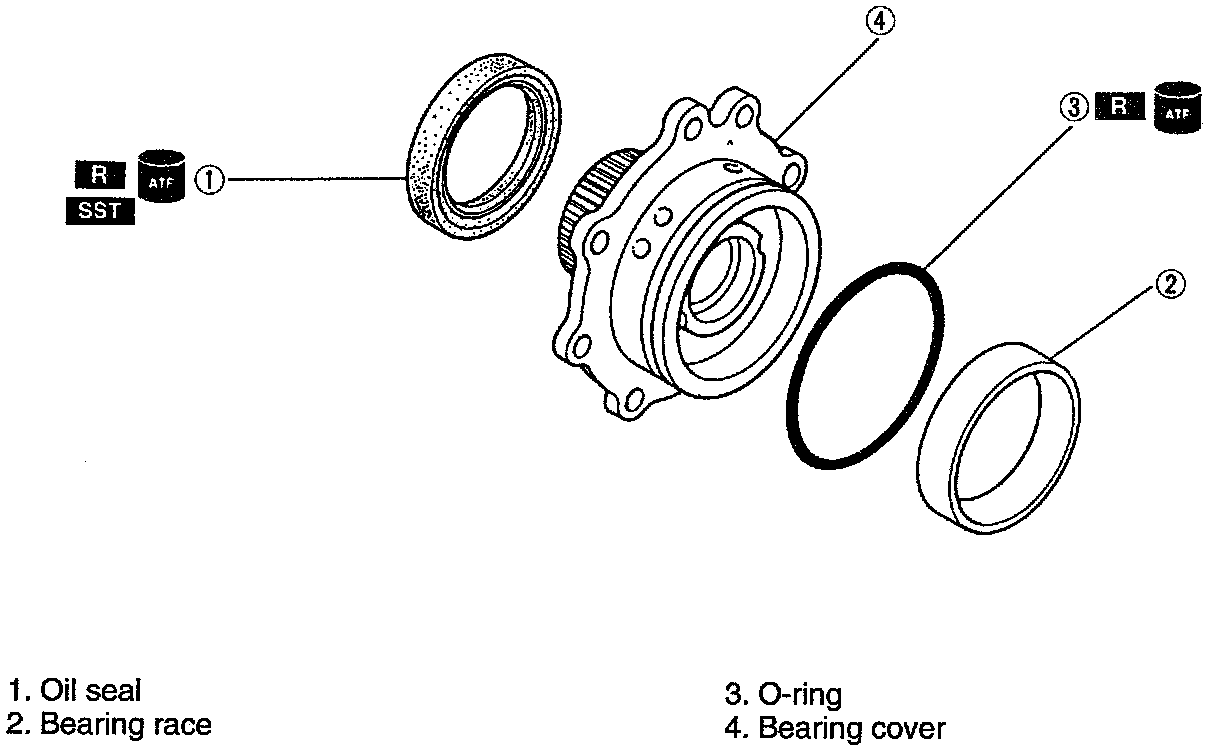

1. Disassemble in the order shown in the figure, referring to Disassembly Note.
2. Assemble in the reverse order of disassembly, referring to Assembly Procedure.
Disassembly Note
Bearing Race
Remove the bearing race by using a pin punch and a hammer.
Assembly Procedure
1. Press the new bearing race into the bearing cover.
2. Apply ATF to a new O-ring and install it onto the bearing cover.
O-ring inner diameter: 85.1 mm (3.35 inch)
3. Press a new oil seal into the bearing cover by using the SST.
