Removal/Installation

OIL COOLER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the coolant into a container.
3. Drain the ATF into a container.
4. Remove the battery, battery tray, and battery tray bracket.
5. Remove the air cleaner component.
6. Remove the radiator grille.
7. Remove the front bumper.
8. Remove the splash shield.
9. Remove the mud guard.

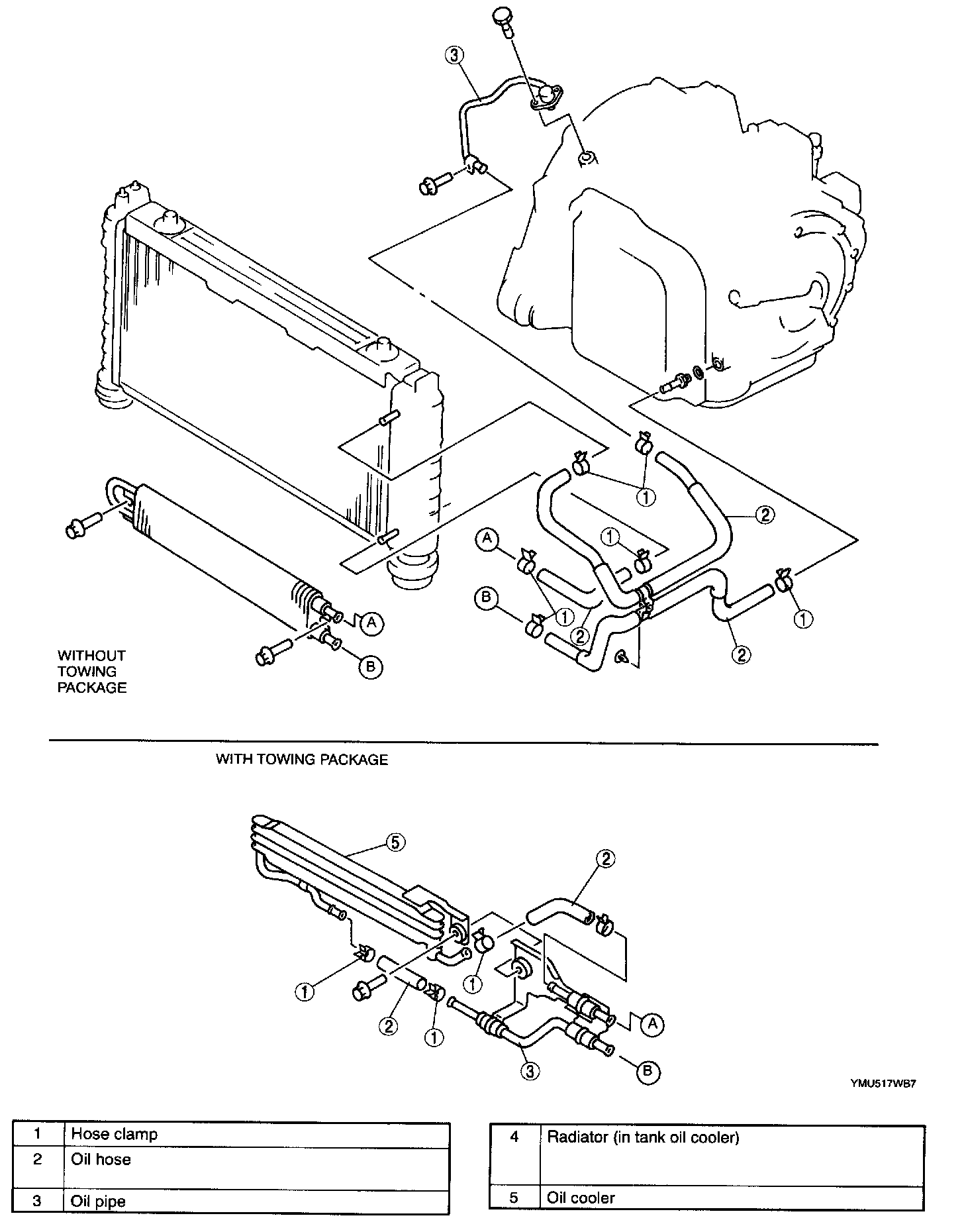

10. Remove in the order indicated in the table.
11. Install in the reverse order of removal.
12. Add ATF to the specified level.
13. Add coolant to the specified level.
14. Connect the negative battery cable.
15. Inspect for oil leakage from the oil pipes and oil hoses.
16. Inspect for coolant from the hoses.
17. Inspect the ATF level and condition.
18. Carry out the line pressure test.
19. Carry out the road test.

Radiator (In Tank Oil Cooler) Installation Note
1. The automatic transaxle oil cooler flushing must be performed whenever a transaxle is removed for service because the existing fluid may be contaminated, and to prevent contamination of new fluid.

Note The flushing must be performed after installation of the overhauled or replaced transaxle.

2. Follow the instructions in the manufacturer's publication for flushing operation.

Oil Hose Installation Note





1. Apply compressed air to cooler-side opening, and blow any remaining grime and foreign material from the cooler pipes. Compressed air should be applied for no less than one minute.





2. Align the marks, and slide the oil hose onto the oil pipe until it is fully seated as shown.





3. Install the hose clamp onto the hose. If reusing the hose, install the new hose clamp exactly on the mark left by the previous hose clamp.
4. Verify that the hose clamp does not interfere with any other components.
