Power Door Lock Switch: Testing and Inspection
NOTE: The door lock-link switch is together with the driver's side door lock.
1.
Remove the driver's side door trim.
2.
Remove the door screen.
3.
Disconnect the door lock-link switch connector.
4.

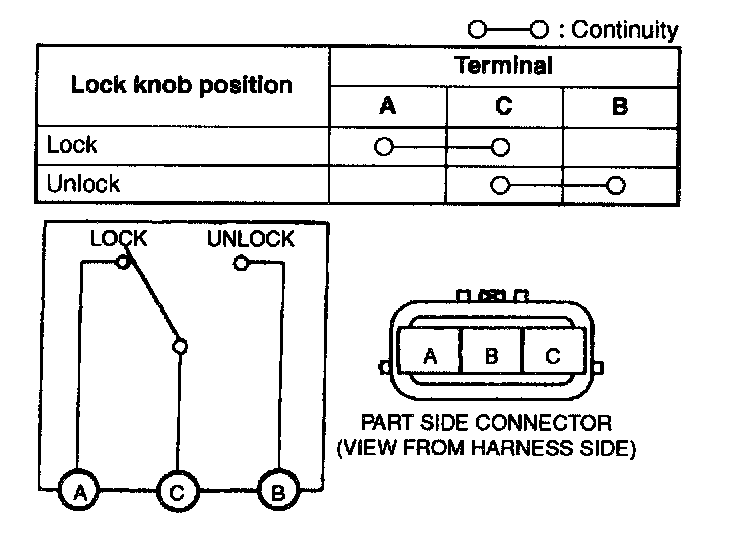

Inspect for continuity between the door lock-link switch terminals using an ohmmeter.
-
If not as specified, replace the driver's side door lock.
