Front
CALIPER (FRONT) DISASSEMBLY/ASSEMBLY 1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.

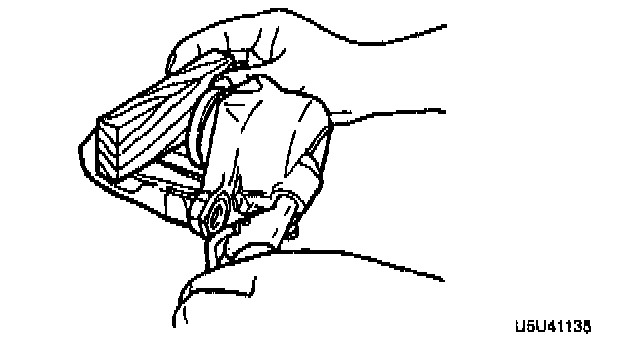

Piston Disassembly Note 1.
Place a piece of wood in the caliper.
2.
Gently blow compressed air through the hole to force the piston out of the caliper.
Piston Seal Disassembly Note 1.
Remove the piston seal using the SST
