Cruise Control Servo Cable: Adjustments
1.

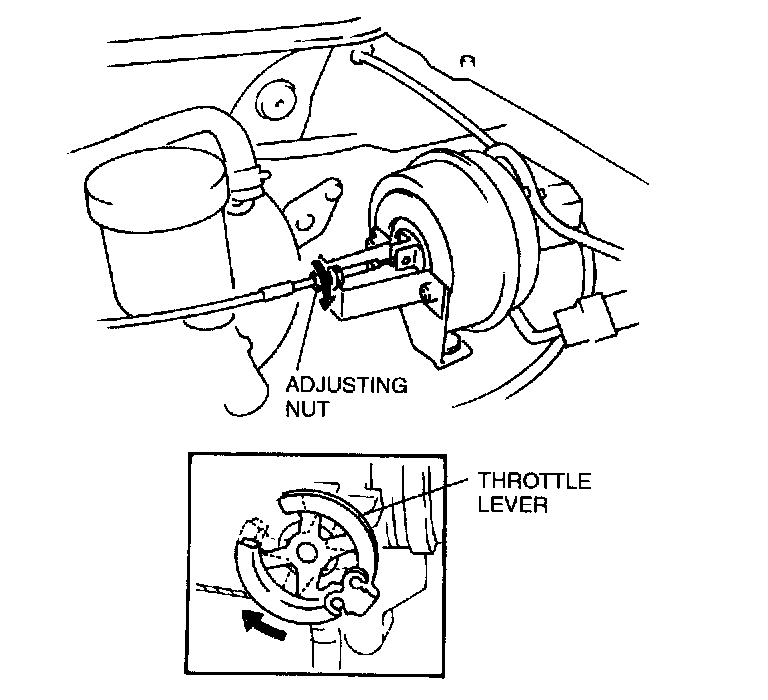

Turn the adjusting nut as shown in the figure until the throttle lever starts moving to eliminate the actuator cable play.
2.

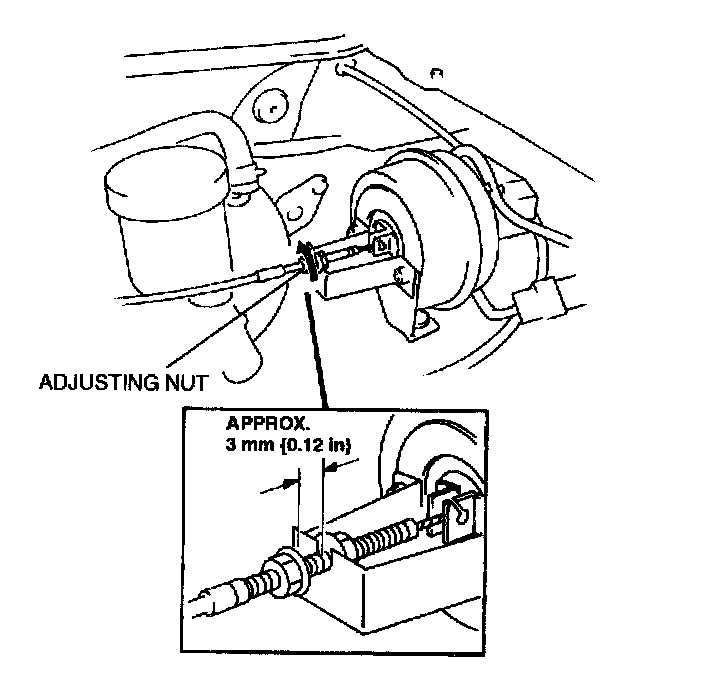

Turn the adjusting nut as shown in the figure to obtain approximately
3 mm {0.12 in} free play.
NOTE: Turning the adjusting nut twice makes
3 mm {0.12 in} free play.
3.
Tighten the inside nut.
