Cruise Control Servo Cable: Service and Repair
1.

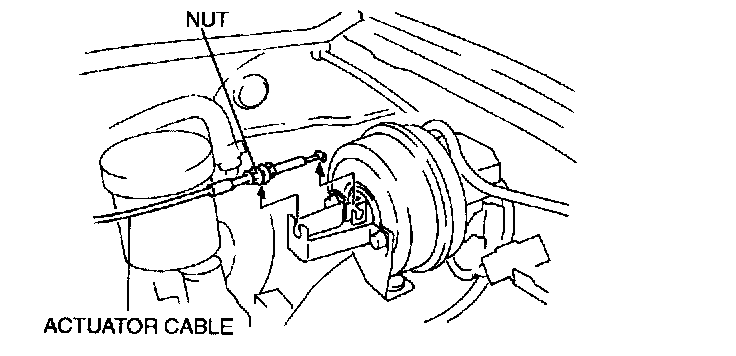

Loosen the nut, and remove the actuator cable.
2.

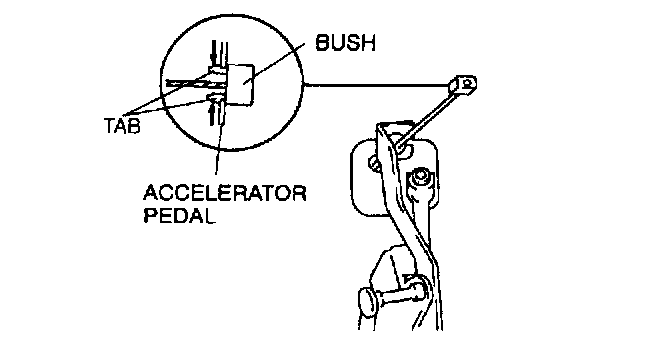

Press the tabs of the bush, and remove it from the accelerator pedal.
3.

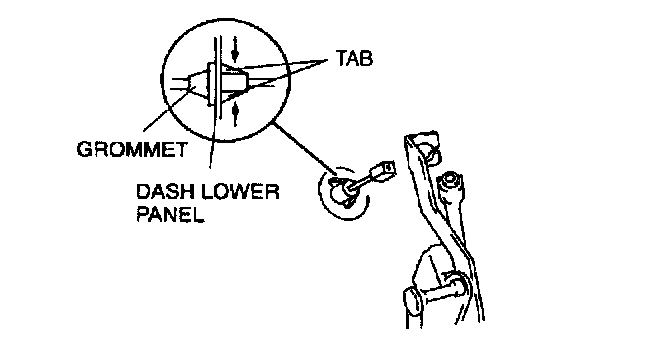

Press the tabs of the grommet, and remove it from the dash lower panel.
4.
Push the actuator cable through the dash lower panel to remove it.
5.
Install in the reverse order of removal.
6.
Adjust the actuator cable.
