Intake Manifold: Service and Repair






INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

Warning: When the engine and intake-air system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the intake-air system.

1. Disconnect the negative battery cable.
2. Drain the engine coolant from radiator.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Refill the engine coolant to radiator.

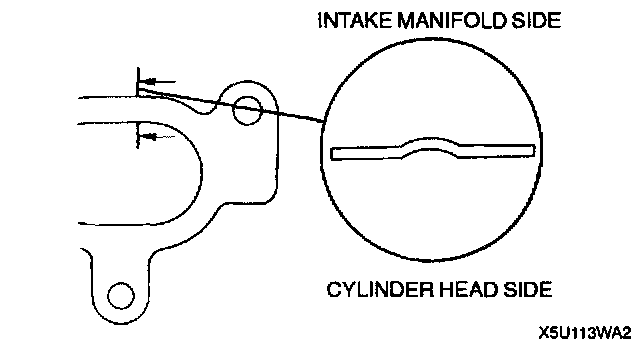

Intake Manifold Gasket Installation Note





1. Install the intake manifold gasket with convex side of the gasket is faced to the intake manifold side.

Dynamic Chamber Gasket Installation Note





1. Install the dynamic chamber gasket with the convex side of the gasket is faced to the intake manifold side.

Dynamic Chamber Stay Installation Note
1. Snugly tighten the bolts, then tighten the dynamic chamber side bolts before tightening the intake manifold side bolts.

Dynamic Chamber Bracket Installation Note
1. Snugly tighten the bolts, then tighten the dynamic chamber side bolt before tightening the fuel distributor side bolt.
