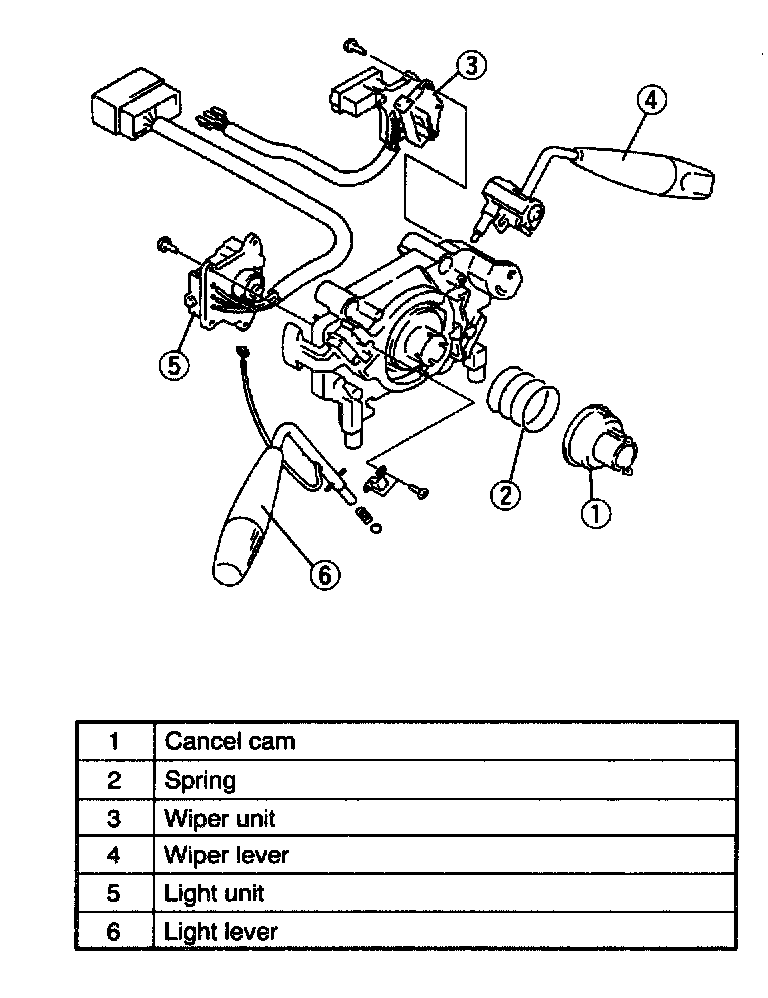

Disassembly/Assembly
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
Wiper Unit Assembly NoteMake sure the terminals of the harness assembly are connected to the terminals of the connector as shown in the table.
