Combination Switch: Testing and Inspection

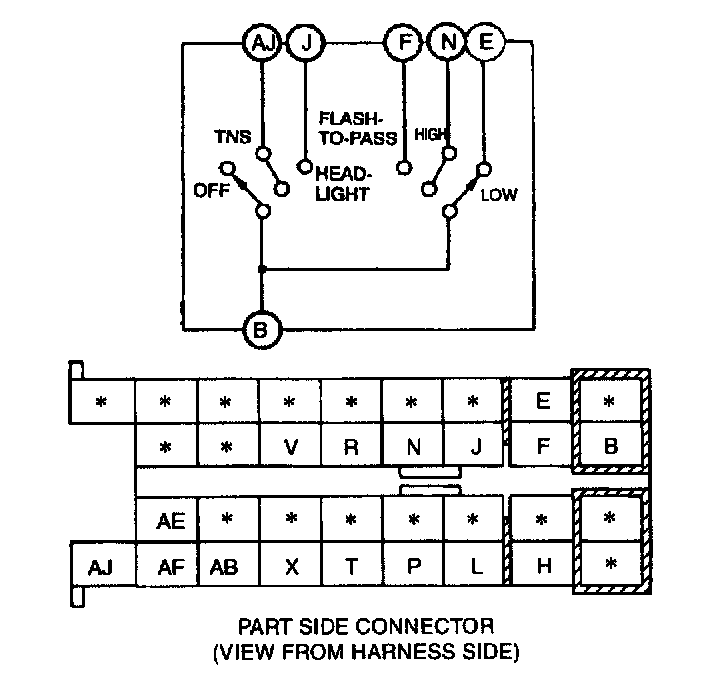

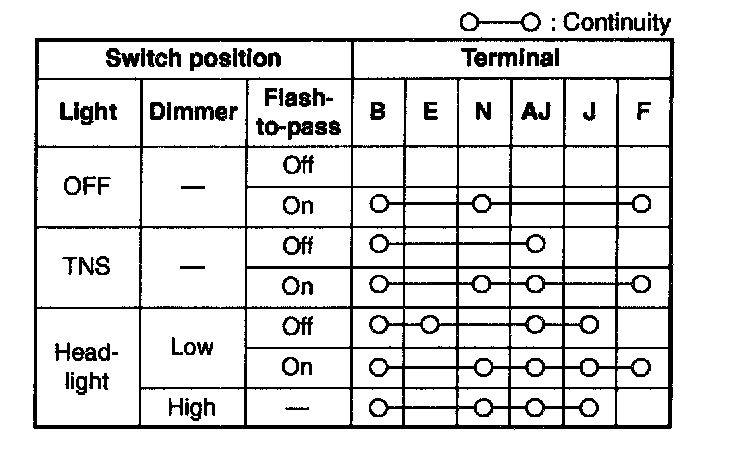

Headlight Switch
1. Remove the combination switch.







2. Inspect for continuity between the combination switch terminals using an ohmmeter.
- If not as specified, replace the light unit or light lever.

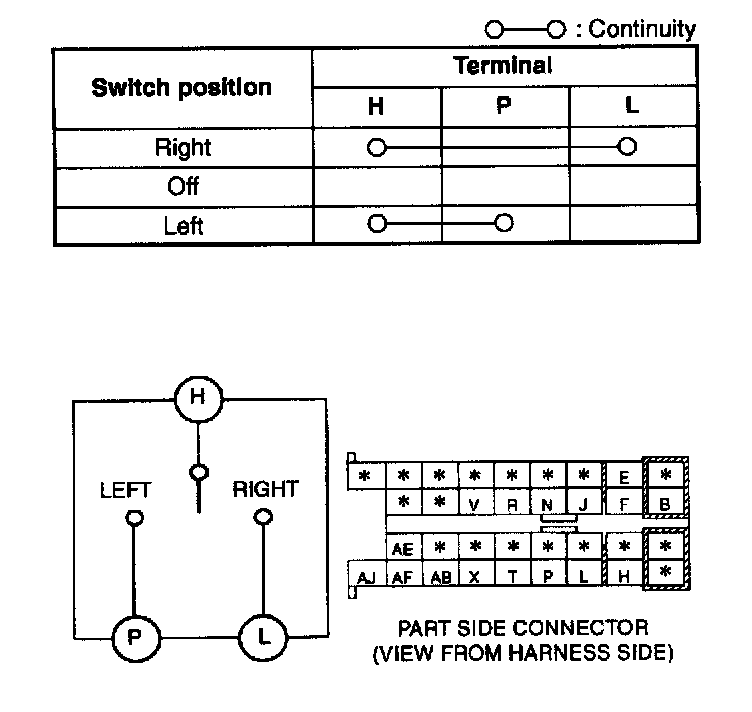

Turn Switch
1. Remove the combination switch.




2. Inspect for continuity between the combination switch terminals using an ohmmeter.
- If not as specified, replace the light unit or light lever.

Windshield Wiper and Washer Switch
1. Remove the combination switch.




2. Inspect for continuity between the combination switch terminals using an ohmmeter.
- If not as specified, replace the wiper unit or the wiper lever.
