Fluid - Differential: Testing and Inspection

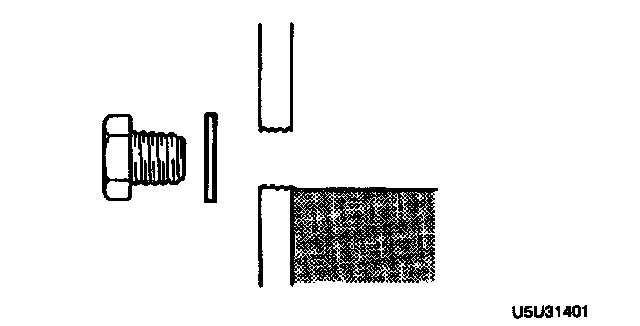

DIFFERENTIAL OIL INSPECTION 1.
Remove the filler plug.
2.
Verify that the oil is at the brim of the filler plug hole.
-
If it is low, add the specified oil.
3.
Install the filler plug.
Tightening torque
40 - 53 Nm (4.0 - 5.5 kgf-m, 29 - 39 ft. lbs.)
