Ignition Cable: Testing and Inspection
1.

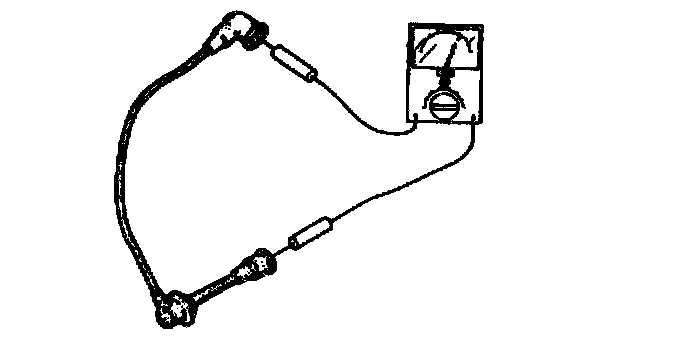

Measure the resistance of high-tension lead using an ohmmeter.
-
If not as specified, replace the high-tension lead.
Specification
No.1 lead: 4 - 11 kOhms
No.2 lead: 3 - 8 kOhms
No.3 lead: 2 - 6 kOhms
No.4 lead: 1 - 5 kOhms
