Spark Plug: Service and Repair

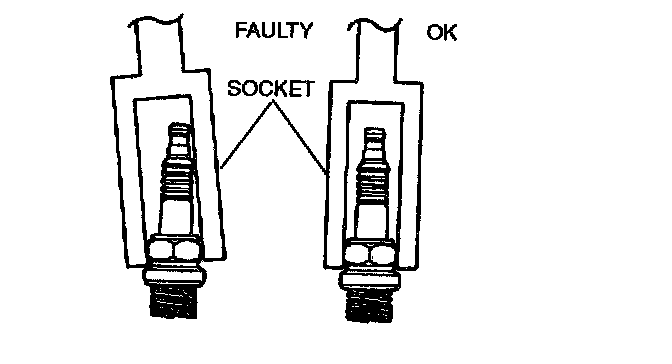

CAUTION: To avoid breaking the
spark plug, be sure to fit the socket squarely over it.
1.
Disconnect the high-tension lead.
2.
Remove the
spark plug.
3.
Install in the reverse order of removal.
Tightening torque
15 - 22 Nm {1.5 - 2.3 kgf.m, 11 - 16 ft.lbf}
