Towing

TOWING

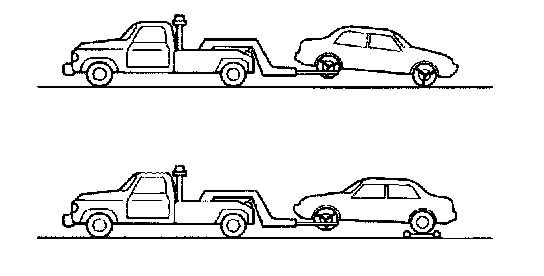

- Proper lifting and towing are necessary to prevent damage to the vehicle. State and local laws must be followed.




- A towed vehicle usually should have its front wheels off the ground. If excessive damage or other conditions prevent this, use wheel dollies.

CAUTION: Do not use the hook loops under the front and rear for towing. They are designed ONLY for tying down the vehicle when it is being transported. Using them for towing will damage the bumper

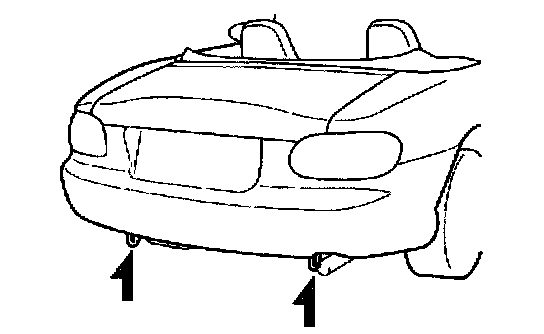

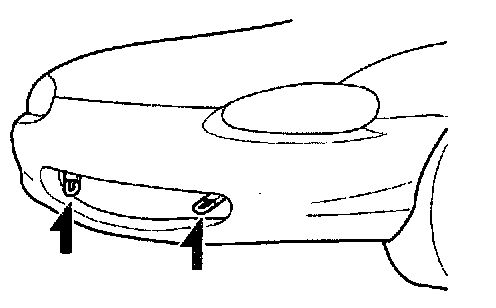

Tiedown Hooks




Front




Rear
