Shift Interlock Switch: Testing and Inspection

P POSITION SWITCH INSPECTION
1. Disconnect the negative battery cable.
2. Remove the rear console.
3. Remove the screws and lift up the indicator panel.

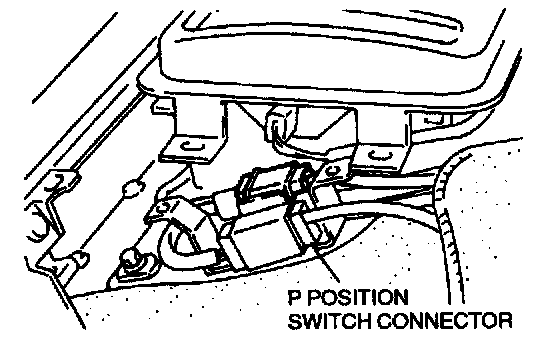

4. Disconnect the P position switch connector.

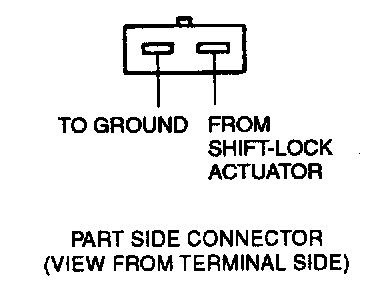

5. Inspect for continuity between the terminals.
- If not as specified, replace the P position switch.
6. Connect the P position switch connector.





7. Adjust the indicator panel. Install the screws in the order shown in the figure.
Tightening torque
2.0 - 2.9 Nm (20 - 30 kgf.cm, 18 - 26 inch lbs.)
8. Install the rear console.
9. Connect the negative battery cable.
