Key Interlock Unit Inspection
KEY INTERLOCK UNIT INSPECTION 1.
Remove the column cover.
2.

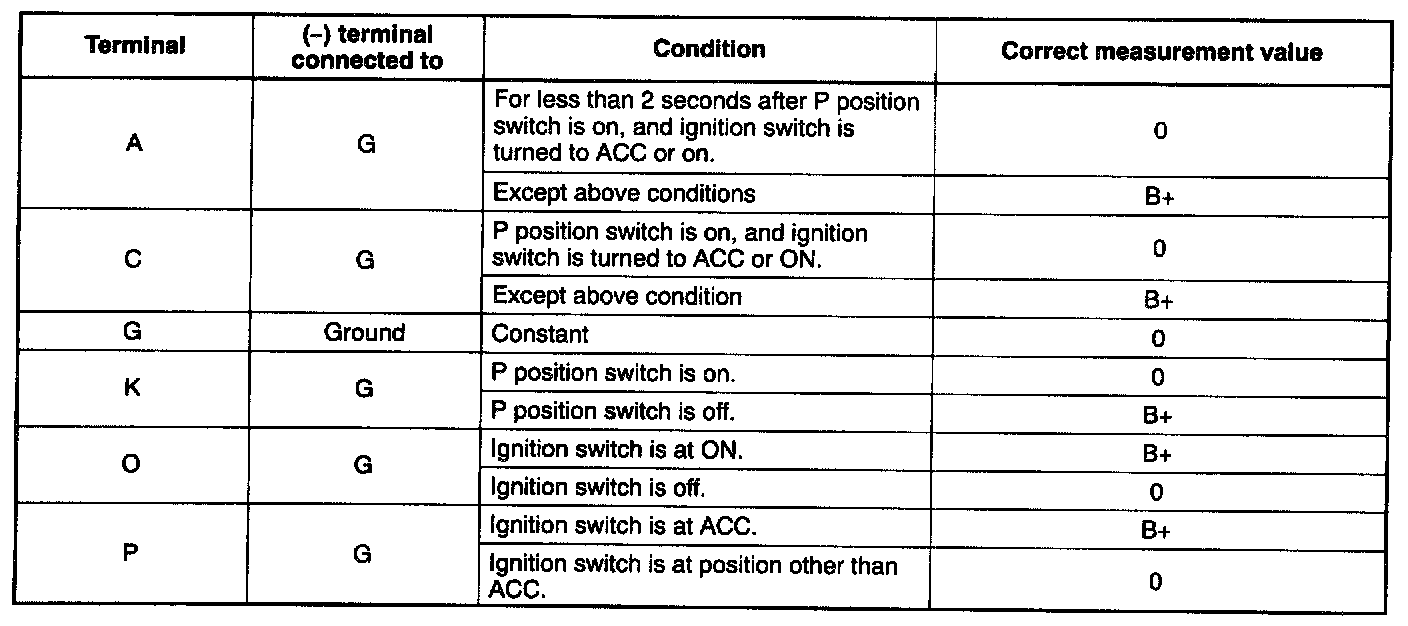

Turn the ignition switch to ON, and inspect terminal voltages, referring to the chart below.
-
If not as specified, repair the wiring harness and/or key interlock unit.
