Cruise Control Servo Cable: Adjustments
ACTUATOR CABLE ADJUSTMENT 1.
Turn the ignition switch to LOCK position.

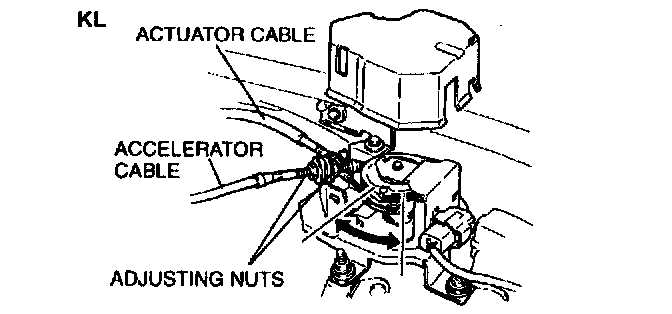

KL:

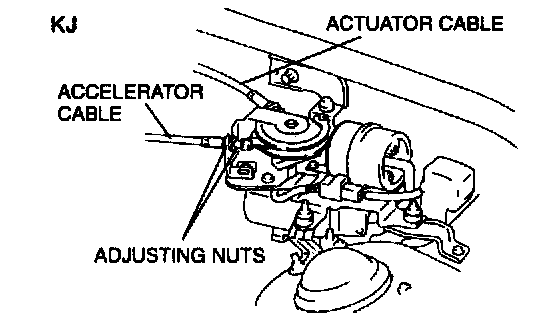

KJ:
2.
Adjust the accelerator cable adjusting nut to allow no play to the actuator link.
3.
Adjust the nut on the throttle body side so that when the actuator link moves
1 - 3 mm {0.04 - 0.11 in}, the throttle link starts to move.
