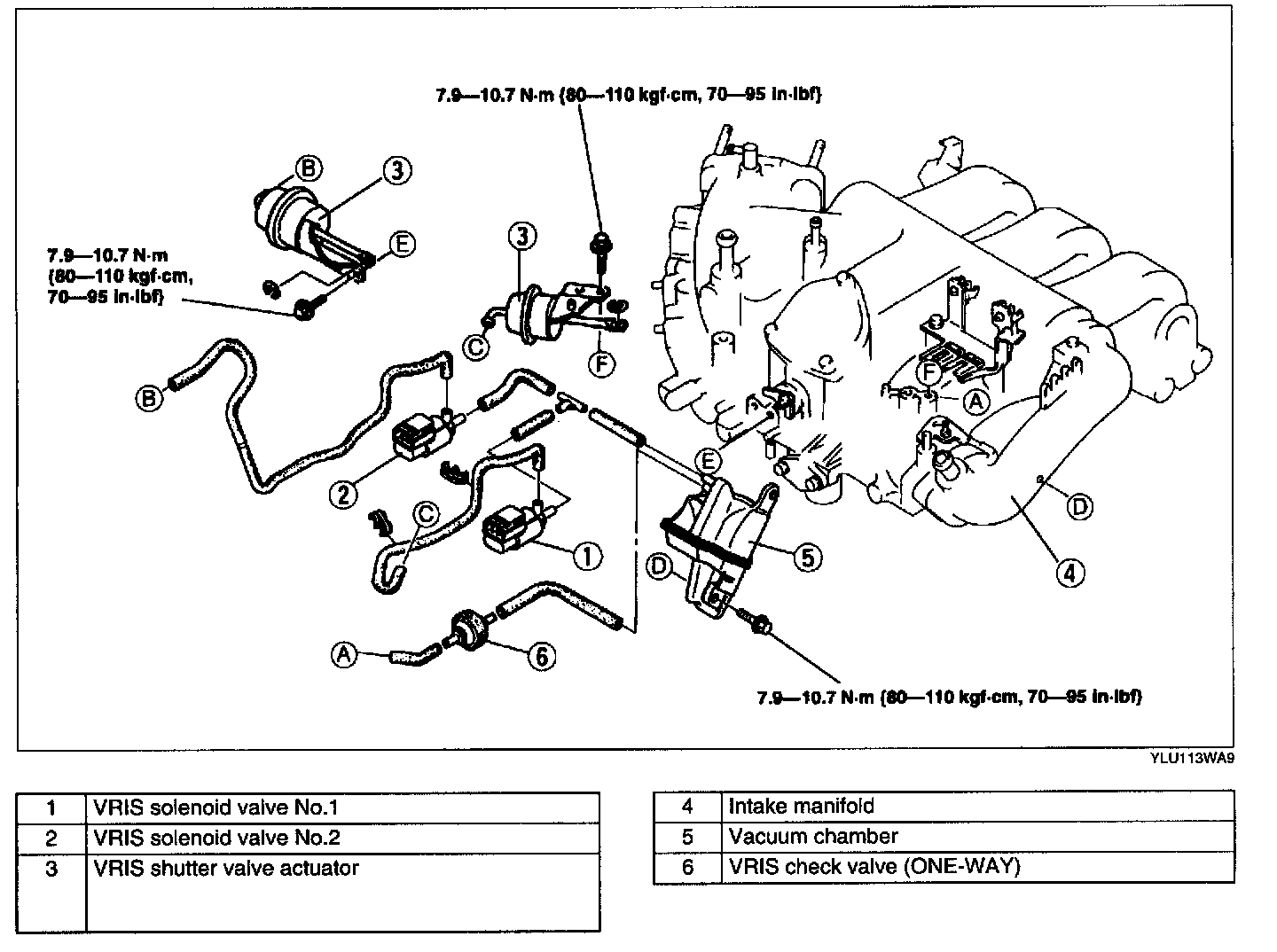

Intake Manifold Component Disassembly/Assembly
1.
Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
VRIS Shutter Valve Actuator Installation Note 1.
Inspect the operation of the VRIS shutter valve.
-
If it does not operate smoothly, replace the
intake manifold.
2.
Install the VRIS shutter valve actuator.
3.
Inspect the VRIS shutter valve actuator.
