Disassembly/Assembly

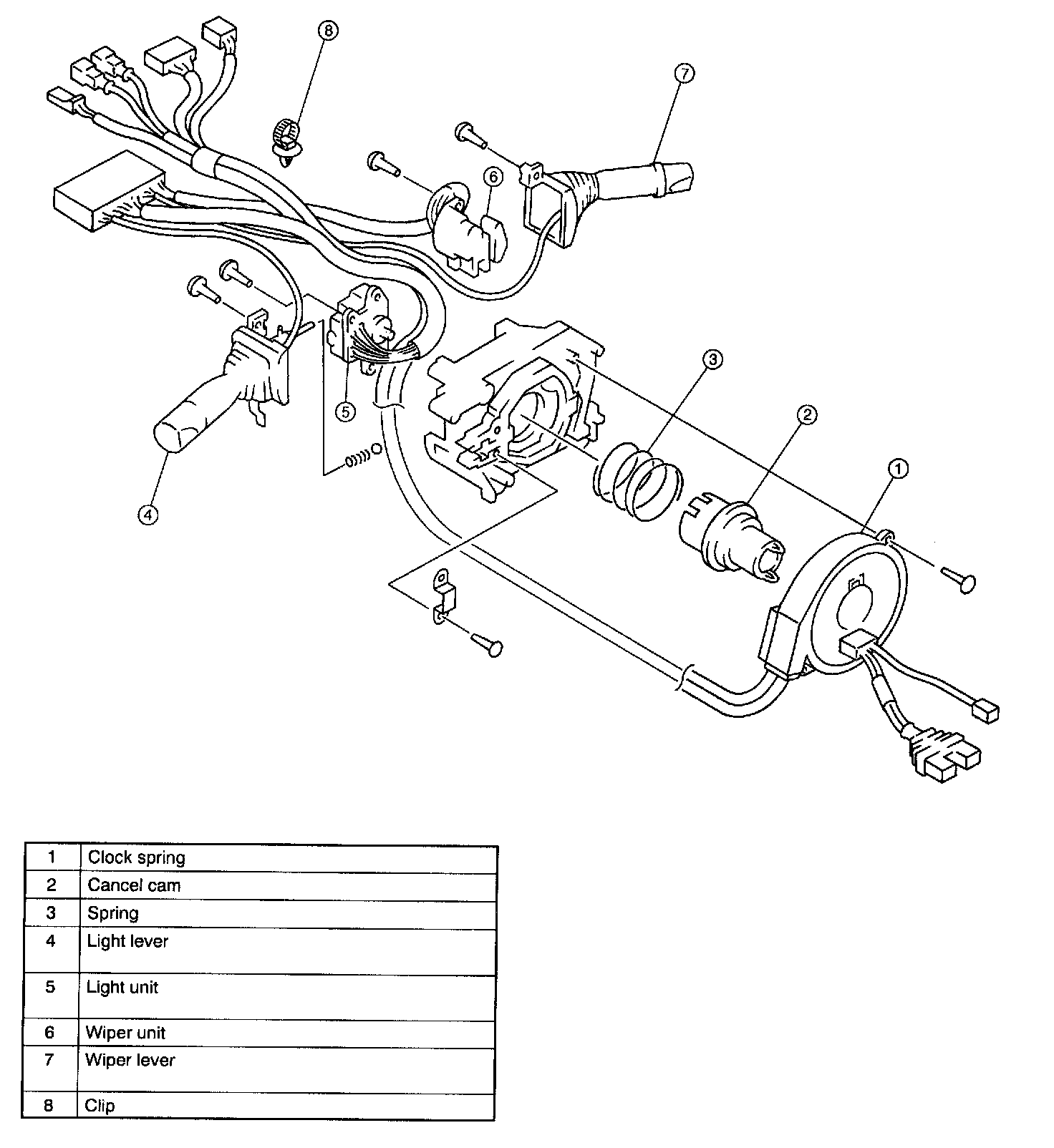

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

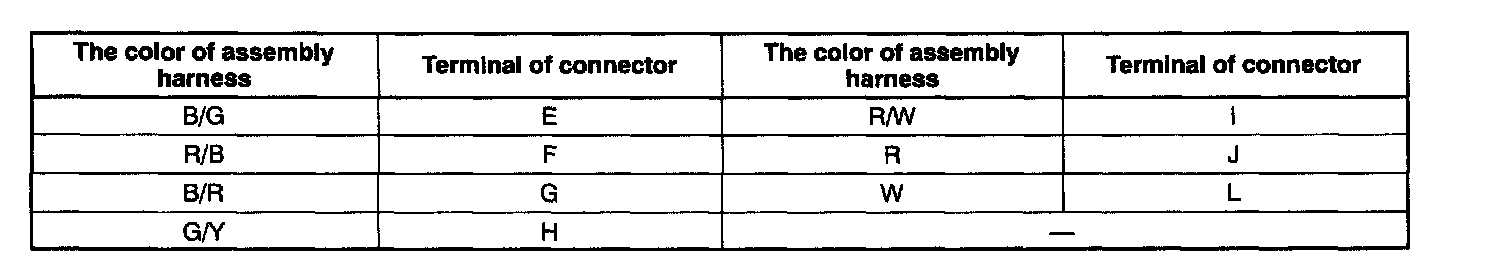

Light Lever Assembly Note




1. See the table and insert the proper harness terminal into the correct position in the connector.

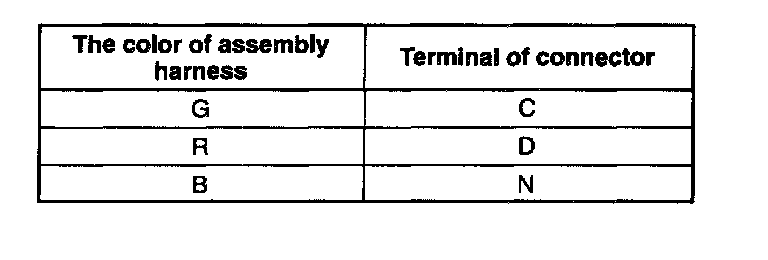

Light Unit Assembly Note




1. See the table and insert the proper harness terminal into the correct position in the connector.

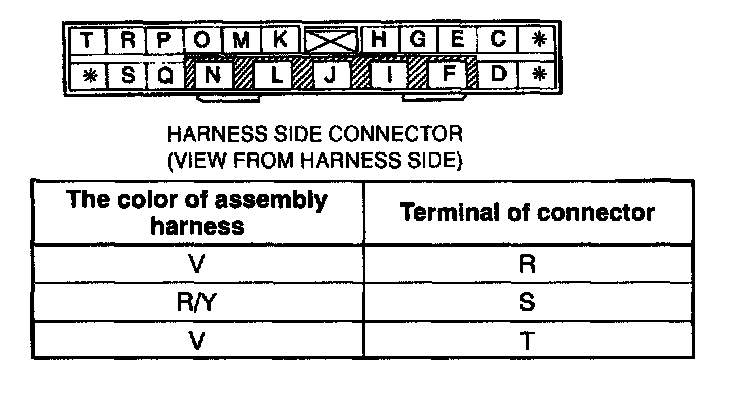

Wiper Lever Assembly Note

Connector View:




1. See the table and insert the proper harness terminal into the correct position in the connector.
