Idle Up Control Valve: Service and Repair

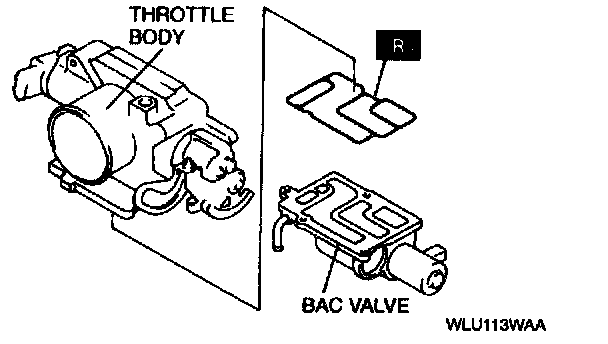

BAC VALVE REMOVAL/INSTALLATION [KL] 1.
Remove the
throttle body component.
2.
Remove the BAC valve.
Tightening torque:
2.9 - 4.0 Nm (29 - 41 kgf-cm, 26 - 35 inch lbs.) 3.
With a new gasket, install in the reverse order of removal.
