Variable Induction Control Valve: Testing and Inspection

VRIS SOLENOID VALVE INSPECTION [KL]
1. Remove the VRIS solenoid valves No.1 and No.2.

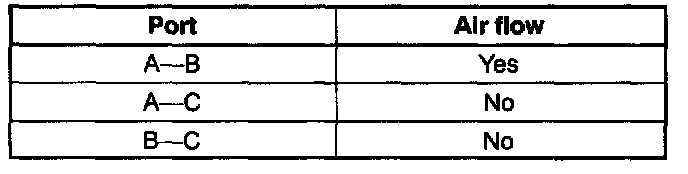

Specification

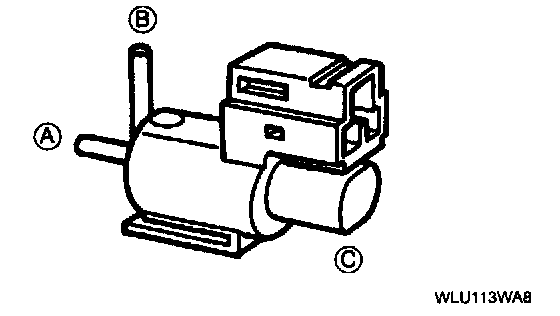

2. Verify that air flows as shown. If not as specified, replace the VRIS solenoid valves No.1 and No.2.

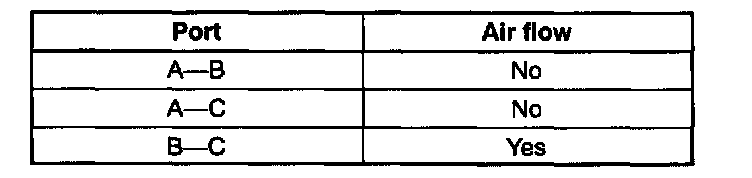

Specification

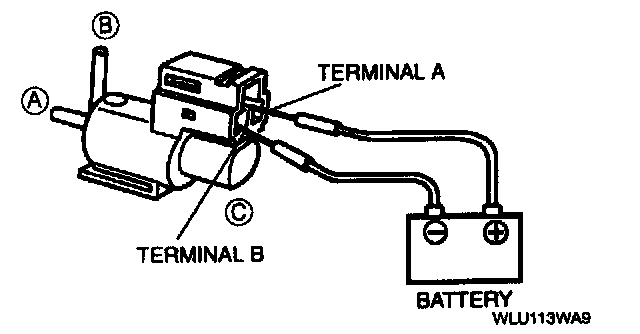

3. Apply battery positive voltage to terminal A and ground terminal B of the VRIS solenoid valves No.1 and No. 2. Verify that air flows as shown.
^ If not as specified, replace the VRIS solenoid valves No. 1 and/or No.2.
