Air Gap Inspection

NOTE: Perform the following test only when directed.

1. Verify that the CKP sensor is installed properly.

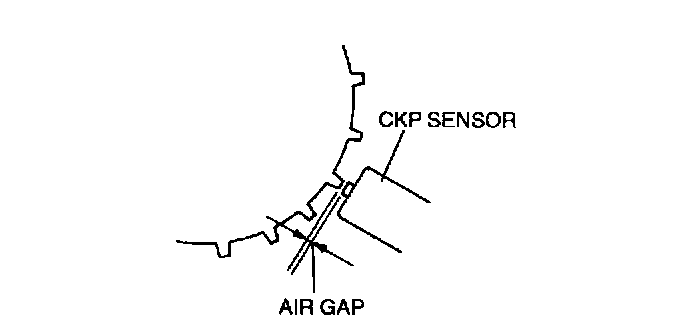

2. Measure the air gap between the crankshaft pulley teeth and the CKP sensor using a feeler gauge.
- If not as specified, replace the CKP sensor or inspect the crankshaft pulley teeth for being twisted and/or chipped.
- If any of the crankshaft pulley teeth is twisted and/or chipped, replace the crankshaft pulley.

Specification: 0.5 - 1.5 mm {0.020 - 0.059 in}
