Power Seat

WARNING: Handling the front seat (side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat.

1. Remove the side air bag module.

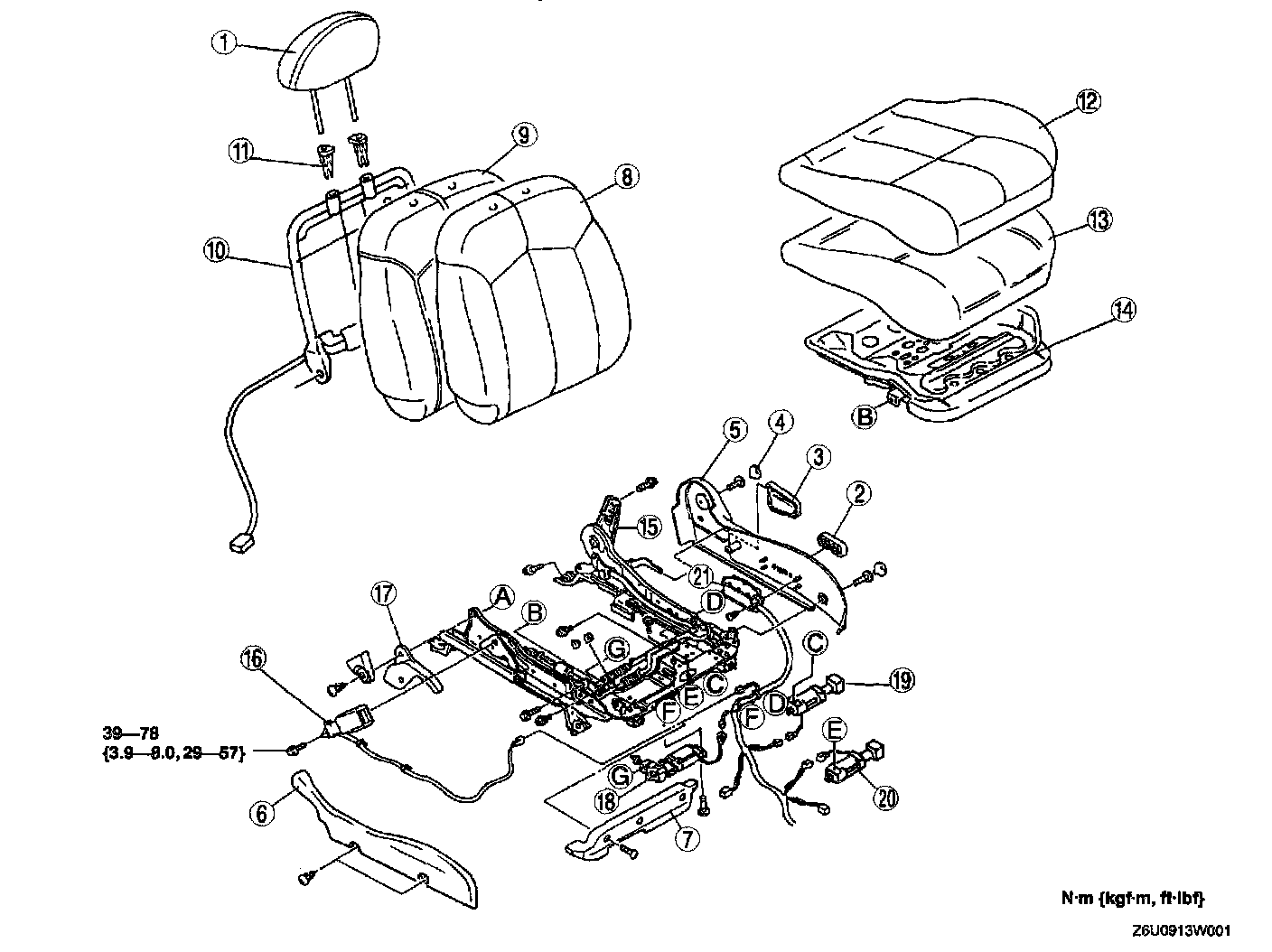

2. Disassemble in the order as indicated below.
1. Headrest
2. Power seat switch knob
3. Recliner lever
4. Cap
5. Knuckle cover
6. Side cover
7. Front cover
8. Seat back trim
9. Seat back pad
10. Seat back frame
11. Pole guide
12. Seat cushion trim
13. Seat cushion pad
14. Seat cushion frame
15. Slide adjuster
16. Buckle
17. Cover
18. Front tilt motor
19. Rear tilt motor
20. Slide motor
21. Power seat switch

3. Assemble in the reverse order of disassembly.
