Cruise Control Servo Cable: Service and Repair

CRUISE CONTROL ACTUATOR CABLE REMOVAL / INSTALLATION

1. Remove the accelerator control splash shield.

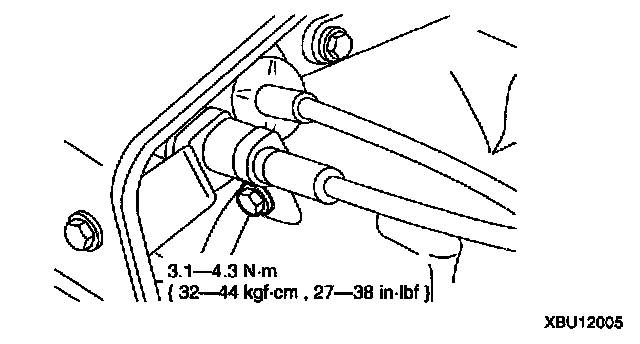

2. Remove the cruise control actuator cable bolt (2.5L and 3.0L).

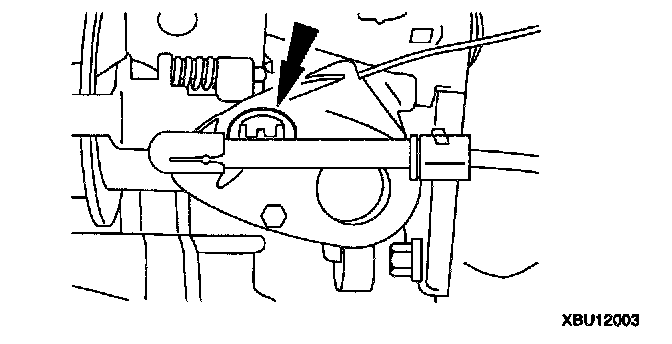

3. Remove the cruise control actuator cable clip.




4. Separate the actuator cable from the throttle body linkage.




5. Remove the cable from the servo.
1. Push the locking arm on the cruise control cable cap then rotate the cap counterclockwise.




6. Remove the cruise control cable.

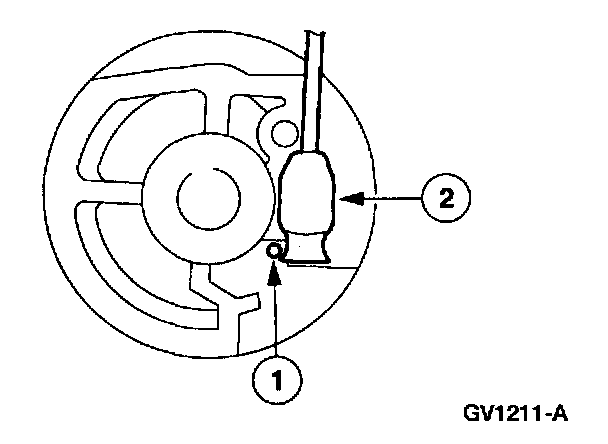

1. Depress the spring retainer.
2. Slide the core wire end out of the cruise control servo pulley and remove the cruise control cable.

NOTE: Make sure the rubber seal is fully seated onto the cruise control cable cap.

7. To install, reverse the removal procedure.
