Antitheft and Alarm Systems

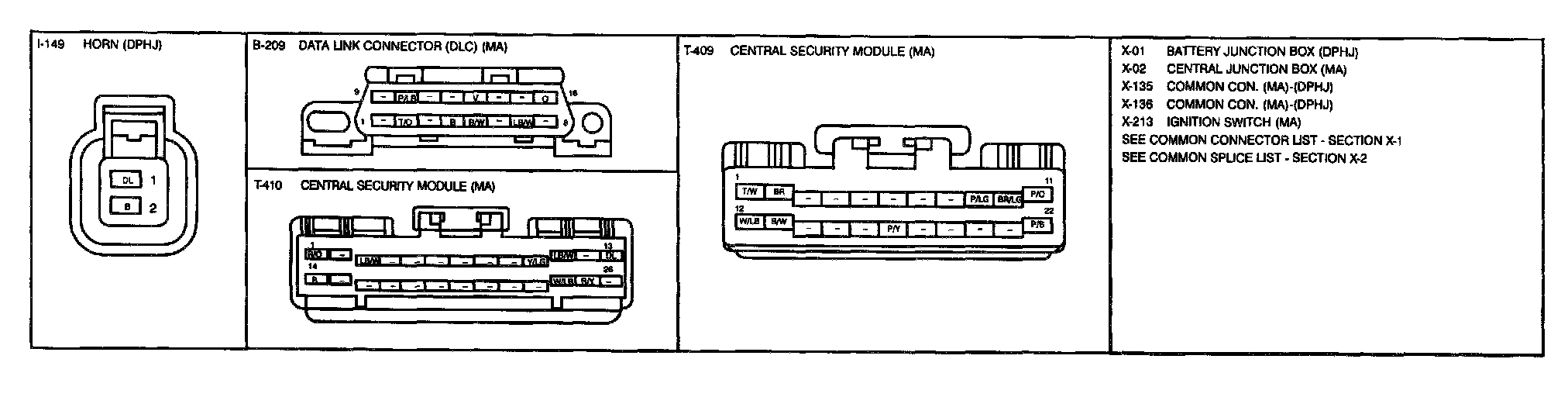

T-3a - Anti-Theft-Perimeter Connectors:

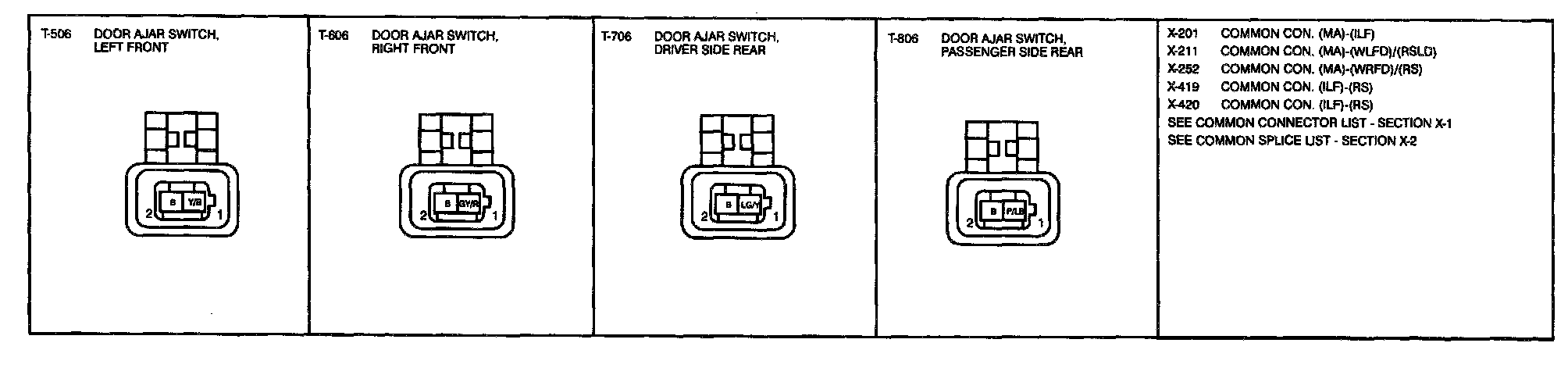

T-3b - Anti-Theft-Perimeter Connectors:
