System Diagram

AUTOMATIC TRANSMISSION COMPONENTS

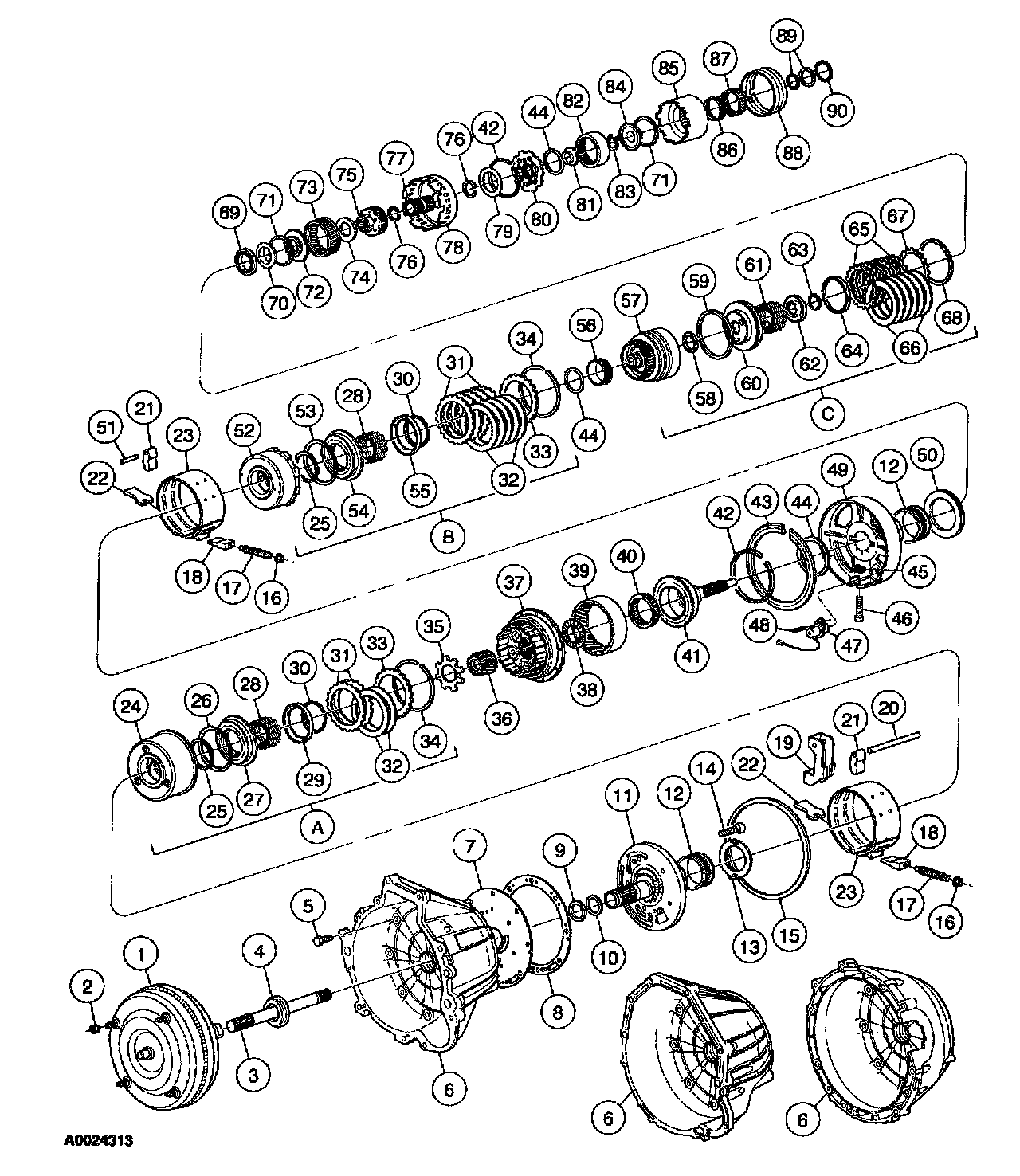

Disassembled View

1 of 2

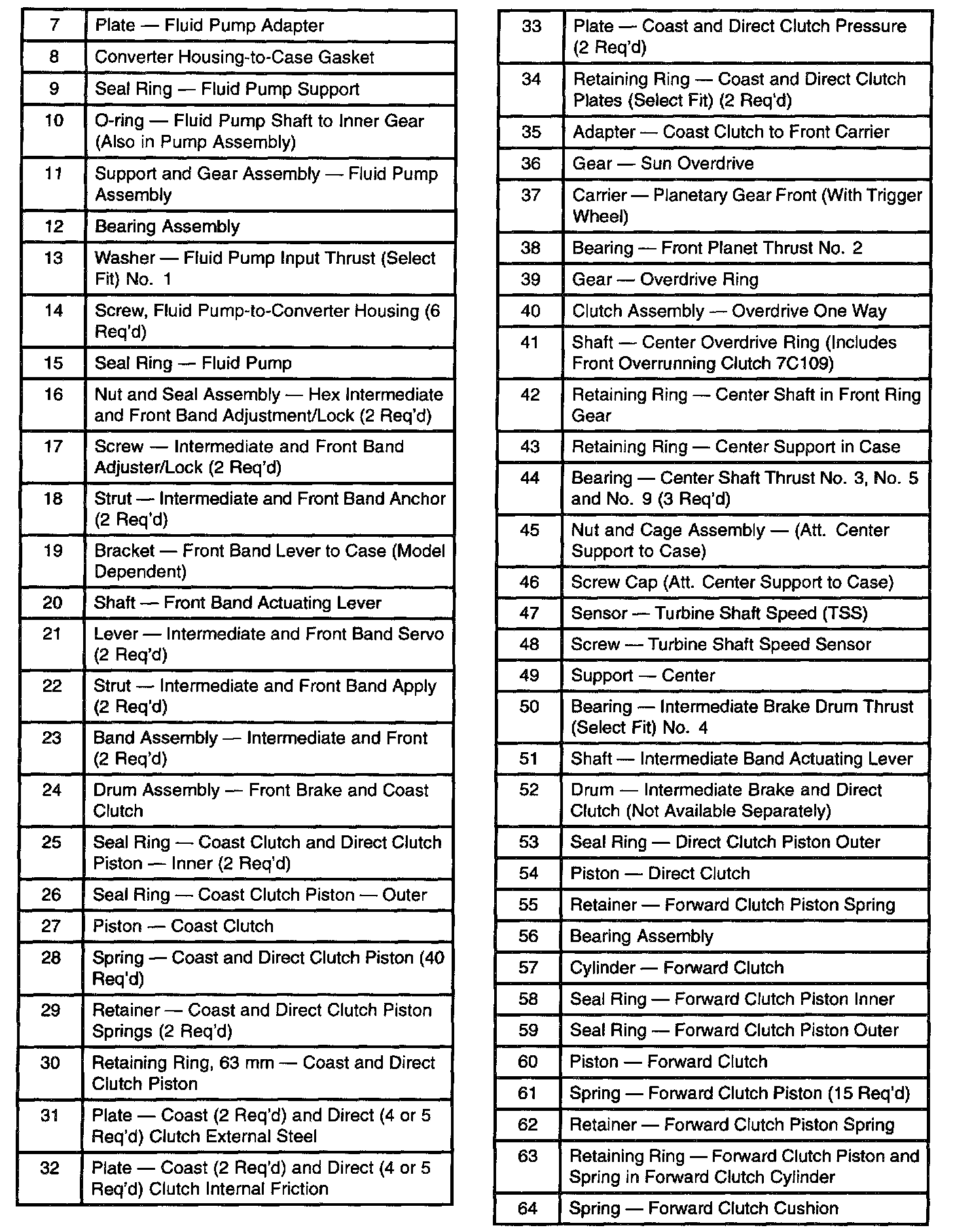

2 of 2 / Legend 1 - 6

Legend 7 - 64

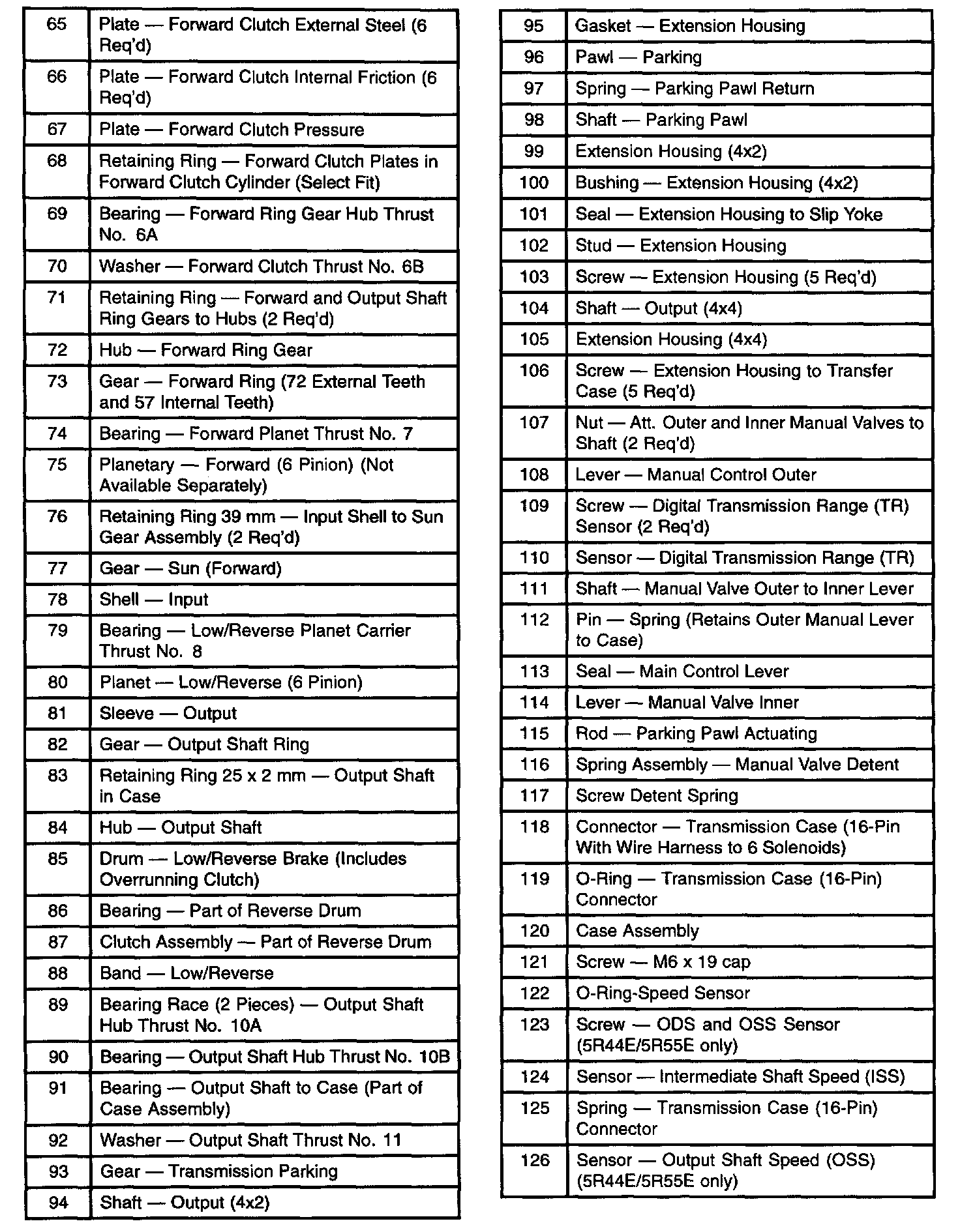

Legend 65 - 126

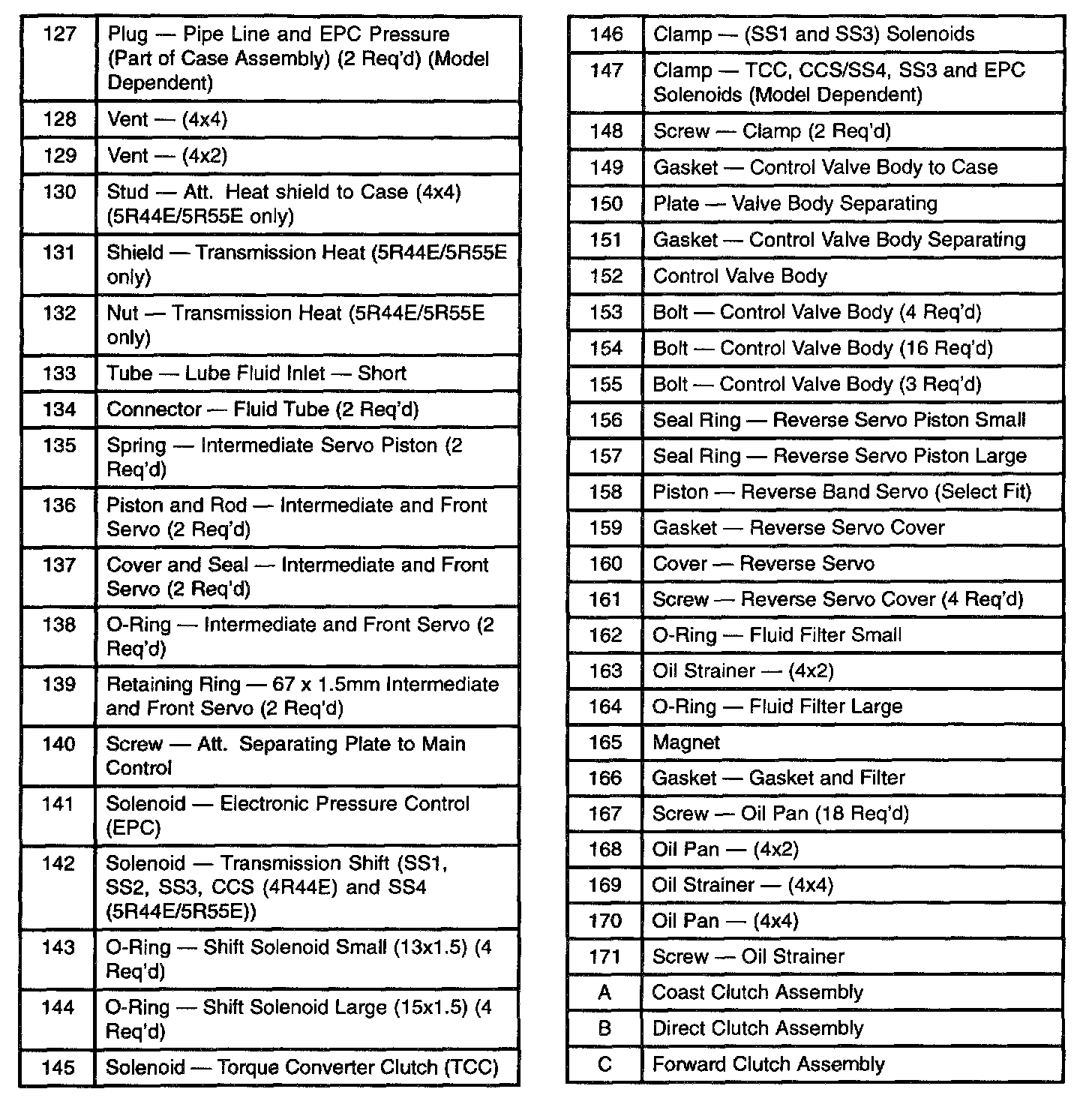

Legend 127 - 171 / A, B, & C

BUSHINGS, BEARINGS AND THRUST WASHERS LOCATOR

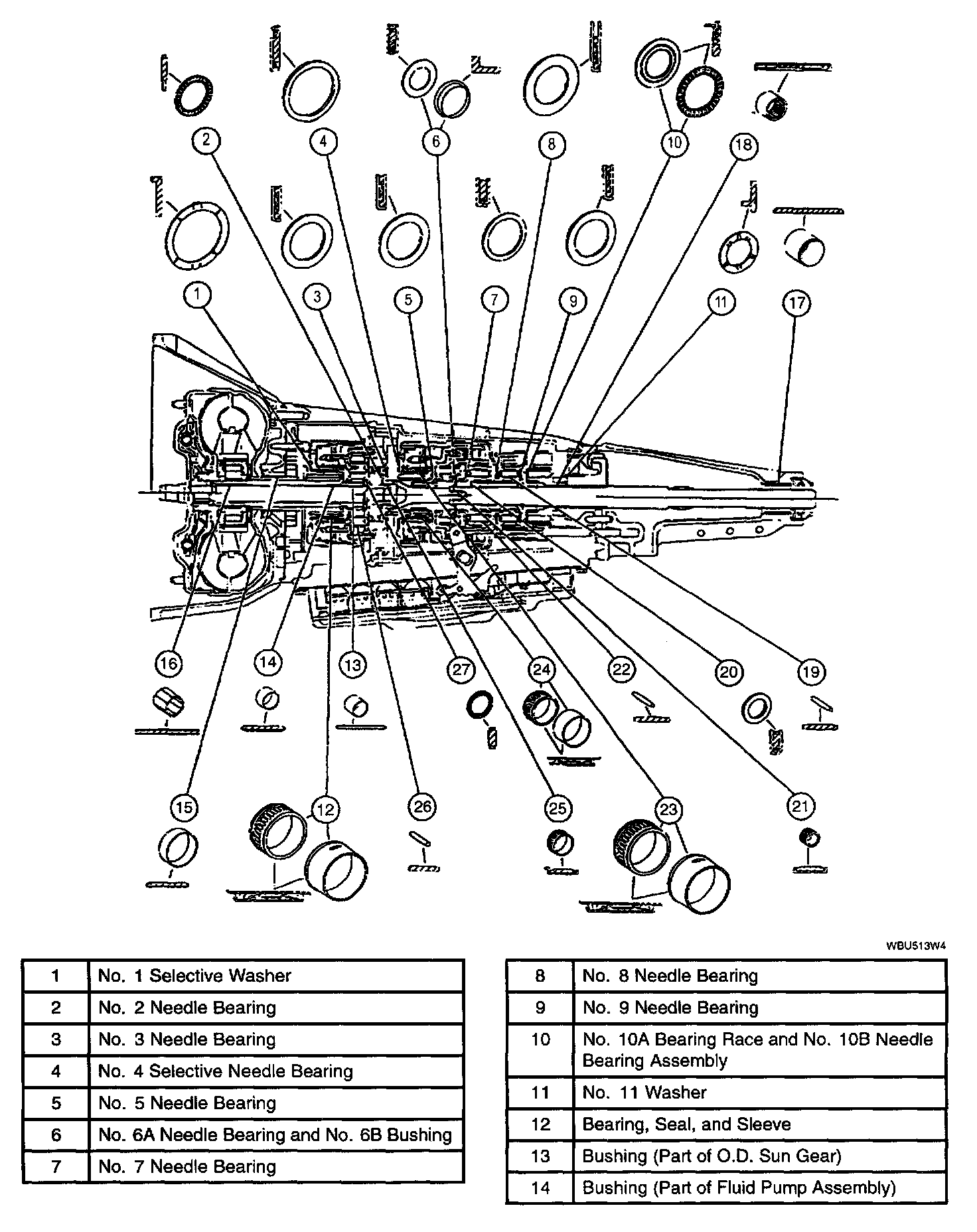

View & Legend 1 - 14

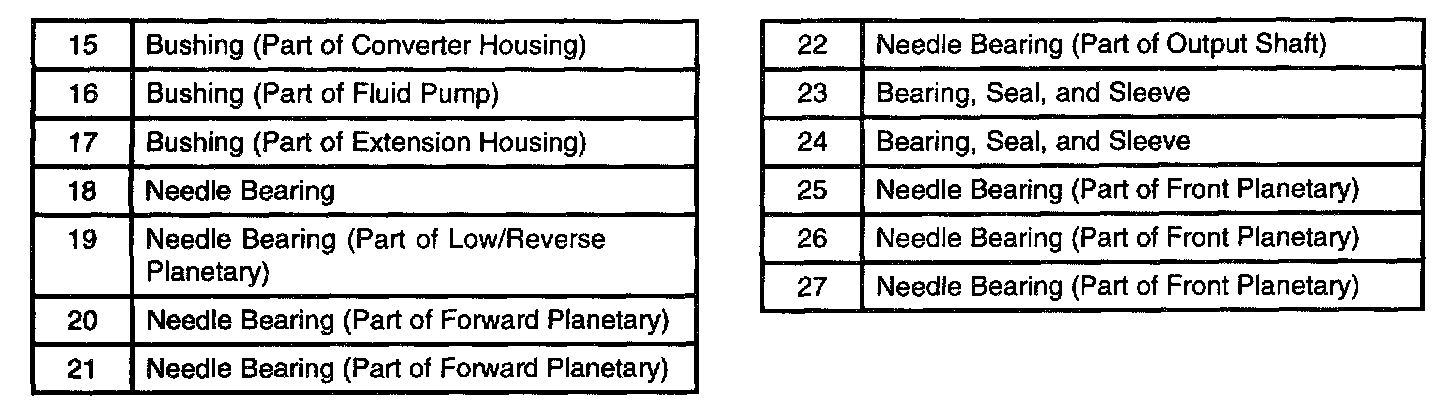

Legend 15 - 27

SEALS, RINGS AND GASKETS LOCATOR

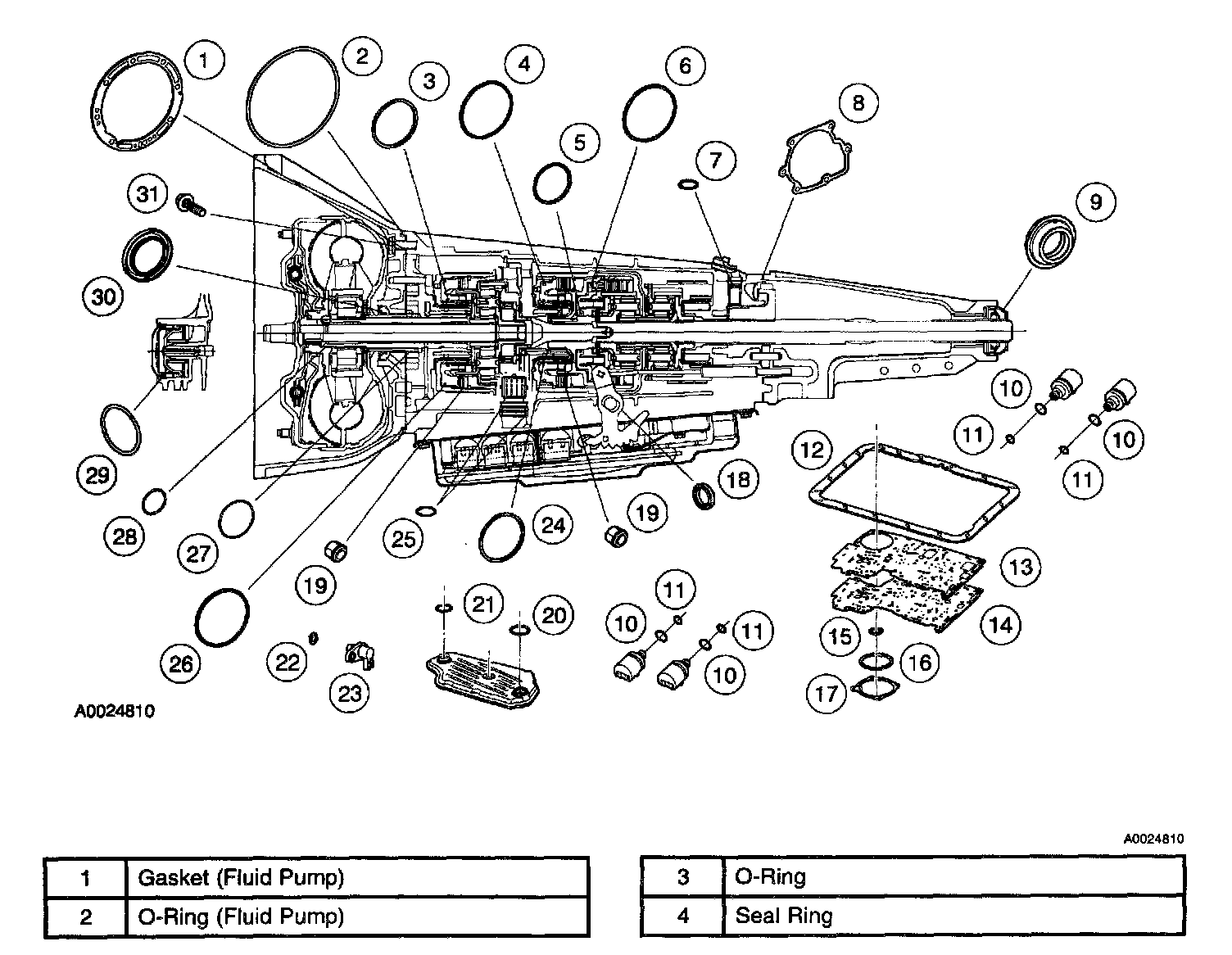

View & Legend 1 - 4

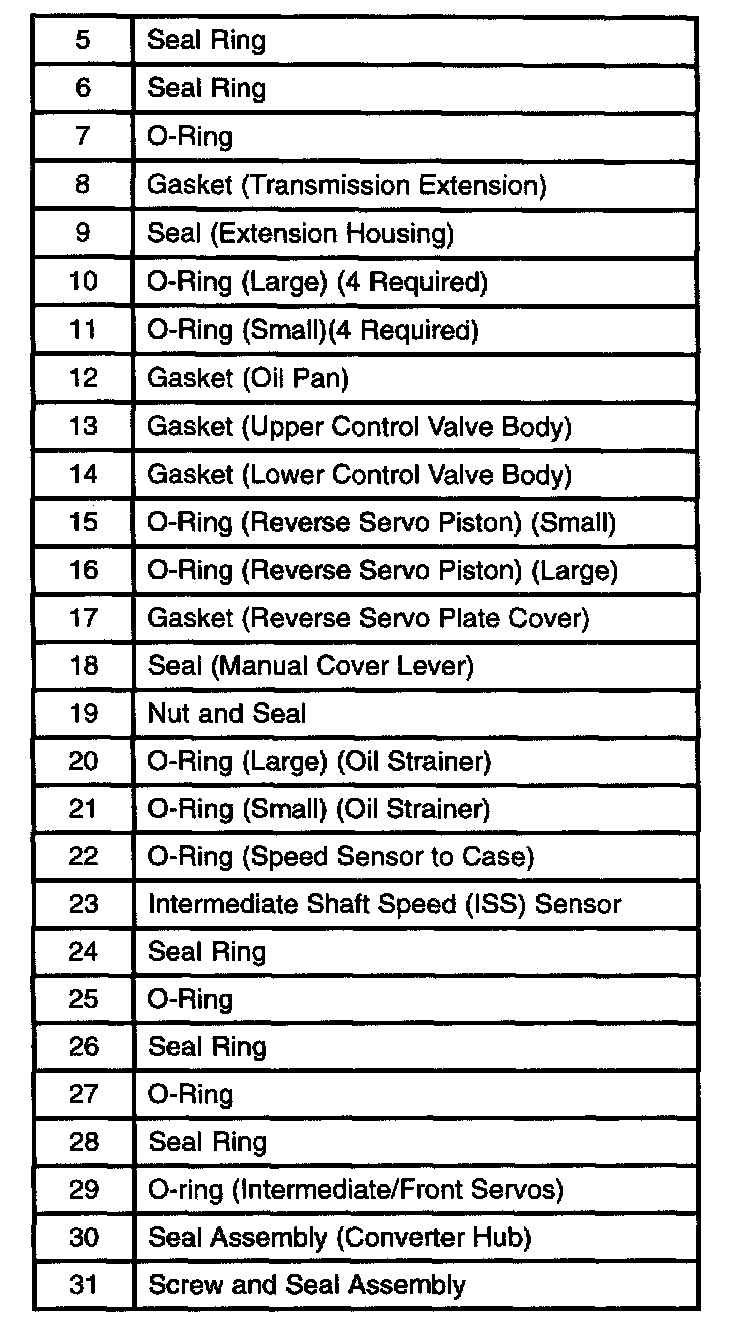

Legend 5 - 31
