Standard Rear Axle Structural View
Standard Rear Axle Structural View

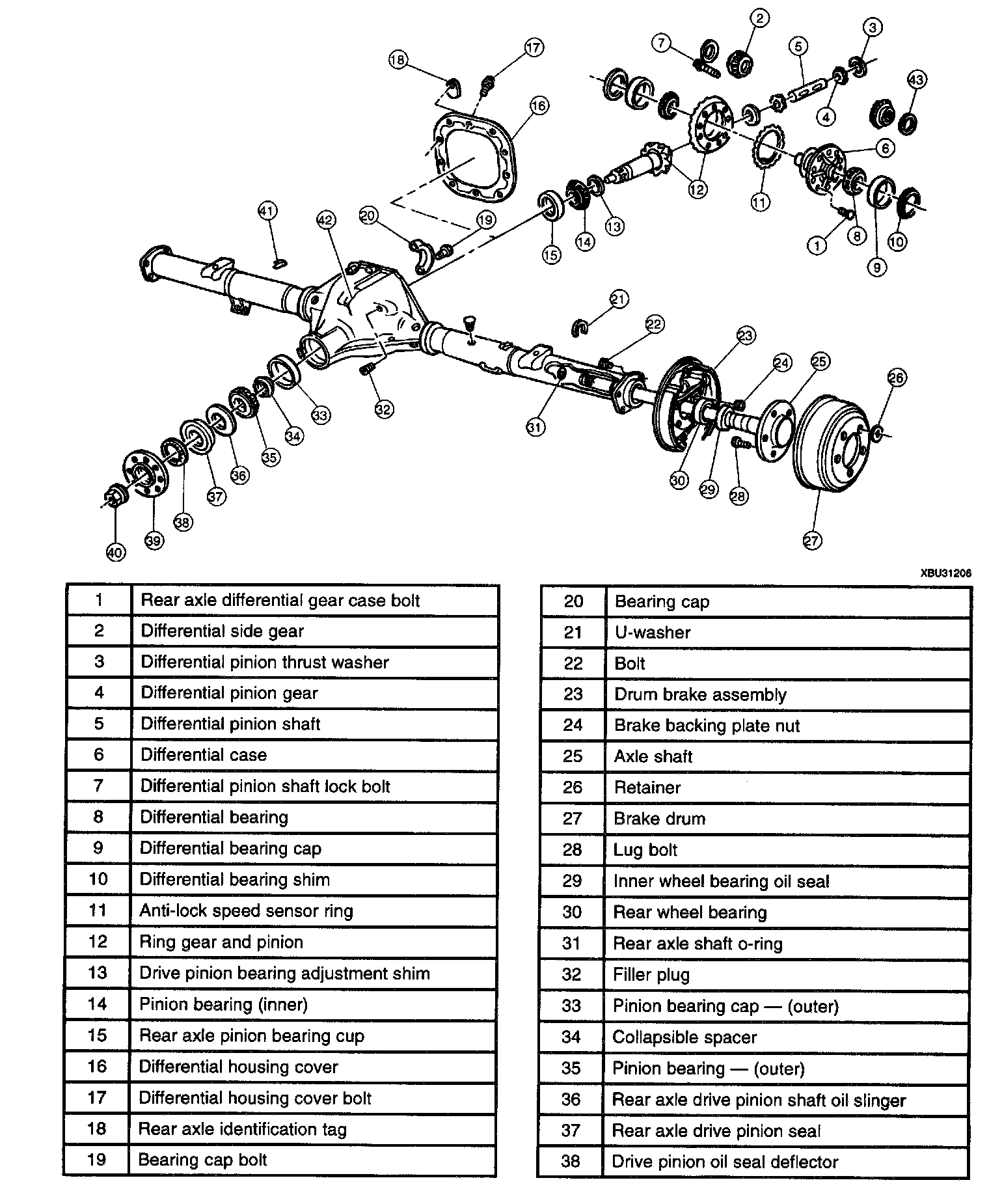

STANDARD REAR AXLE STRUCTURAL VIEW
1 of 3

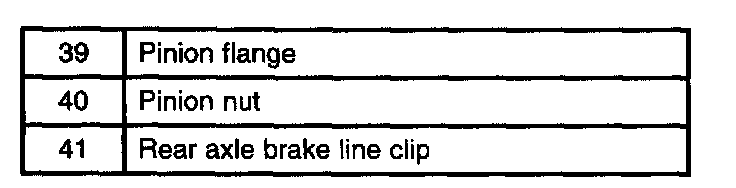

2 of 3

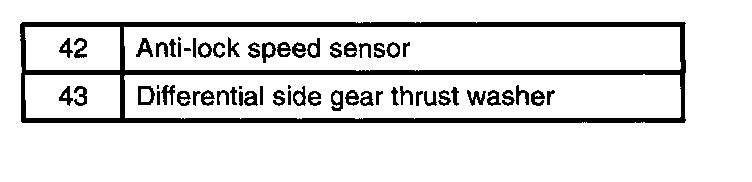

3 of 3
