Standard Rear Axle and Differential Structural View
Standard Rear Axle and Differential Structural View

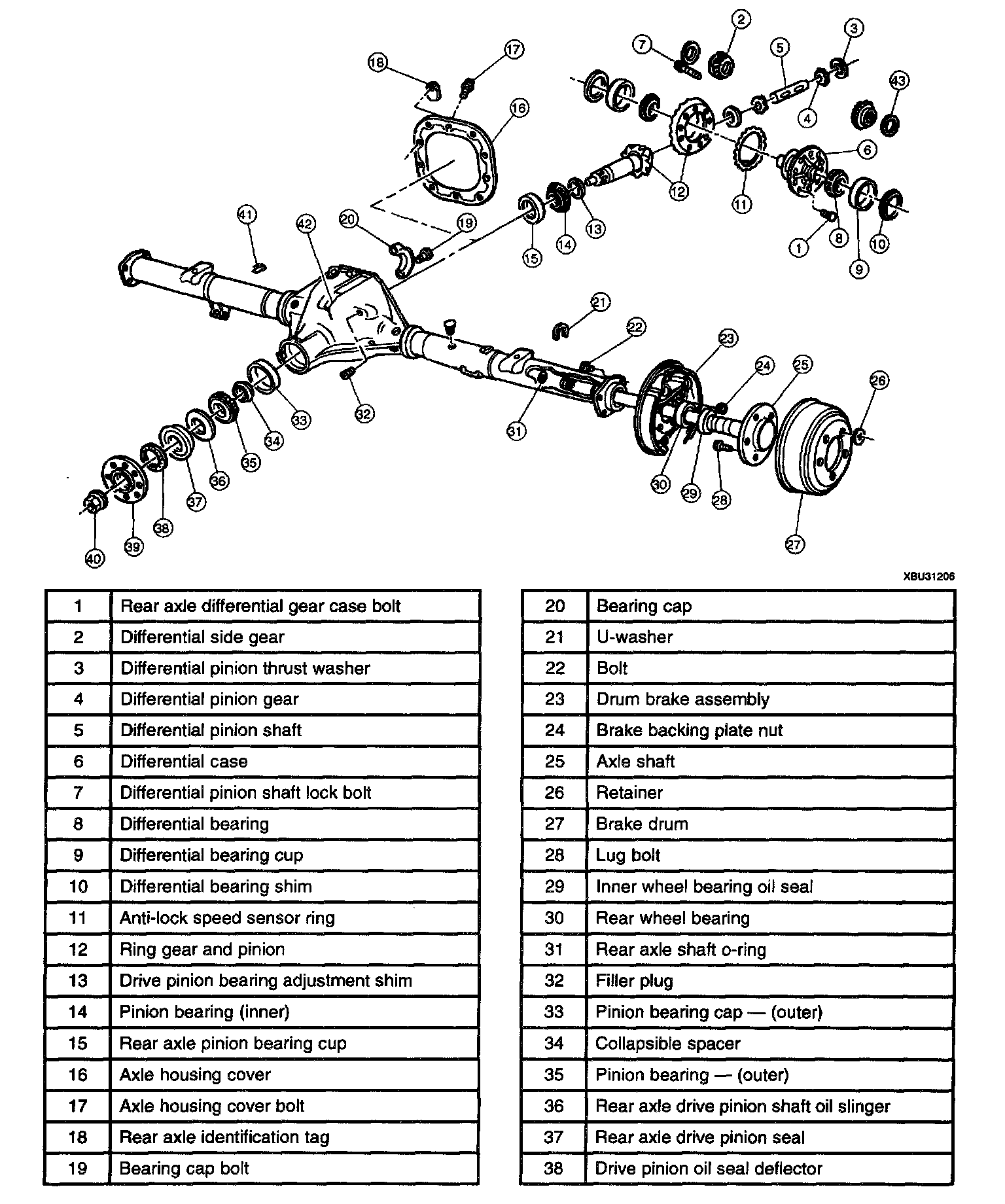

STANDARD REAR AXLE AND DIFFERENTIAL STRUCTURAL VIEW
1 of 3

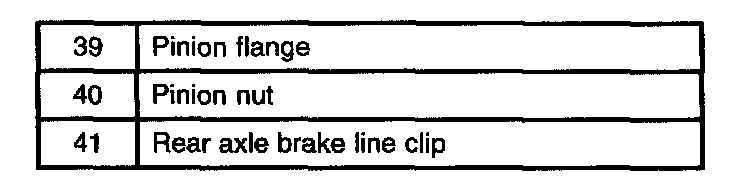

2 of 3

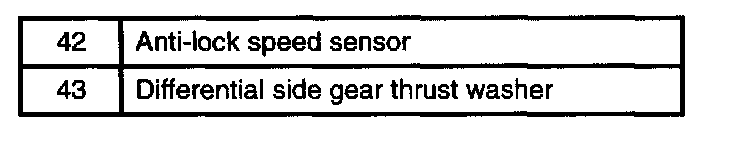

3 of 3
