Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2001
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Gear
Steering Gear

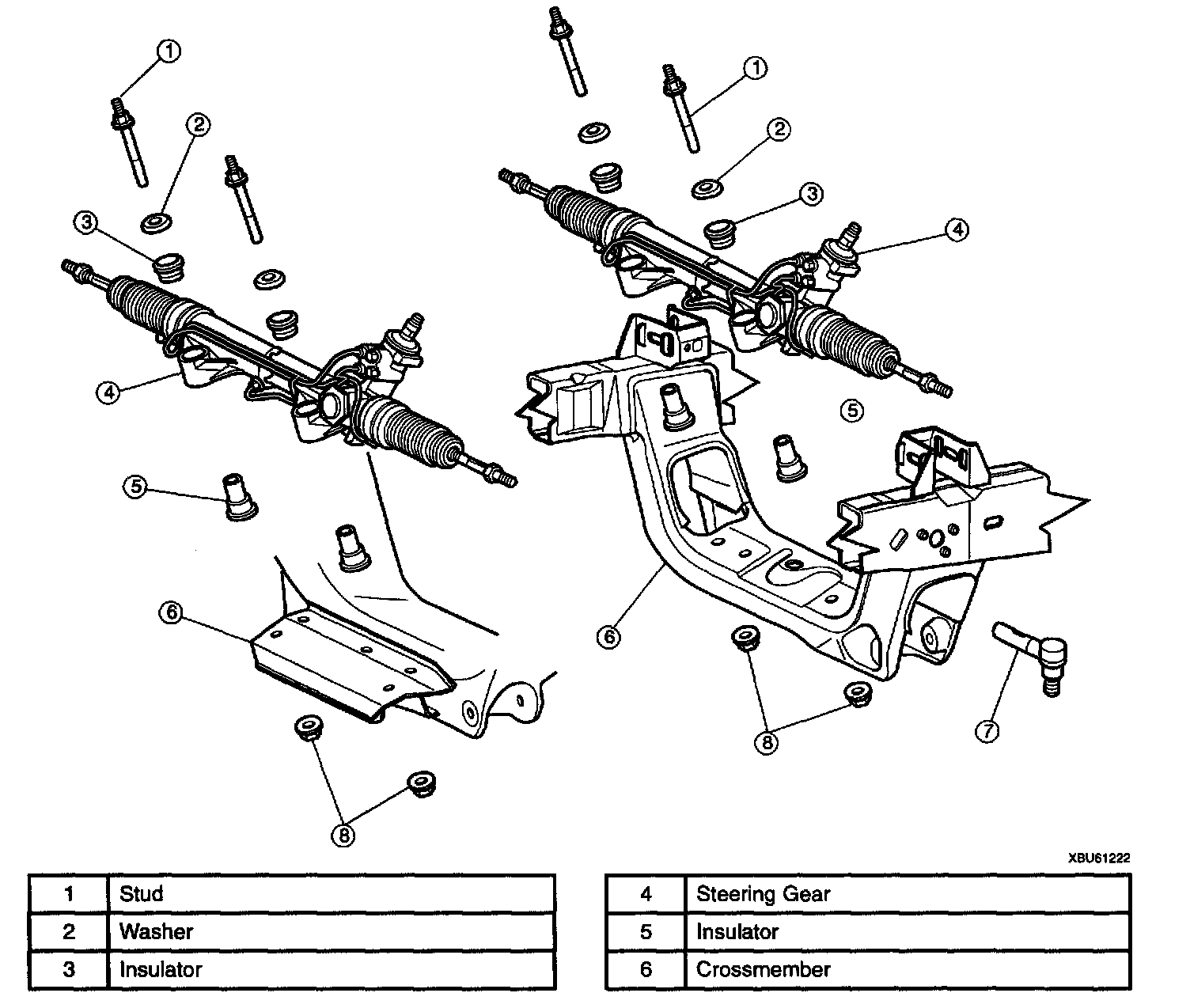

STEERING GEAR MOUNTING STRUCTURAL VIEW
Part 1 Of 2:

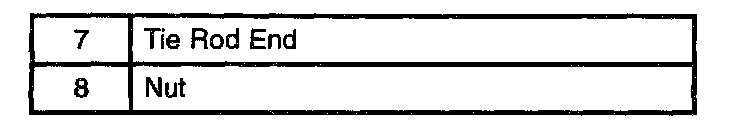

Part 2 Of 2:
Steering Gear Mounting-4x2/4x4
