Jacking Position

WARNING: Do not run the engine when lacking the vehicle. The wheels contacting the ground could cause the vehicle to move.

Make sure the jack and jack stands are properly located to prevent the vehicle from falling.

Wheel chocks should be used to prevent the vehicle from rolling and falling off the jack.

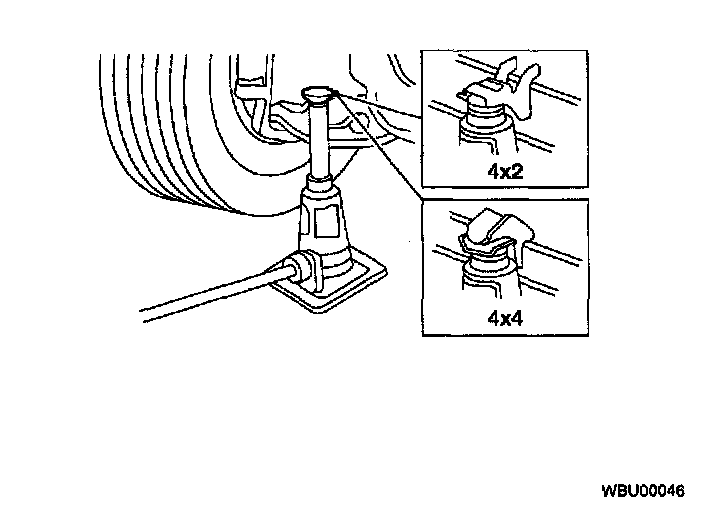

Jacking Points - Front
The jacking point is a tab that extends from the front suspension lower control arm.

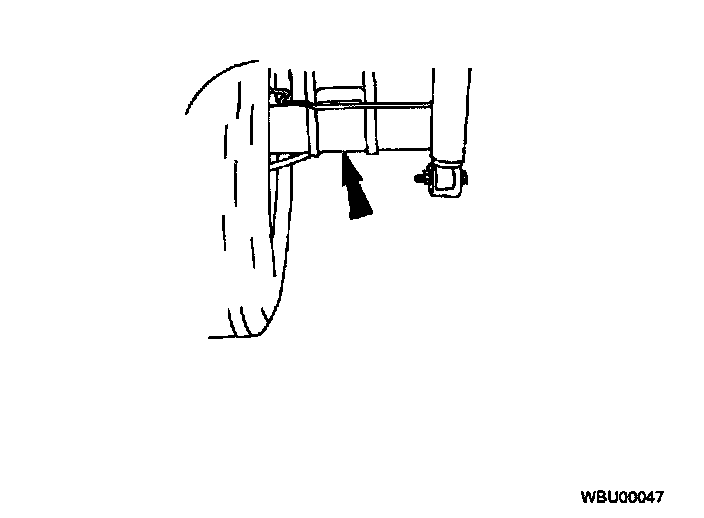

Jacking Points - Rear
The rear jacking points are located on the rear axle.
