Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EGR (DPFE) SENSOR REMOVAL / INSTALLATION

1. Disconnect the negative battery cable.

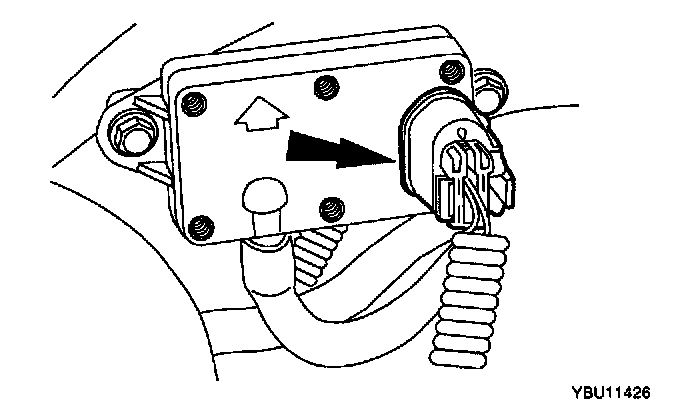

2. Disconnect the DPFE sensor connector.




3. Disconnect the hoses.

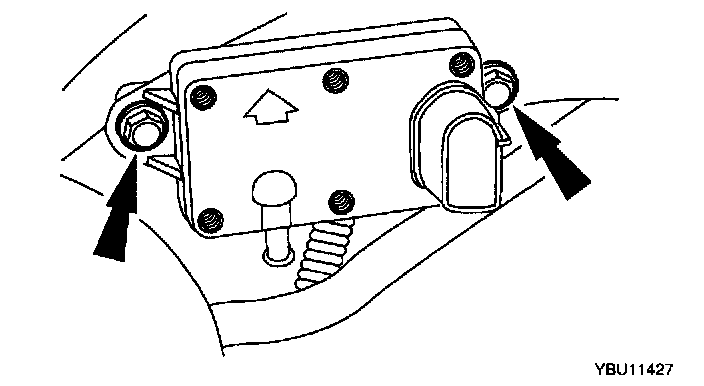

4. Remove the bolts.
5. Remove the DPFE sensor.
6. Install in reverse order of removal.
