Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2001
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test 5: Fuel Delivery System
Test 5: Fuel Delivery System

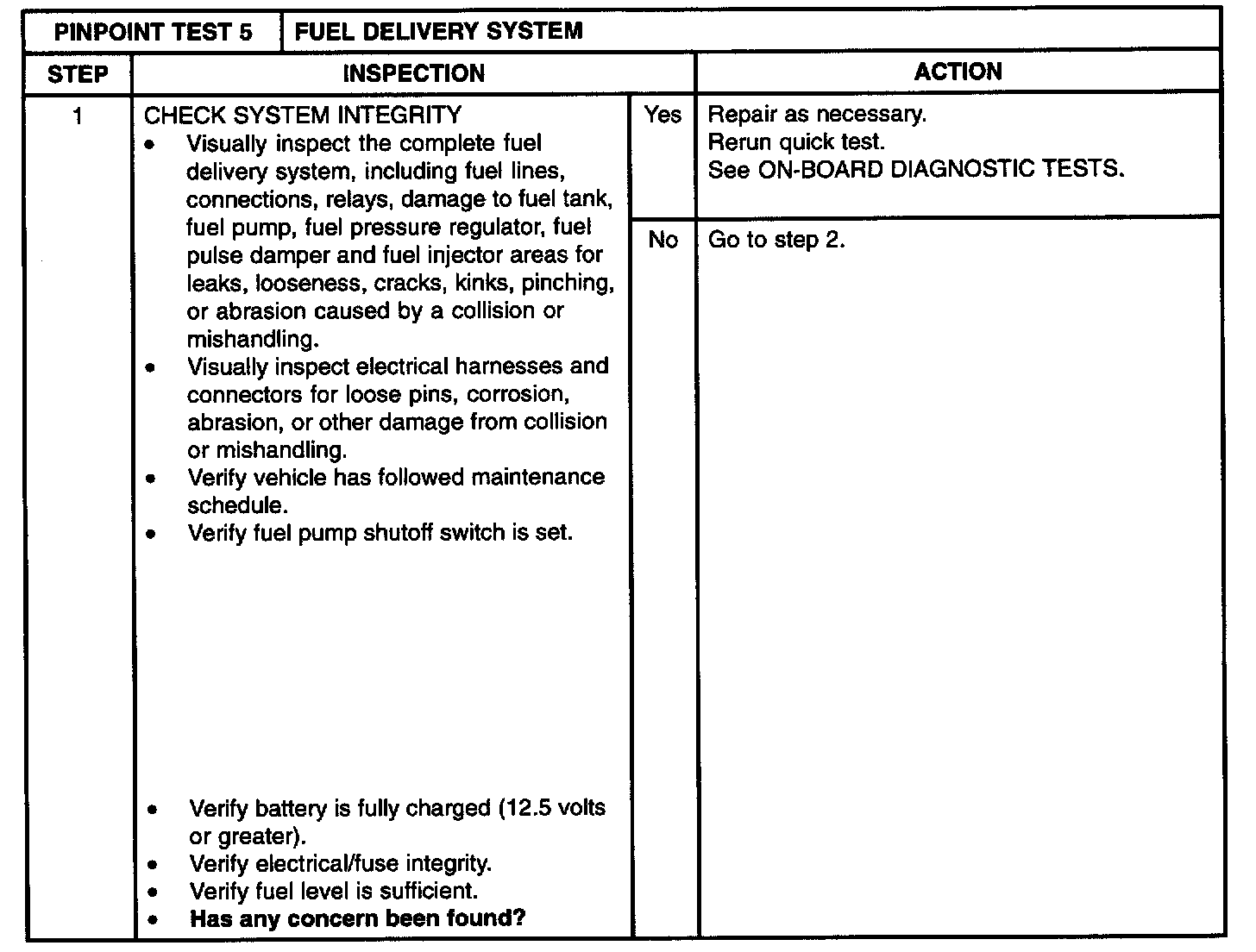

Step 1:

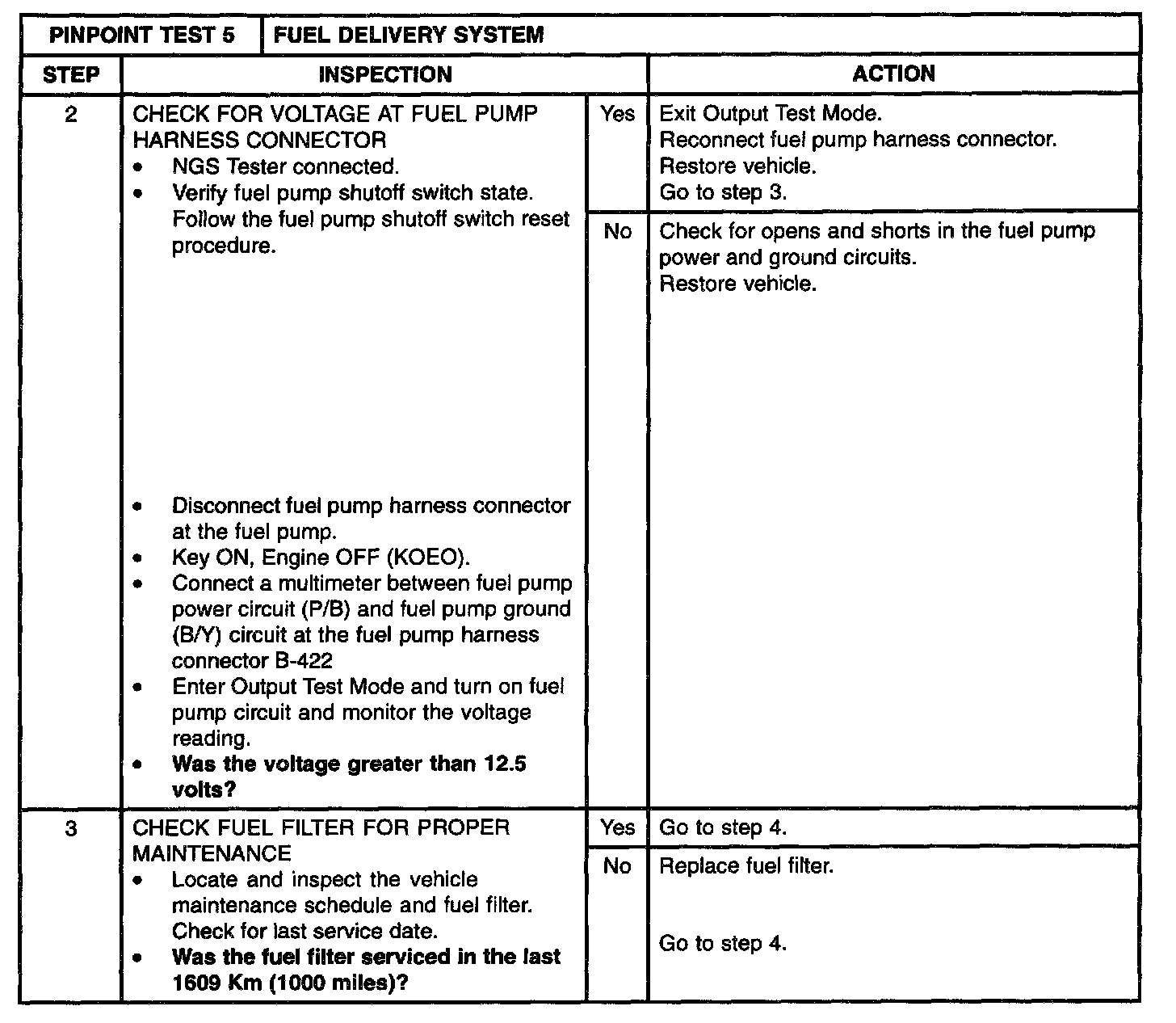

Step 2 - 3:

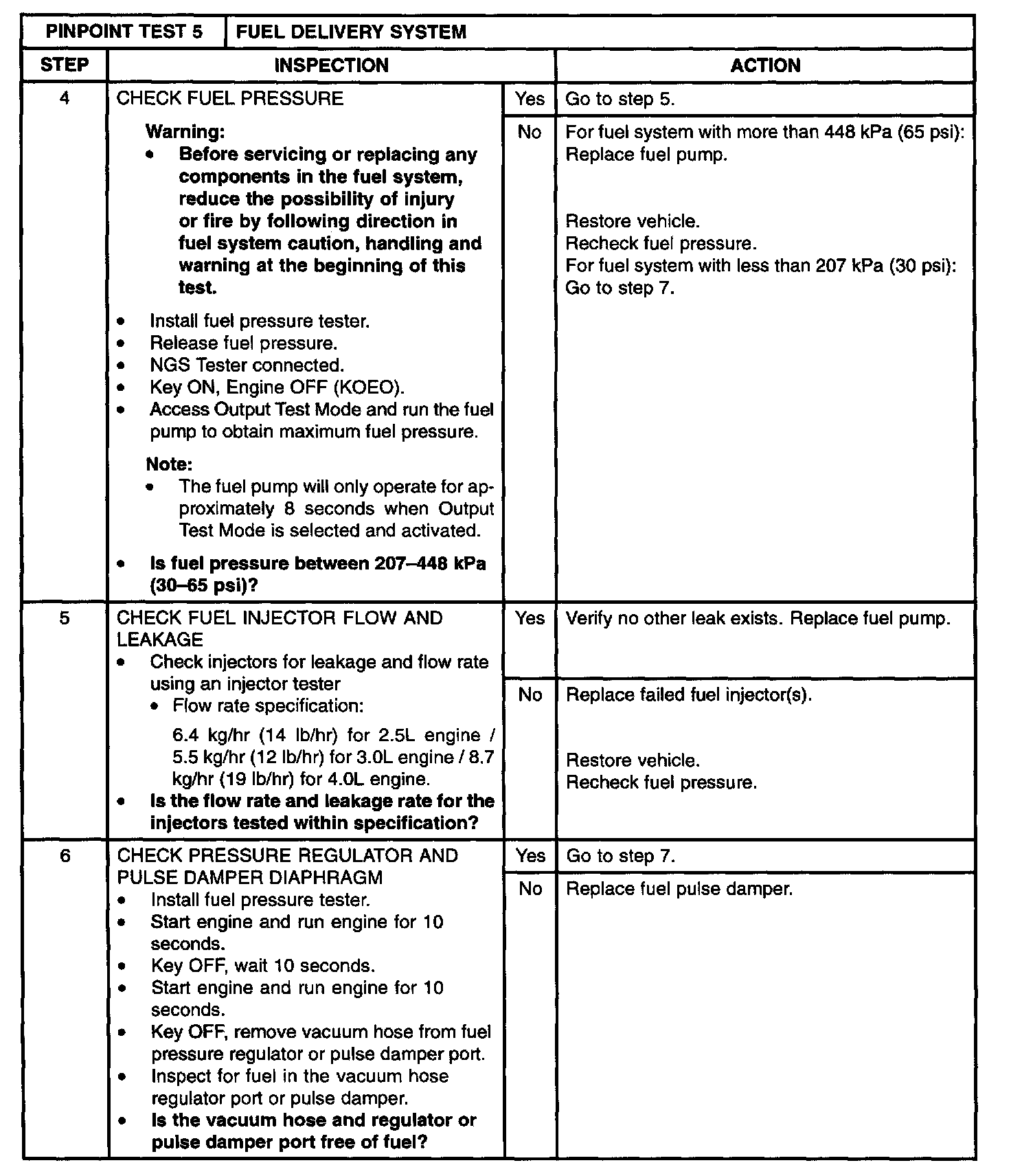

Step 4 - 6:

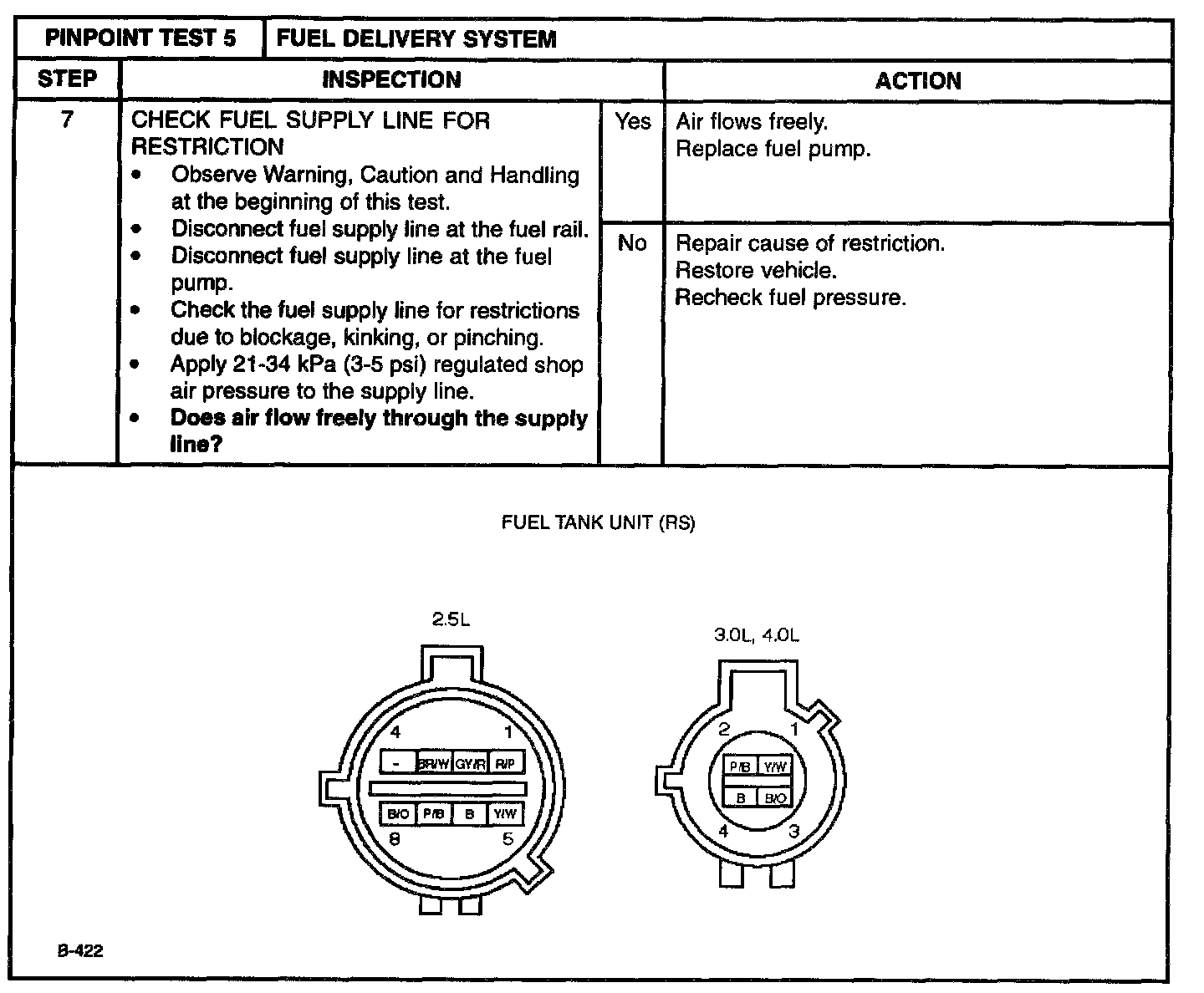

Step 7:
