Synchronizer Disassembly/Assembly

Disassembly/Assembly

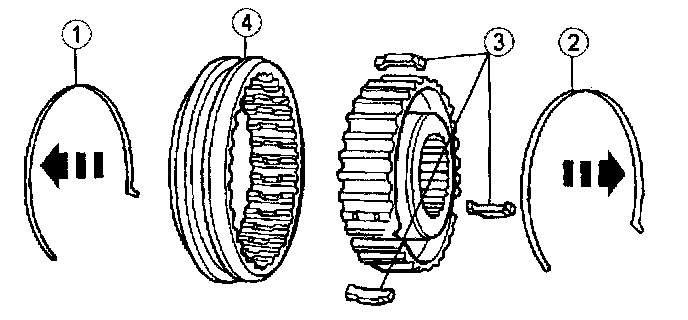

1. Disassemble the synchronizer.
1) Remove one snap spring.
2) Flip the synchronizer over and remove the opposite snap spring.
3) Remove the three insert keys.
4) Remove the sleeve.

Note:
- Mark parts for assembly.

2. Inspect all the synchronizer components for wear and damage,
3. Assemble the synchronizer in reverse order of disassembly.

Note:
- Match the marked parts for assembly.
